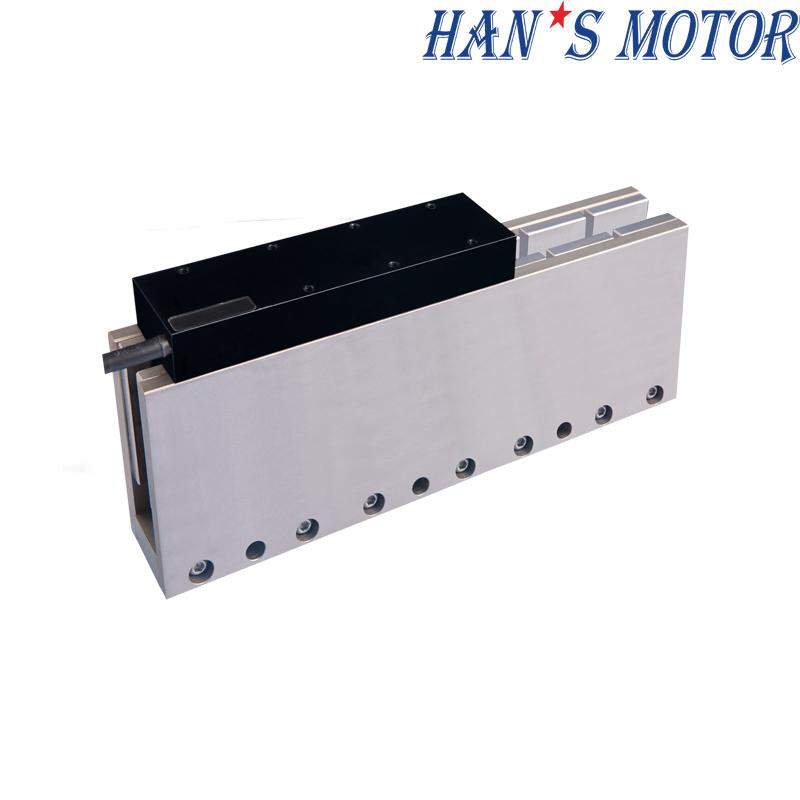

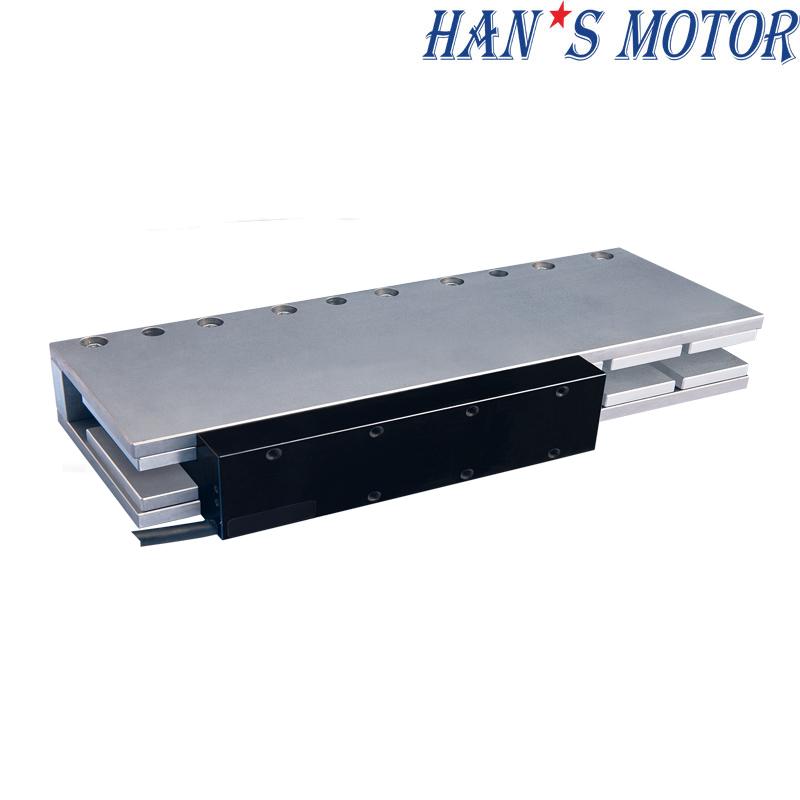

High-Speed U-Channel Linear Motor
This U-shaped high-speed ironless linear motor delivers strong force with an economical price point. It supports fast acceleration and smooth travel, making it ideal for cost-sensitive automation applications. The coreless design eliminates cogging and extends service life. Suitable for diverse industrial motion control tasks requiring dynamic performance.
Brand:
Order(MOQ):
1
Product Detail
Ironless Motors
In contrast to iron core linear motors, these motors feature an ironless coil unit, so there is no attraction force or cogging between the coil unit and the magnet track. This is what gives ironless linear motors their light weight, superior precision, a linear force constant and extremely dynamic velocity, acceleration and deceleration. Continuous force ranges from 10N all the way up to 3.0N with peak force of up to 5300N.
Specifications
| Mover Spec: LSMU610xxxx-x-H-NC-N-D00.5 | 101A-S | 201B-S | 201B- P | 301A-S | 301A- P | 401A-S | 401A- P | 501A-S | 501A- P | 601A- S | 601A-P | 801A- S | 801A- P | ||
| Performance Parameters | Symbol | Unit | Series | Series | Parallel | Series | Parallel | Series | Parallel | Series | Parallel | Series | Parallel | Series | Parallel |
| Continuous Force (Tmax） | Fc | N | 110 | 221 | 221 | 331 | 332 | 442 | 442 | 552 | 552 | 662 | 662 | 883 | 883 |
| Peak Force | Fp | N | 660 | 1326 | 1326 | 1988 | 1989 | 2649 | 2649 | 3311 | 3309 | 3972 | 3972 | 5300 | 5300 |
| Motor Constant | Km25 | N//Sqrt (W) | 16.1 | 22.8 | 23.3 | 27.9 | 28.5 | 32.2 | 32.9 | 36.2 | 36.8 | 39.7 | 40.0 | 45.9 | 46.6 |
| Max.Continuous Power Dissipation | Pc | W | 64 | 129 | 124 | 193 | 185 | 257 | 247 | 319 | 309 | 382 | 376 | 508 | 494 |
| Continuous Current (Tmax） | Ic | Arms | 2.5 | 2.5 | 5.0 | 2.5 | 5.0 | 2.5 | 5.0 | 2.5 | 5.0 | 2.5 | 5.0 | 2.5 | 5.0 |
| Peak Current (1S) | Ip | Arms | 15.0 | 15.0 | 30.0 | 15.0 | 30.0 | 15.0 | 30.0 | 15.0 | 30.0 | 15.0 | 30.0 | 15.0 | 30.0 |
| Force Constant (25℃，±5%） | Kf | N/Arms | 44.0 | 88.4 | 44.2 | 132.5 | 66.3 | 176.6 | 88.3 | 220.7 | 110.3 | 264.8 | 132.4 | 353.3 | 176.7 |
| Back EMF Constant (25℃，±5%） | Ke | Vrm/rad /s | 14.7 | 29.5 | 14.8 | 44.2 | 22.1 | 58.9 | 29.5 | 73.6 | 36.8 | 88.3 | 44.2 | 117.8 | 58.9 |
| Electrical Resistance (25℃，±5%）P-P | R | Ω | 5.0 | 10.0 | 2.4 | 15.0 | 3.6 | 20.0 | 4.8 | 24.8 | 6.0 | 29.7 | 7.3 | 39.5 | 9.6 |
| Inductance (25℃，±20%）P-P | L | mH | 9.5 | 19.0 | 4.8 | 28.5 | 7.1 | 38.0 | 9.5 | 47.5 | 11.9 | 57.0 | 14.3 | 76.0 | 19.0 |
| Max Coil Temperature | Tmax | ℃ | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | 2τ | mm | 84 | 84 | 84 | 84 | 84 | 84 | 84 | 84 | 84 | 84 | 84 | 84 | 84 |
| Magnetic Attraction | Fa | kN | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| Max.DC Bus Voltage | Ubus | V | 330 | 330 | 330 | 330 | 330 | 330 | 330 | 330 | 330 | 330 | 330 | 330 | 330 |
| Vmax,Fc@Vbus=310Vdc | Vmax,Fc | m/s | 7.9 | 3.6 | 7.9 | 2.2 | 5.1 | 1.5 | 3.6 | 1.1 | 2.8 | 0.8 | 2.2 | 0.4 | 1.5 |
| Vmax,Fp@Vbus=310Vdc | Vmax,Fp | m/s | 4.8 | 0.6 | 4.9 | 0.0 | 2.2 | 0.0 | 0.8 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| Vmax,0@Vbus=310Vdc | Vmax,0 | m/s | 8.5 | 4.2 | 8.5 | 2.8 | 5.6 | 2.1 | 4.2 | 1.7 | 3.4 | 1.4 | 2.8 | 1.0 | 2.1 |
| Mover Mass | Mp | Kg | 1.0 | 1.9 | 1.9 | 2.7 | 2.7 | 3.6 | 3.6 | 4.5 | 4.5 | 5.4 | 5.4 | 7.2 | 7.2 |
| Stator Mass within unit length | Ms | Kg/m | 24.0 | 24.0 | 24.0 | 24.0 | 24.0 | 24.0 | 24.0 | 24.0 | 24.0 | 24.0 | 24.0 | 24.0 | 24.0 |

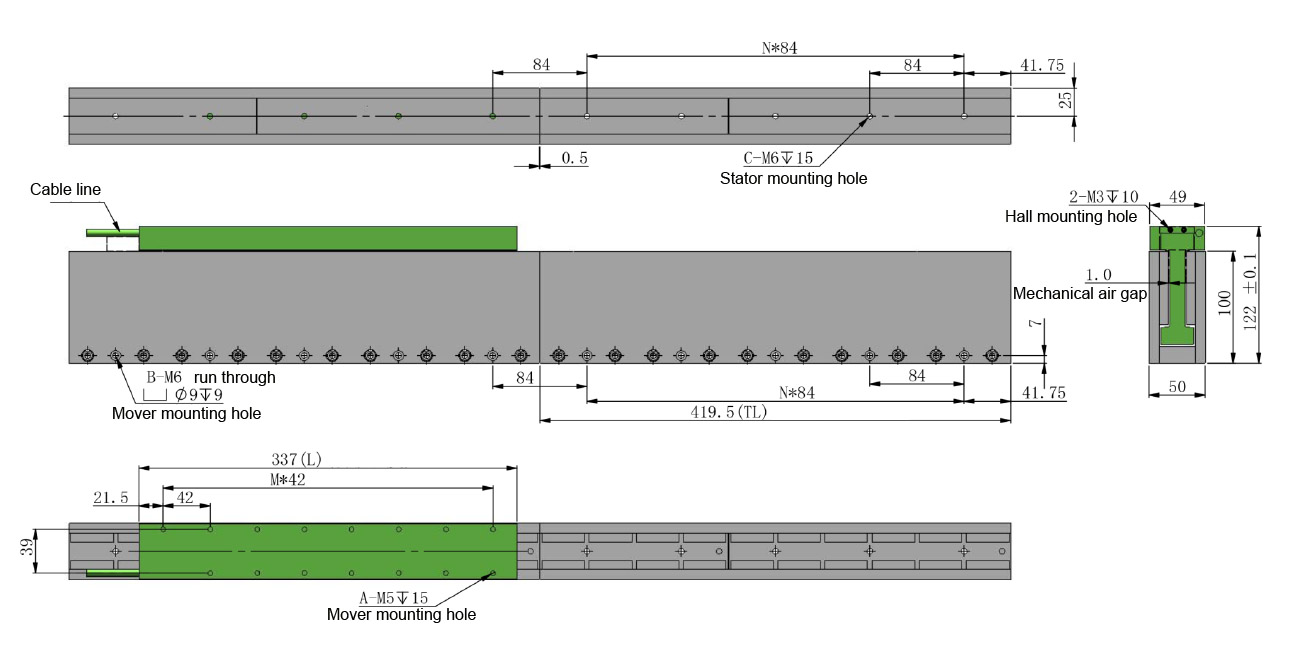

Dimension
| Mover Length | |||
| Mover model | Mover length L | M | Mover mounting hole A |
| LSMU610101A-S-H-NC-N-D00.5 | 85 | 1 | 3 |
| LSMU610201B-S-H-NC-N-D00.5 | 169 | 3 | 7 |
| LSMU610201B-P-H-NC-N-D00.5 | 7 | ||
| LSMU610301A-S-H-NC-N-D00.5 | 253 | 5 | 11 |
| LSMU610301A-P-H-NC-N-D00.5 | 11 | ||
| LSMU610401A-S-H-NC-N-D00.5 | 337 | 7 | 15 |
| LSMU610401A-P-H-NC-N-D00.5 | 15 | ||
| LSMU610501A-S-H-NC-N-D00.5 | 421 | 9 | 19 |
| LSMU610501A-P-H-NC-N-D00.5 | 19 | ||
| LSMU610601A-S-H-NC-N-D00.5 | 505 | 11 | 23 |
| LSMU610601A-P-H-NC-N-D00.5 | 23 | ||
| LSMU610801A-S-H-NC-N-D00.5 | 673 | 15 | 31 |
| LSMU610801A-P-H-NC-N-D00.5 | 31 | ||
Remark: 1. standard cable length is 0.5m with D-type aviation plug, maximum outer diameter of cable is 7.0mm, minimum bending radius of fixed laying is 3*d, minimum bending radius of dragging chain movement is 5*d, cable length and terminal can be customized.
2. optional temperature sensor.
| Stator Length | ||||
| Stator model | Stator length TL | N | Stator mounting hole B | Stator mounting hole C |
| LSMU6202A | 167.5 | 1 | 2 | 2 |
| LSMU6203A | 251.5 | 2 | 3 | 3 |
| LSMU6204A | 419.5 | 4 | 5 | 5 |
Suitable for any mover of this series, stator installation mode can be selected.
Application Case：Laser Cutting Industry

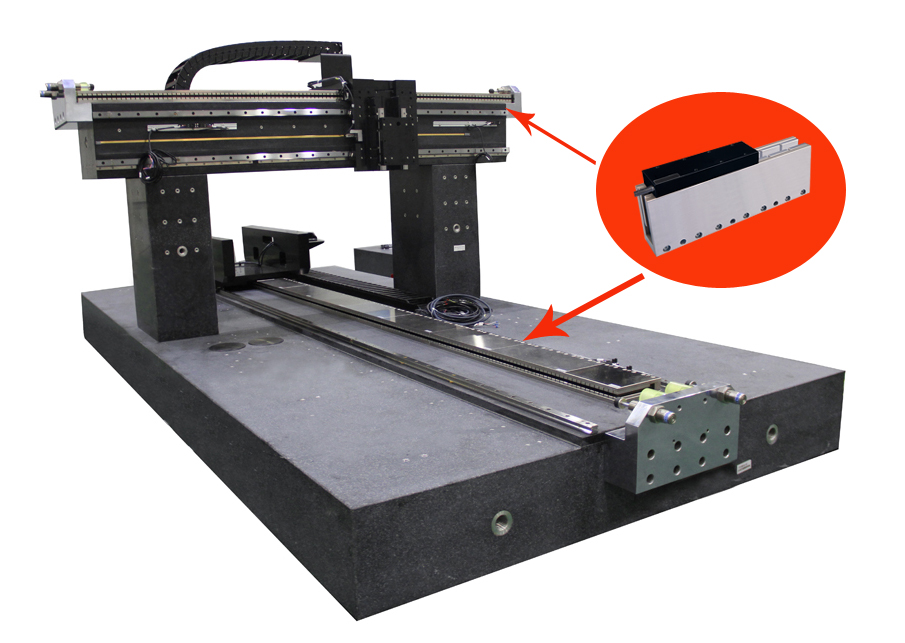

Ironless linear motor match with marble platform, with characteristic of high speed, high precision, wear well etc.
