High-Speed Iron Core Linear Motor

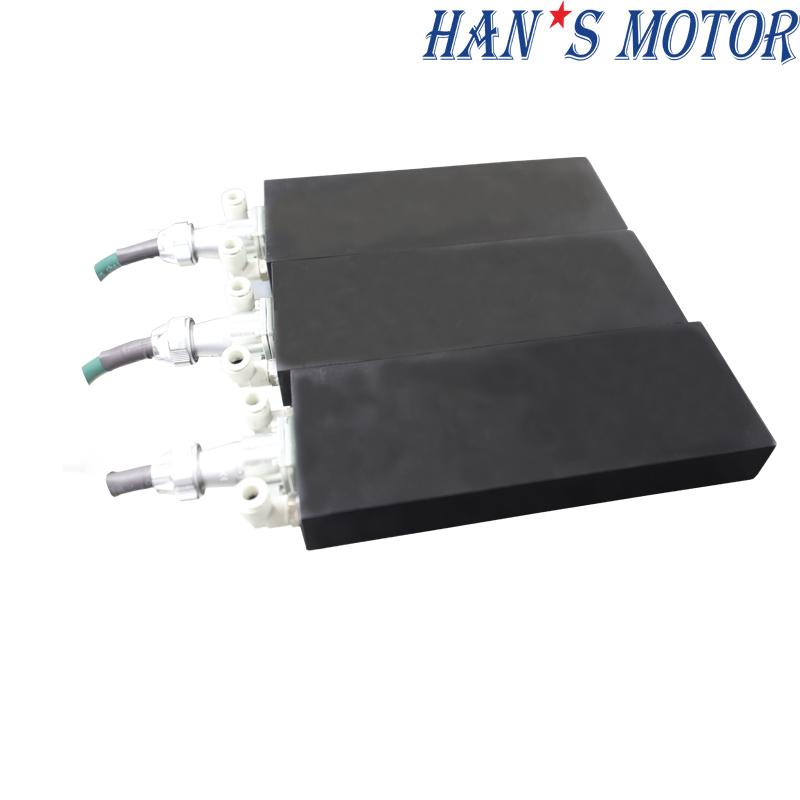

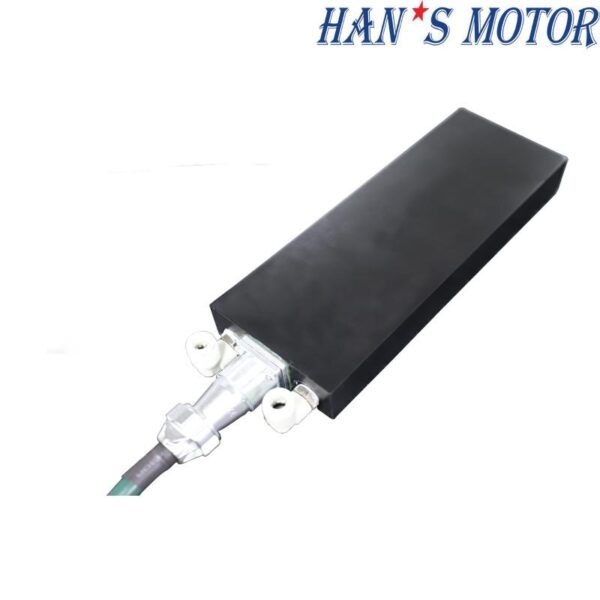

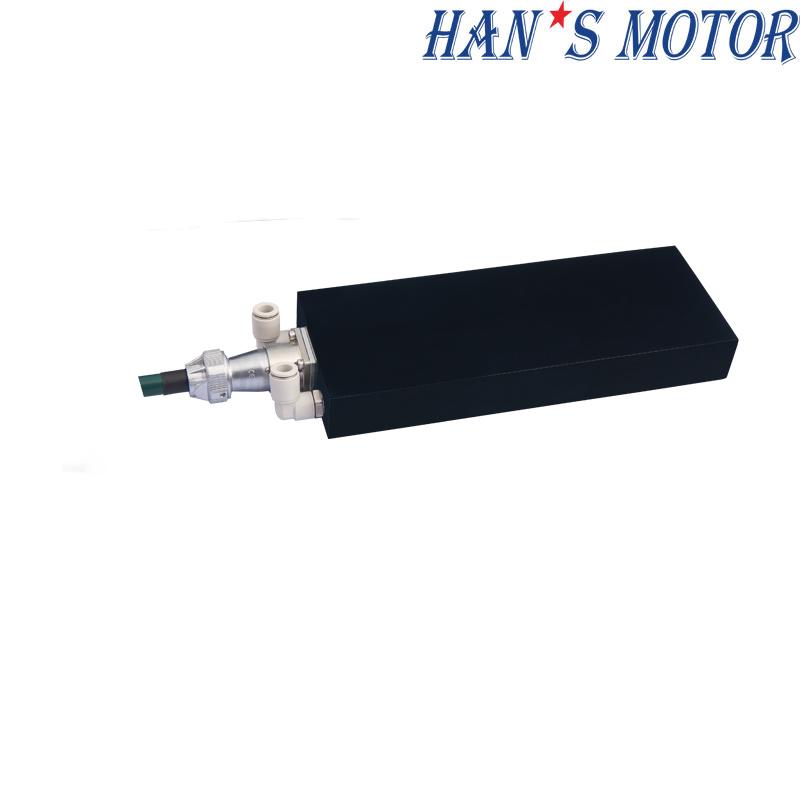

The LSMFJ-50 iron core linear motor offers high speed and thrust for CNC laser machines. Its iron core design enables fast acceleration with stable dynamic response. Water cooling ensures temperature control during intensive operations. Optimized for industrial cutting and engraving systems.
Brand:
Order(MOQ):
1
Product Detail
Specifications
| Mover Spec: LSMFJ10xxxx-x-H-NC-N-D00.5 | 101A-S | 201A-S | 201A-P | ||
| Performance Parameters | Symbol | Units | Series | Series | Parallel |
| Continuous Force (Tmax） | Fc | N | 65 | 125 | 125 |
| Peak Force | Fp | N | 222 | 498 | 498 |
| Motor Constant (25℃) | Km25 | N/Sqrt(W) | 11.5 | 16.4 | 16.4 |
| Max.Continuous Power Dissipation | Pc | W | 44 | 80 | 80 |
| Continuous Current (Tmax） | Ic | Arms | 2.3 | 2.2 | 4.4 |
| Peak Current (1S) | Ip | Arms | 9.0 | 9.0 | 18.0 |
| Force Constant (25℃，±5%） | Kf | N/Arms | 28.3 | 56.8 | 28.4 |
| Back EMF Constant (25℃，±5%） | Ke | Vrms/m/s | 9.4 | 18.8 | 9.4 |
| Resistance(25℃，±5%）P-P | R | Ω | 4.0 | 8.0 | 2.0 |
| Inductance(25℃，±20%）P-P | L | mH | 13.0 | 26.0 | 6.5 |
| Max Coil Temperature | Tmax | ℃ | 120 | 120 | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | 2τ | mm | 20 | 20 | 20 |
| Magnetic Attraction | Fa | kN | 0.4 | 0.8 | 0.8 |
| Max.DC Bus Voltage | Ubus | V | 600 | 600 | 600 |
| Vmax,Fc@Vbus=310Vdc | m/s | 11.3 | 5.4 | 11.4 | |
| Vmax,Fp@Vbus=310Vdc | m/s | 5.4 | 2.2 | 5.4 | |
| Vmax,0@Vbus=310Vdc | m/s | 13.3 | 6.6 | 13.2 | |
| Vmax,Fc@Vbus=537Vdc | m/s | 20.1 | 9.8 | 20.2 | |
| Vmax,Fp@Vbus=537Vdc | m/s | 9.9 | 4.6 | 9.9 | |
| Vmax,0@Vbus=537Vdc | m/s | 23.1 | 11.5 | 23.0 | |
| Mover Mass | Mp | Kg | 0.6 | 1.0 | 1.0 |
| Stator Mass within unit length | Ms | Kg/m | 3.3 | 3.3 | 3.3 |

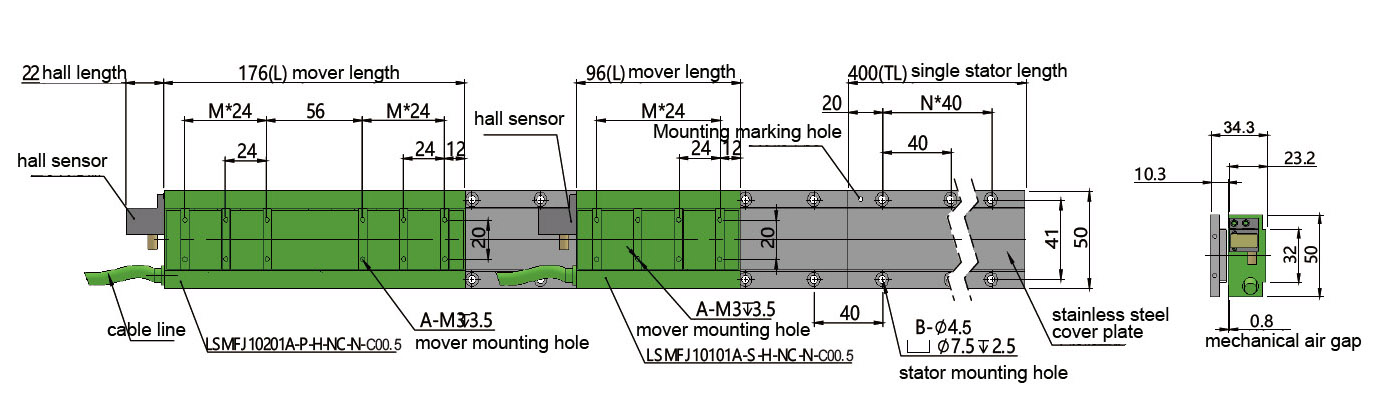

Dimension
| Mover Length | |||
| Mover model | Mover length L | M | Mover mounting hole A |
| LSMFJ10101A-S-H-NC-N-C00.5 | 96 | 3 | 8 |
| LSMFJ10201A-S-H-NC-N-C00.5 | 176 | 2 | 12 |
| LSMFJ10201A-P-H-NC-N-C00.5 | 176 | 2 | 12 |
Remarks: 1. Standard cable length is 0.5m (with aviation plug), Continuous current Ic≤10A/10＜Ic≤12A/ 12＜Ic≤16A maximum outer diameter of used cable is 7.5mm/8.0mm/9.0mm, the fixed laying minimum bending radius is 3*dmm, the moving minimum bending radius of chain is 5*dmm the cable length and terminal can be customized if there are special requirements.
2. Optional temperature sensor.
| Stator Length | |||
| Stator model | Stator length TL | N | Stator mounting hole B |
| LSMFJ2A-W50-L40 | 40 | 0 | 2 |
| LSMFJ2A-W50-L80 | 80 | 1 | 4 |
| LSMFJ2A-W50-L200 | 200 | 4 | 10 |
| LSMFJ2A-W50-L320 | 320 | 7 | 16 |
| LSMFJ2A-W50-L400 | 400 | 9 | 20 |
Suitable for any mover of this series.

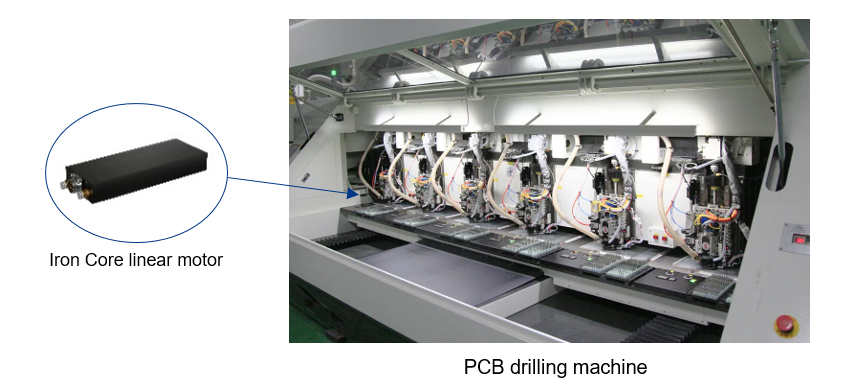

Application case：PCB industry
Requires: Smooth thrust, small inertia, large acceleration, strong overload capacity, no cogging force and electromagnetic suction.
