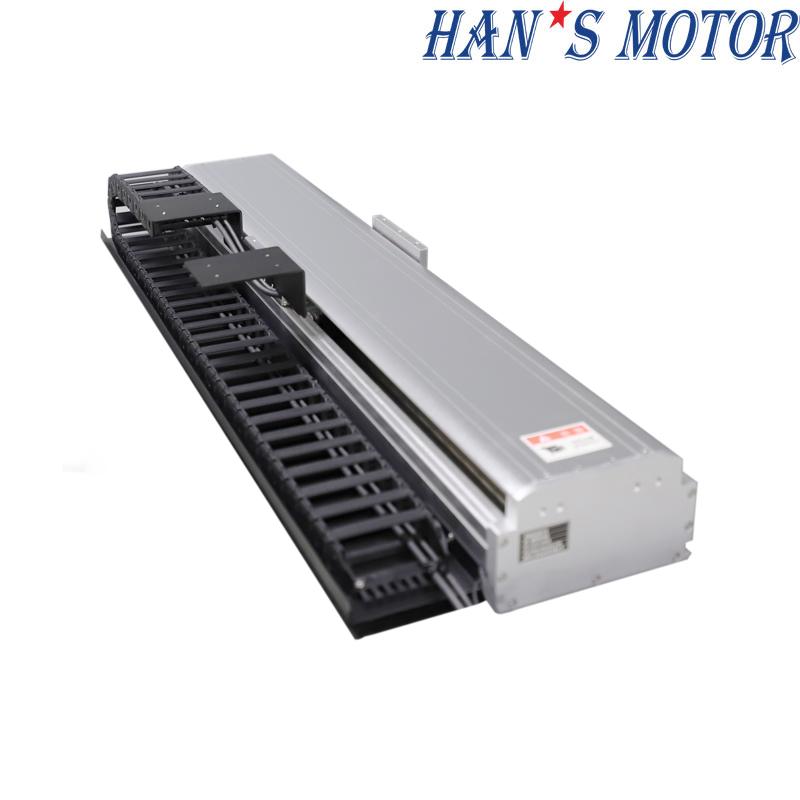

High Load Linear Motion Stage
This high load linear motion stage supports large payloads with minimal deflection. Featuring a robust guide system and direct drive motor, it maintains accuracy over long duty cycles. Suitable for CNC machines, laser cutting, and industrial transport modules.
Brand:
Order(MOQ):
1
Product Detail
Industrial design for high performance and high load
With LM135 Series, which is one of high-load linear stgae. It is characterized by high stiffness and the use of high-quality components: standard aluminum profile base, iron core linear motor, high-resolution grating. The high resolution of the grating allows an excellent tracking performance, small tracking errors, and short settling times. Industry-compatible connectors offer a fast and secure connectivity.
Linear motor with direct drive
LM135 module uses iron core linear motor. Direct drives do not use mechanical components in the drivetrain, they transmit the drive force to the motion platform directly and without friction. The platform can reach high velocities and accelerations. Iron core linear motor, with no wear, zero back backlash, low pound- force and low speed chain wave characteristics, coupled with the mover thrust density. It can be applied to point to point demand motion with high acceleration and deceleration.
Application fields
Electronics assembly: Noncontact inspection, X-ray inspection, and AOI (automated optical inspection). Semiconductor manufacturing: Wafer processing and inspection. Laser machining: Laser welding. Highly dynamic applications in precision automation, smooth scan motion, minimum tracking errors, and short settling times.

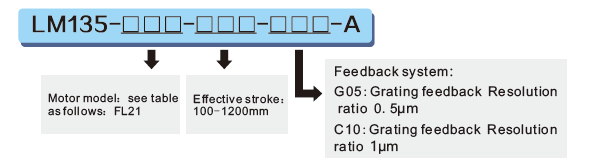

Model Selection

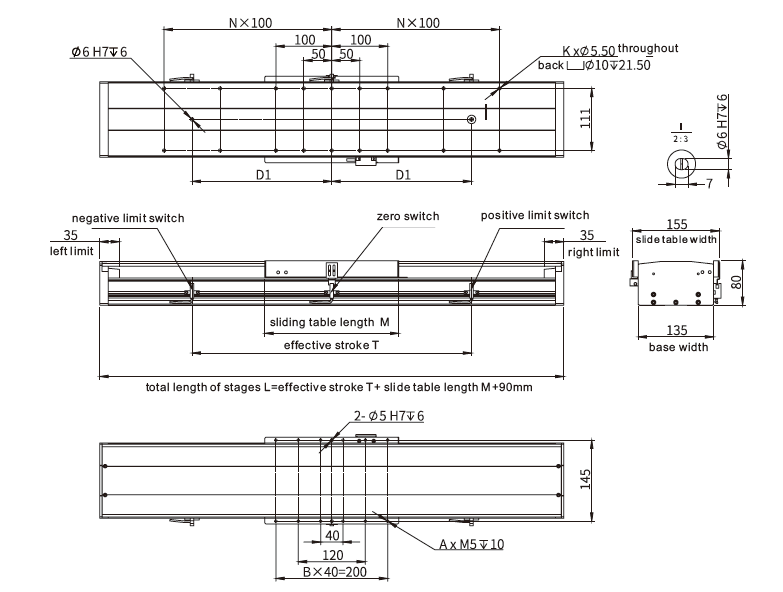

Stage Dimension
Motor Model And Parameter
| Iron Core Linear Motor | |||||
| Parameter\ Motor Model | Unit | FL21 | FL31 | FL41 | FJ21 |
| Continuous Force (Tmax） | N | 118 | 176 | 236 | 125 |
| Peak Force | N | 314 | 466 | 628 | 498 |
| Motor Constant | N//SqrtW | 13.6 | 16.5 | 19.4 | 13.6 |
| Max.Continuous Power Dissipation | W | 75.2 | 114.2 | 147.8 | 84.2 |
| Continuous Current (Tmax） | Arms | 4 | 4 | 4 | 2.2 |
| Peak Current (1S) | Arms | 12 | 12 | 12 | 9 |
| Force Constant (25℃，±5%） | N/Arms | 29.5 | 44 | 59 | 56.8 |
| Back EMF Constant (25℃，±5%） | Vrms/rad/s | 9.8 | 14.7 | 19.7 | 18.8 |
| Electrical Resistance(25℃，±5%）P-P | Ω | 2.4 | 3.4 | 4.4 | 8.2 |
| Inductance(25℃，±20%）P-P | mH | 9.0 | 13.5 | 18 | 26 |
| Max Coil Temperature | ℃ | 120 | 120 | 120 | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | mm | 20 | 20 | 20 | 20 |
| Magnetic Attraction | KN | 0.68 | 0.98 | 1.3 | 0.75 |
| Mover Mass | Kg | 1.6 | 2.3 | 3 | 1 |
Linear Motor Stages Specifications
LM135-FL21-XXX-XXX-A:
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 10 | 14 | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 |
| N | 1 | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 |
| Stage Total Length (mm) | 360 | 460 | 560 | 660 | 760 | 860 | 960 | 1060 | 1160 | 1260 | 1360 | 1460 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 8.7 | 10.1 | 11.5 | 12.8 | 14.2 | 15.7 | 16.9 | 18.4 | 19.8 | 21.1 | 22.5 | 24.0 |
| Sliding Table M (mm) | 170 | |||||||||||
| A | 8 | |||||||||||
| B | 3 | |||||||||||
| Motion Parts Weight (kg) | 3.6 | |||||||||||
LM135-FL31-XXX-XXX-A:
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 10 | 14 | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 |
| N | 2 | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 |
| Stage Total Length (mm) | 430 | 530 | 630 | 730 | 830 | 930 | 1030 | 1130 | 1230 | 1330 | 1430 | 1530 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 10.7 | 12.2 | 13.6 | 14.9 | 16.3 | 17.8 | 19.0 | 20.5 | 21.9 | 23.2 | 24.7 | 26.1 |
| Sliding Table M (mm) | 240 | |||||||||||
| A | 12 | |||||||||||
| B | 5 | |||||||||||
| Motion Parts Weight (kg) | 4.7 | |||||||||||
LM135-FL41-XXX-XXX-A:
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 14 | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 | 34 |
| N | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 | 7 |
| Stage Total Length (mm) | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 | 1500 | 1600 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 13.2 | 14.4 | 15.9 | 17.2 | 18.6 | 20.0 | 21.3 | 22.7 | 24.2 | 25.5 | 26.9 | 28.3 |
| Sliding Table M (mm) | 310 | |||||||||||
| A | 12 | |||||||||||
| B | 5 | |||||||||||
| Motion Parts Weight (kg) | 5.9 | |||||||||||
LM135-FJ21-XXX-XXX-A:
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 10 | 14 | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 |
| N | 1 | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 |
| Stage Total Length (mm) | 380 | 480 | 580 | 680 | 780 | 880 | 980 | 1080 | 1180 | 1280 | 1380 | 1480 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 8.7 | 10.2 | 11.6 | 12.8 | 14.3 | 15.6 | 17.8 | 18.5 | 19.9 | 21.1 | 22.6 | 23.9 |
| Sliding Table M (mm) | 190 | |||||||||||
| A | 8 | |||||||||||
| B | 3 | |||||||||||
| Motion Parts Weight (kg) | 3.3 | |||||||||||

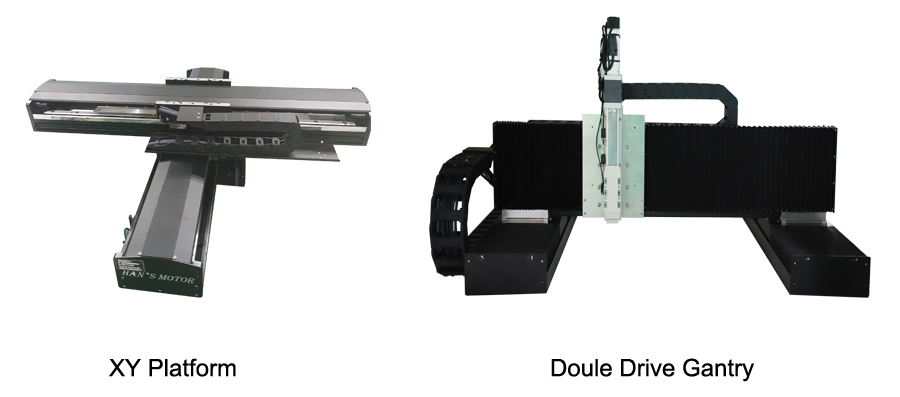

Optional:
Laser Group Show

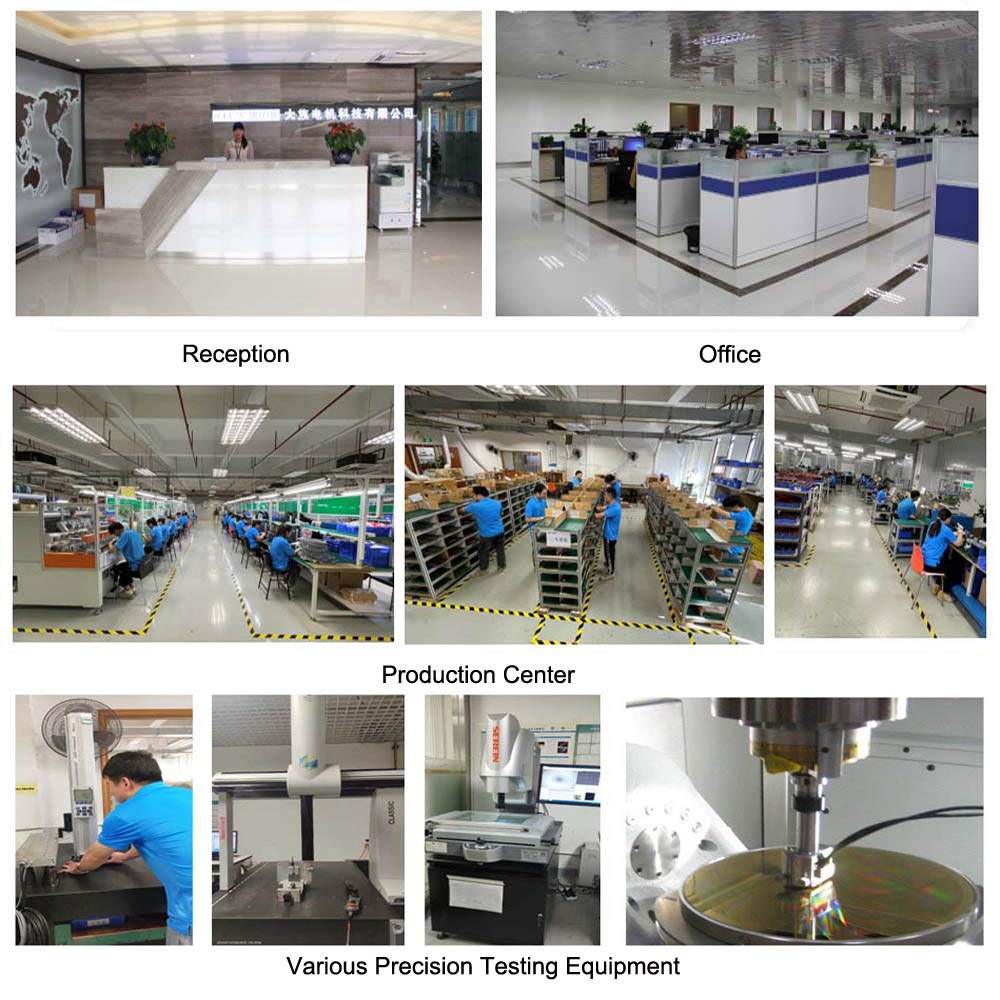

Our Company Show
Company Qualification
Inventive Patent
Honor
Packaging & Delivery
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
