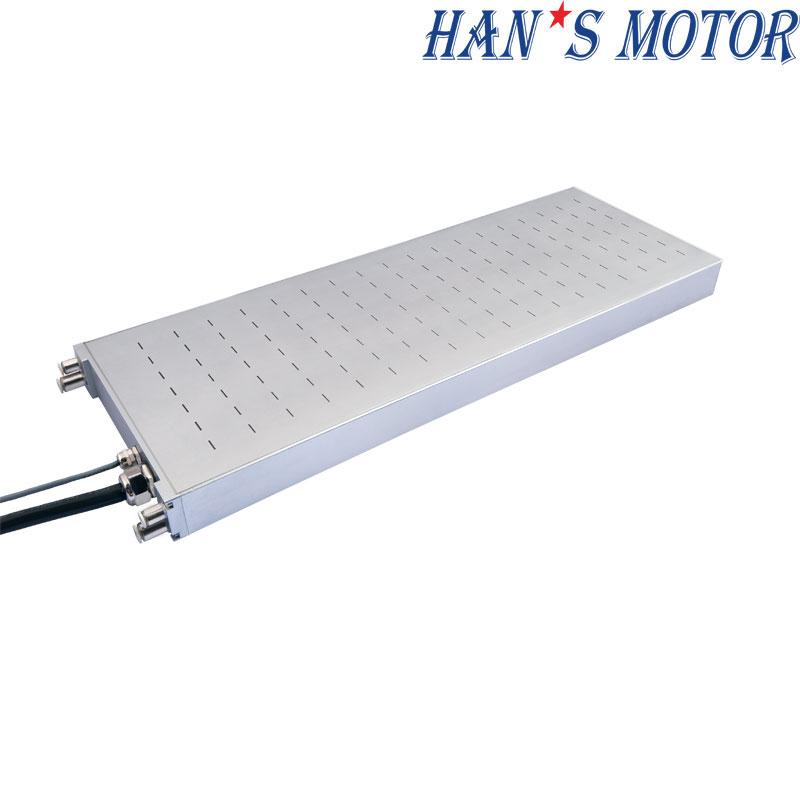

Heavy-Duty Iron Core Linear Motor
This high-thrust iron core linear motor delivers force from 4041N to 7800N, designed for extreme-load motion systems. The rugged construction and precise control make it suitable for intensive industrial use. Its advanced thermal management ensures stable long-duration performance.
Brand:
Order(MOQ):
1
Product Detail
Specifications
| Mover Spec.：LSMF610602C-P-H-WC | |||
| PERFORMANCE PARAMETERS | Symbol | Units | |
| Continuous Force (Tmax） | Fc | N | 4041 |
| Peak Force | Fp | N | 7800 |
| Motor Constant (25℃) | Km25 | N/Sqrt(W) | 106.0 |
| Max.Continuous Power Dissipation | Pc | W | 1994 |
| Continuous Current (Tmax） | Ic | Arms | 22.0 |
| Peak Current (1S) | Ip | Arms | 45.0 |
| Force Constant (25℃，±5%） | Kf | N/Arms | 183.7 |
| Back EMF Constant (25℃，±5%） | Ke | Vrms/m/s | 61.2 |
| Electrical Resistance(25℃，±5%）P-P | R | Ω | 2.0 |
| Inductance(25℃，±20%）P-P | L | mH | 17.0 |
| Max Coil Temperature | Tmax | ℃ | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | 2τ | mm | 48.0 |
| Minimum flow of cold water | Wmin | L/min | 6.5 |
| Temperature difference between inlet and outlet | △T | ℃ | 7.0 |
| Pressure drop (stator loop series) | △P | Bar | 3.0 |
| Magnetic Attraction | Fa | kN | 18.0 |
| Max.DC Bus Voltage | Ubus | V | 600 |
| Vmax,Fc@Vbus=310Vdc | m/s | 2.8 | |
| Vmax,Fp@Vbus=310Vdc | m/s | 2.0 | |
| Vmax,0@Vbus=310Vdc | m/s | 3.5 | |
| Vmax,Fc@Vbus=537Vdc | m/s | 1.7 | |
| Vmax,Fp@Vbus=537Vdc | m/s | 1.1 | |
| Vmax,0@Vbus=537Vdc | m/s | 2.3 | |
| Mover Mass | Mp | Kg | 32 |
| Stator Mass within unit length | Ms | Kg/m | 16.7 |

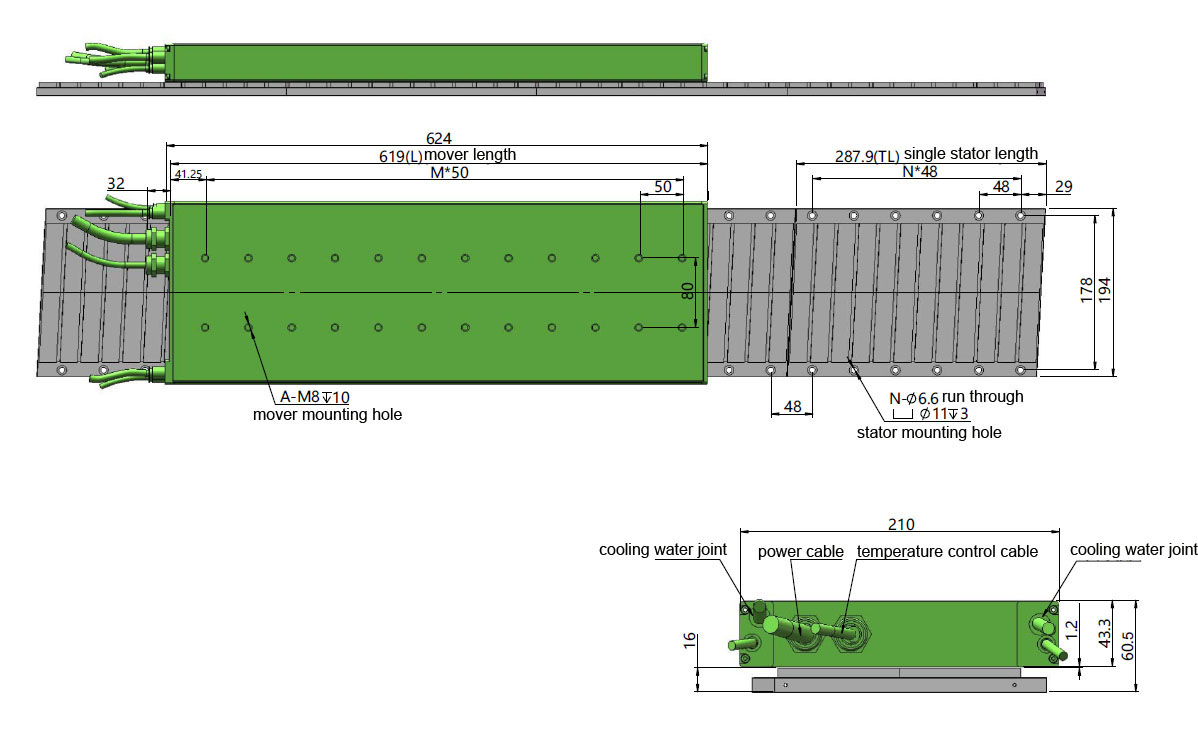

Dimension
| Mover Length | ||||
| Mover model | Mover length L | M | Mover mounting hole A | |
| LSMF610602C-P-H-WC | 619 | 11 | 24 | |
Remarks: 1. Standard cable length is 6m, maximum outer diameter(d) of motor cable is d= 13.5mm, minimum bending radius within chain is 101.3mm, the length can be customized if there are special requirements.
2. Optional temperature sensor.
| Stator Length | |||
| Stator model | Stator length TL | N | Stator mounting hole B |
| LSMF4210A | 287.9 | 5 | 12 |
| LSMF5411A | 143.9 | 2 | 6 |
Suitable for any mover of this series.

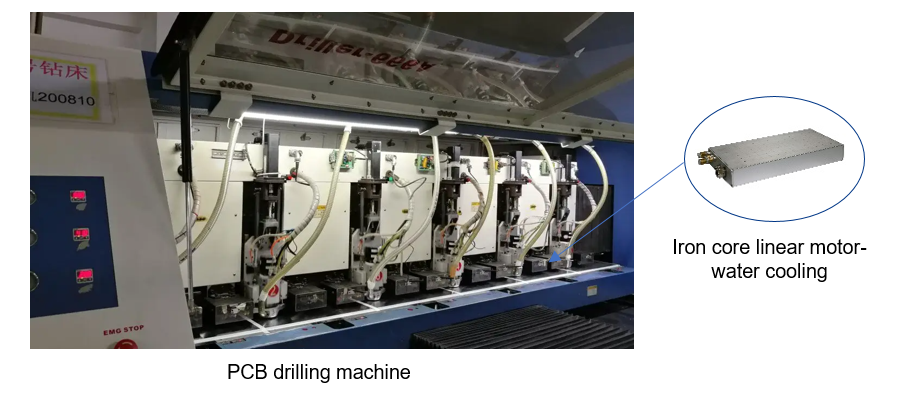

Application Case：PCB Drilling Machine
