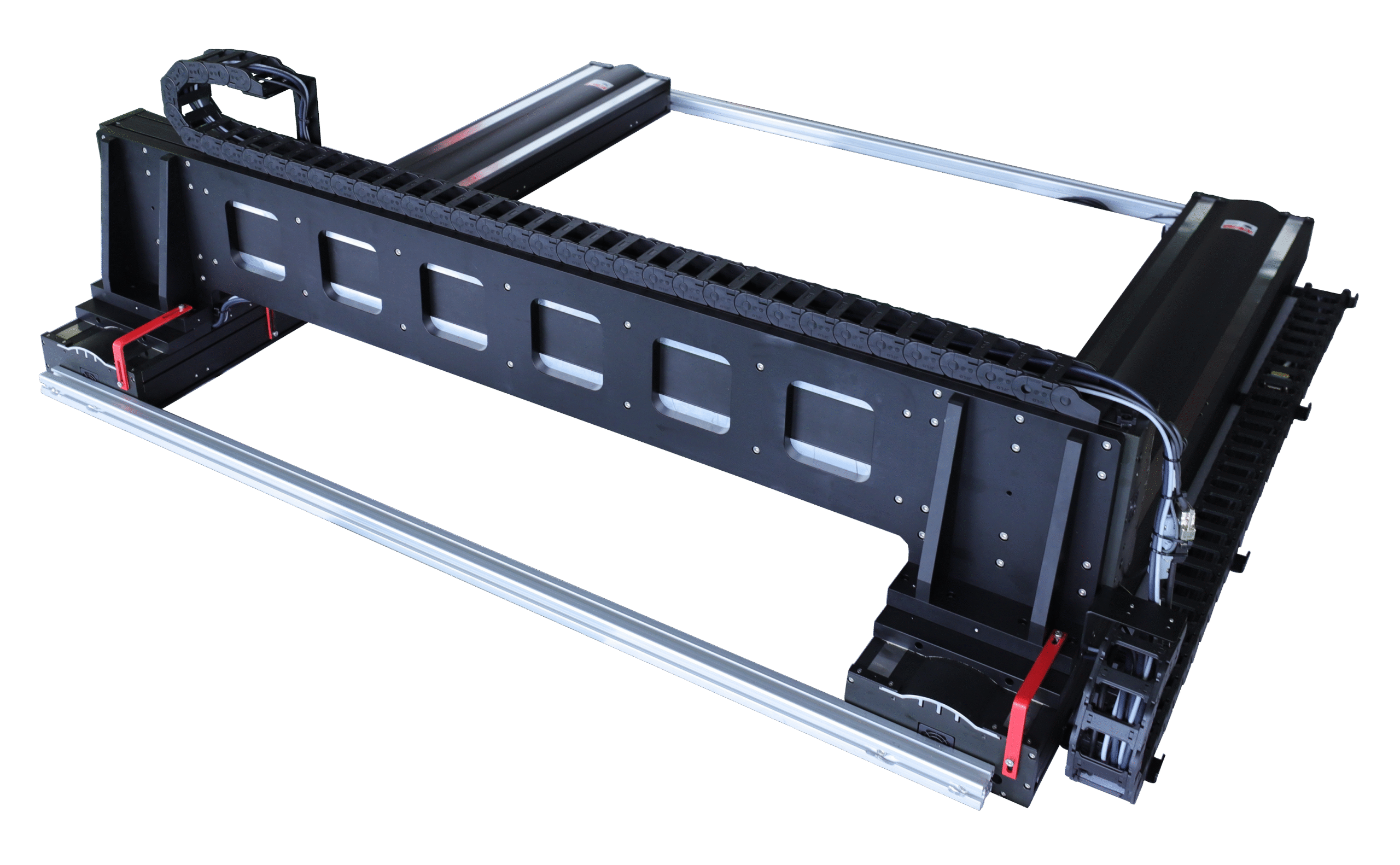

Fully-closed Double Drive Gantry Stage
The Fully-closed Double Drive Gantry Stage offers high rigidity, precise motion, fast speed, and heavy load capacity with IP54 protection. Perfect for CNC machines, PCB drilling and milling, 3D printing, laser cutting, laser welding, AOI systems, and other high-precision industrial applications.
Brand:
Order(MOQ):
1
Product Detail
Feature:
1. Equipped with imported Renishaw grating ruler for precise position measurement.
2.Uses high-quality THK or WON linear guides for smooth and stable motion.
3.Integrated Servotronix drive system ensures reliable high-speed performance.
4.Achieves repeat accuracy up to ±2μm, suitable for high-precision industrial applications.
5.Fully customizable axis stroke, speed, and acceleration to meet diverse customer requirements.
6.Can be configured as a single-drive, dual-drive, or stationary gantry stage for CNC, PCB milling, 3D printing, and other precision motion platforms.
7.Free product manual and 3D model available to support system integration and design planning.
Highlights:
· High-rigidity, fully-enclosed dual-drive gantry stage for stable and precise industrial motion.
· IP54 protection ensures reliable operation in demanding environments.
· Supports versatile configurations: single-drive, dual-drive, or stationary gantry stage.
· Customizable axis stroke, speed, and acceleration for CNC, PCB milling, 3D printing, and laser processing.
· Advanced imported components, including Renishaw grating ruler and THK/WON linear guides, for superior accuracy and smooth motion.
· Ideal for high-precision applications: engraving, milling, AOI systems, 3D scanning, and laser cutting/welding.
· Free product manual and 3D model provided for easy system integration.
Application:
It is widely used in semiconductor wafer dicing、die bonders & wire bonders、laser marking、laser cutting、laser engraving、laser drilling、laser scribing.
Specification
| Gantry Stage Parameter | ||
| Performance parameter | X-axis (dual-drive) | Y-axis (Crossbeam) |
| Effective stroke（mm） | 1300 | 1000 |
| Limit stroke（mm） | 1320 | 1020 |
| Repeat accuracy（mm） | ±0.02 | ±0.02 |
| Acceleration(g) | 1 | 1 |
| Maximum speed（m/s） | 1 | 1 |
| Load（kg） | 50+Y-axis | 50 |
| Driver | CDHD2-4D52AAP1 (Servotronix) CDHD2-0062AAP1 (Servotronix) | |
| Llinear motor Parameter | ||
| Parameter | X-axis (dual-drive) | Y-axis (Crossbeam) |
| Motor Model | L33 | L23 |
| Continuous Force (N) | 434 | 314 |
| Continuous Current (A) | 6 | 4 |
| Peak Force (N) | 1138 | 827 |
| Peak Current (A) | 18 | 12 |
| Force Constant (N/Arms) | 72.4 | 78.5 |
| Resistance (Ω）（P-P) | 2.9 | 4.6 |
| Inductance(±20%）mH | 13.9 | 24 |
| Mover mass（KG） | 5.5 | 3.8 |
| Polar distance(N-N)mm | 20 | 20 |

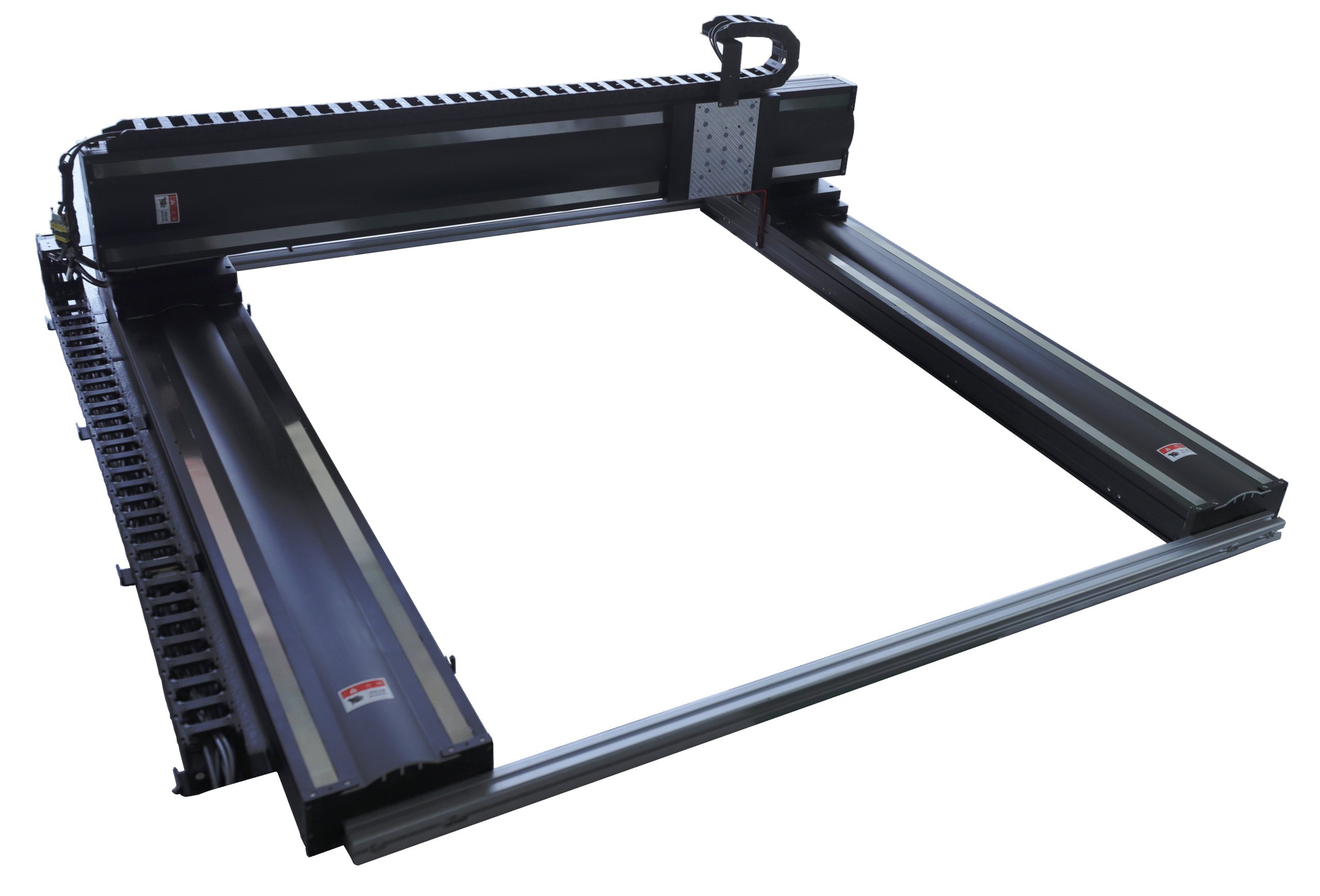

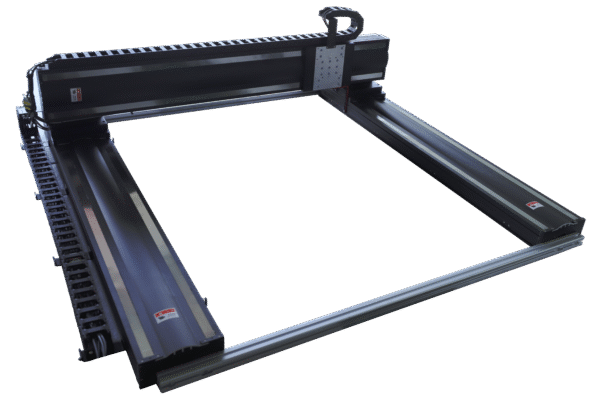

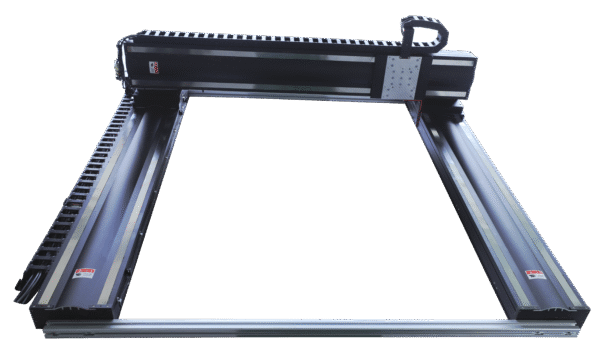

Product Structure

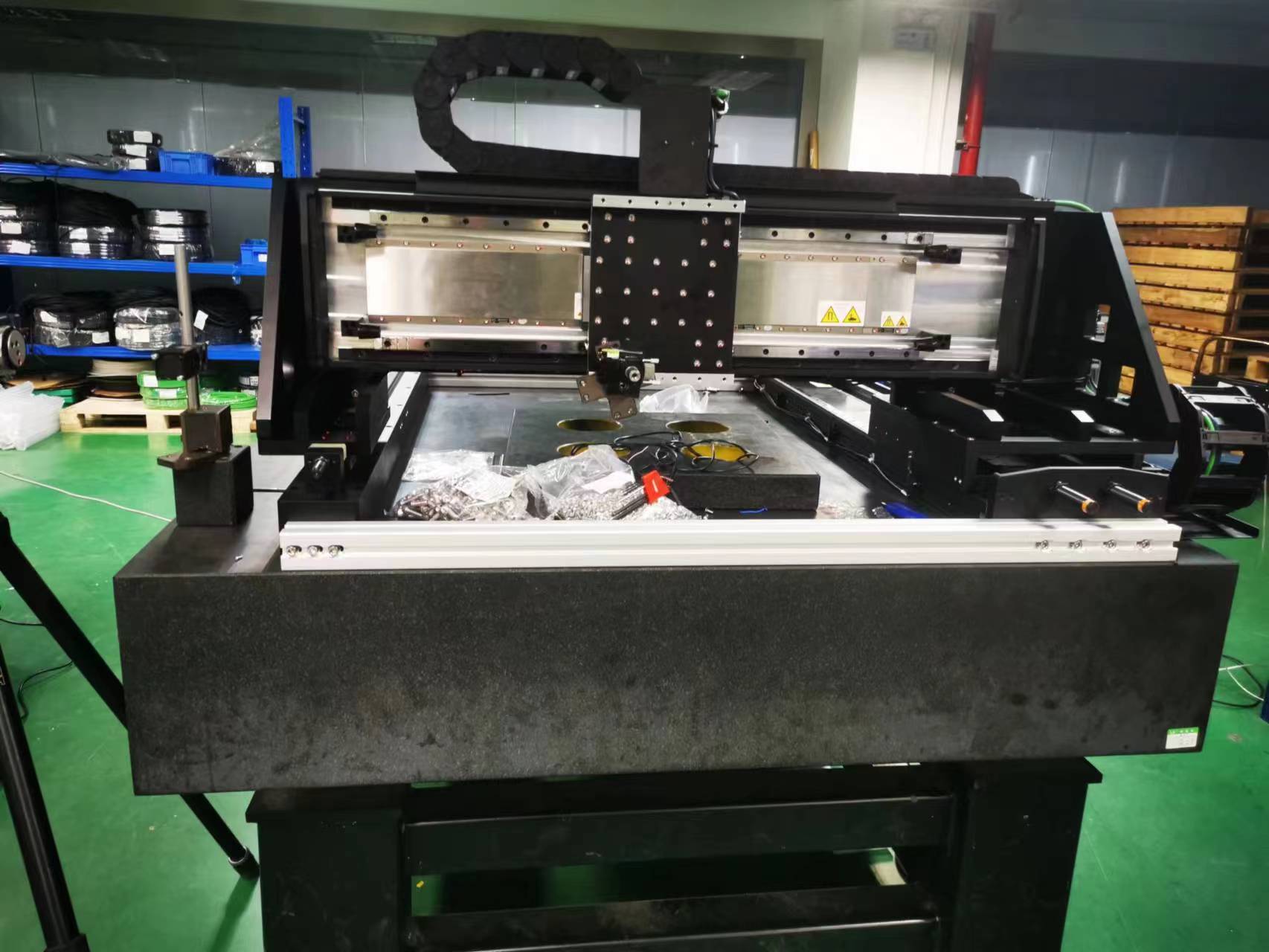

Sample
