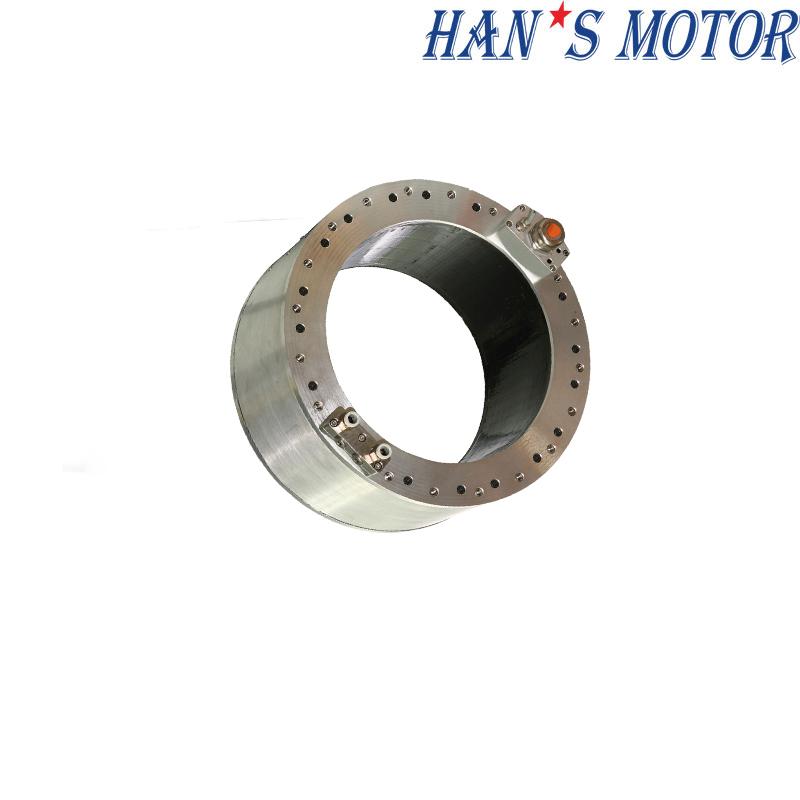

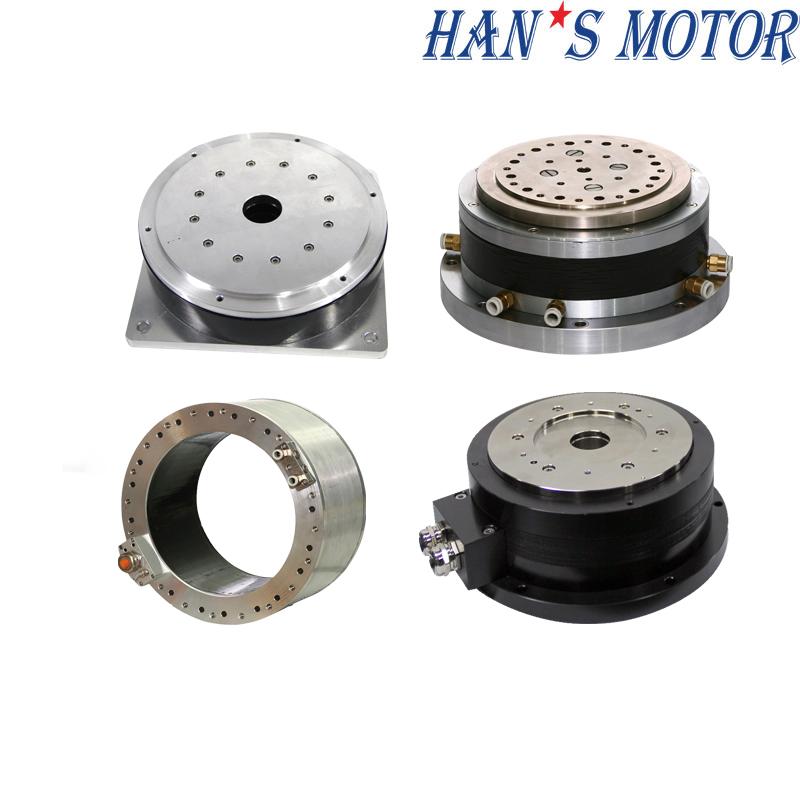

Frameless Torque Motor
This frameless torque motor delivers large torque output and high positioning accuracy, ideal for direct-drive integration. Its compact hollow-shaft design allows flexible mechanical integration in precision equipment. Suitable for high-performance rotary motion with zero backlash and smooth operation.
Brand:
Order(MOQ):
1
Product Detail
Product Specifications
| Torque Motor BI7 Series Specification | ||||
| Motor Model No.：BI7-xxx-x-A-0-W | 003-P-A-0 | 005-S-A-0 | ||
| Performance Parameters | Symbol | Unit | ||
| Pole pairs | p | — | 11 | 11 |
| Max.Working Bus Voltage | Vdc | V | 600 | 540 |
| Peak torque | Tp | Nm | 70.0 | 95.0 |
| Continuous torque (Water cooling) | Tcw | Nm | 30.0 | 50.0 |
| Continuous torque (Natural cooling) | Tc | Nm | 12.7 | 22.0 |
| Peak Current | Ip | Arms | 15.7 | 12.0 |
| Continuous current (Water cooling) | Icw | Arms | 5.7 | 6.1 |
| Continuous current ((Natural cooling) | Ic | Arms | 2.4 | 2.7 |
| Torque Constant | Kt | Nm/Arms | 5.3 | 8.1 |
| Back EMF Constant | Ke | Vrms/rad/s | 1.8 | 2.7 |
| Back EMF Constant | Ke | Vrms/(1000r/min) | 320.0 | 492.0 |
| Line Resistance | R | Ω | 5.8 | 9.2 |
| Line Inductance | L | mH | 17.0 | 35.3 |
| Max.speed,Tcw | Nmax,Tcw | rpm | 1100 | 520 |
| Max.speed,Tc | Nmax,Tc | rpm | 1200 | 650 |
| Max.speed,Tp | Nmax,Tp | rpm | 750 | 210 |
| Max.speed,0 | Nmax | rpm | 1250 | 750 |
| Power consumption, output Tcw | Plw | W | 396 | 875 |
| Power consumption, output Tc | Plc | W | 70 | 171 |
| Motor constant | Km | Nm/√W | 1.52 | 1.69 |
| Cooling water flow | dV/dt | L/min | 3.50 | 2.61 |
| Cooling water temperature difference setting | △θ | k | 5 | 5 |
| Rated winding temperature | θ | ℃ | 130 | 130 |
| Motor Mass | Ms | Kg | 4.3 | 5.5 |
| Rotor Mass | Mr | Kg | 1.8 | 2.4 |
| Rotor Moment of Inertia | Jm | Kg*m2 | 0.0029 | 0.0039 |
| Cable length (Can be extended optional) | L | M | 3.0 | 3.0 |
| Cable Minimum bending radius | R | mm | 37.5 | 37.5 |

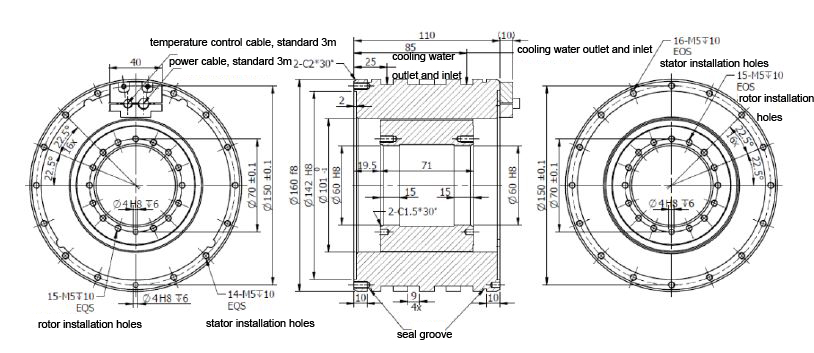

Dimension
| Model | Center Hole(mm) | Outer Diameter | Height/mm | Spec. | Continuous torque/Nm | Peak torque/Nm |
| BI7 (water cooling) | 60 | 160 | 90 | BI7-003 | 30 | 70 |
| 110 | BI7-005 | 50 | 95 | |||
| 190 | BI7-010 | 105 | 204 |
Characteristics:
• Low-noise, and insulation of high temperature
• High-torque
• CE and EMC quality certification
Running smoothly, high quality and excellent performance
