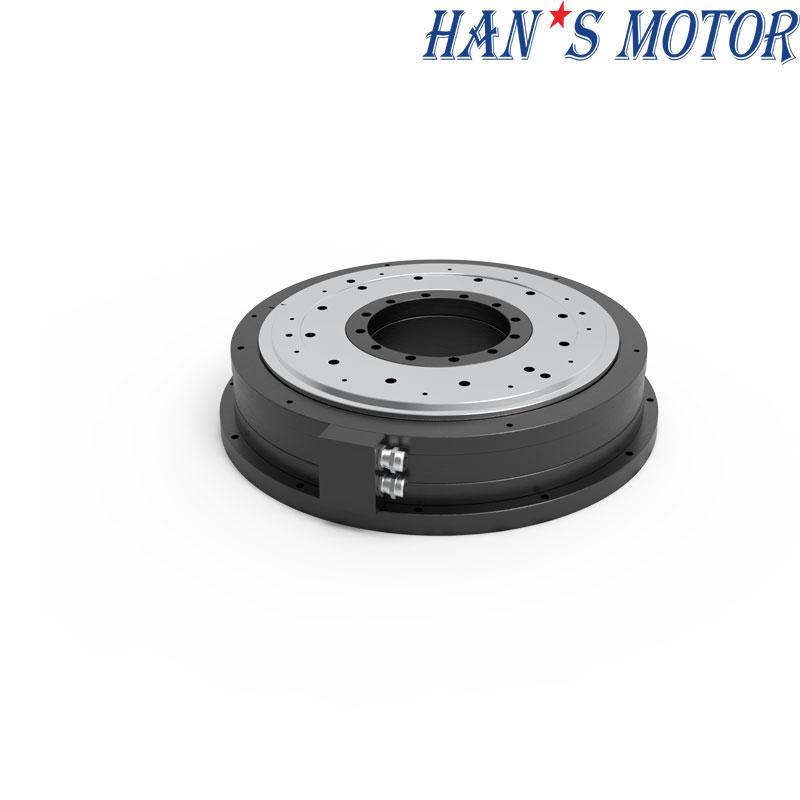

Frame Outer Rotor Torque Motor
This frame outer rotor torque motor offers direct drive motion with high torque output and stable performance. Engineered by Han’s Laser for precision industrial automation. Ideal for systems requiring accurate rotary actuation and space-saving integration.
Brand:
Order(MOQ):
1
Product Detail
Product Specifications
| Motor Model No.：HANS-I-380-D360-H218-T85-1-A | |||
| Performance Parameters | Symbol | Unit | |
| Cable Outlet | 1 | ||
| Outer Diameter | D1 | mm | 360 |
| Center Hole | D2 | mm | 85 |
| Installation Height | H | mm | 218 |
| Continuous torque (Tmax) | Tc | Nm | 380 |
| Peak torque | Tp | Nm | 1100 |
| Vmax,Tc@Vbus=310Vdc | Nmax,Tc | Rpm | 65 |
| Vmax,Tp@Vbus=310Vdc | Nmax,Tp | Rpm | 30 |
| Vmax,0@Vbus=310Vdc | Nmax,0 | Rpm | 80 |
| Encoder (BISS-C) | P/rev | 23bits | |
| Positioning Accuracy | arc sec | ±10/±5 | |
| Repeat Accuracy | arc sec | ±2 | |
| Maximum axial load (recommend) | Fa | N | 3000 |
| Maximum torque load (recommend) | T | Nm | 200 |
| Motor outlet | M | 0.3 | |
| Cable bending radius (within drag chain） | mm | 37.5 | |
| Continuous current (Tmax) | Ic | Arms | 9.5 |
| Peak Current (1s) | Ip | Arms | 28.5 |
| Torque Constant (within 25℃±5℃） | Tf | Nm/Arms | 40.00 |
| Electromotive constant (within 25℃±5℃） | Te | Vrms/rad/s | 13.30 |
| Resistance (within 25℃±5℃） | R | Ω(p-p) | 3.5 |
| Inductance (within 25℃±5℃） | L | mH(p-p) | 3.8 |
| Pole pairs | p | 33 | |
| Max.coil temperature | Tmax | ℃ | 120 |
| Motor Mass | KG | 105 | |
| Mover Mass | Mc | KG | 31 |
| Rotor Moment of Inertia | Jm | Kg*m2 | 0.2743 |
| Axial Runout | mm | 0.05 | |
| Radial Runout | mm | 0.05 |

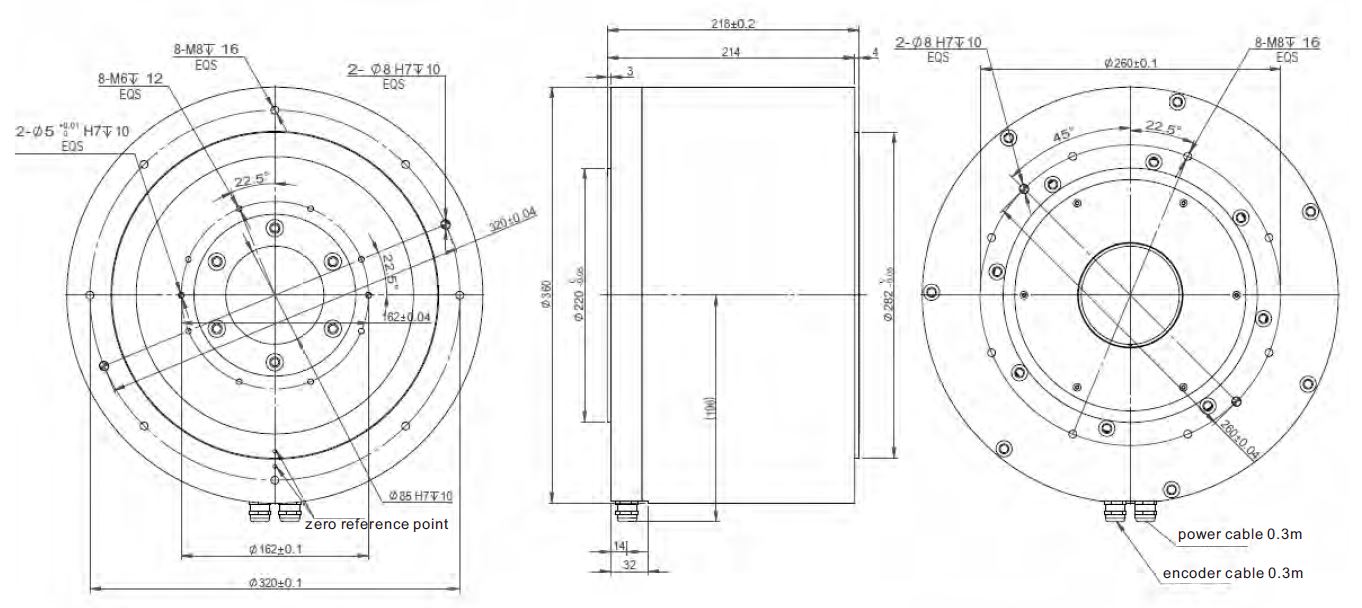

Dimension
Characteristics:
1. High inertia, low speed motion with good stiffness, excellent compact design.
2. Cost-effective optimized solution
3. High Dynamic Performance, high Position Accuracy and ease of use
4. Direct drive motors are very suitable for high speed, acceleration applications with fast starts and stops
5. Advantages of DDR torque motors such as better load inertia matching, ease of control, low noise emission

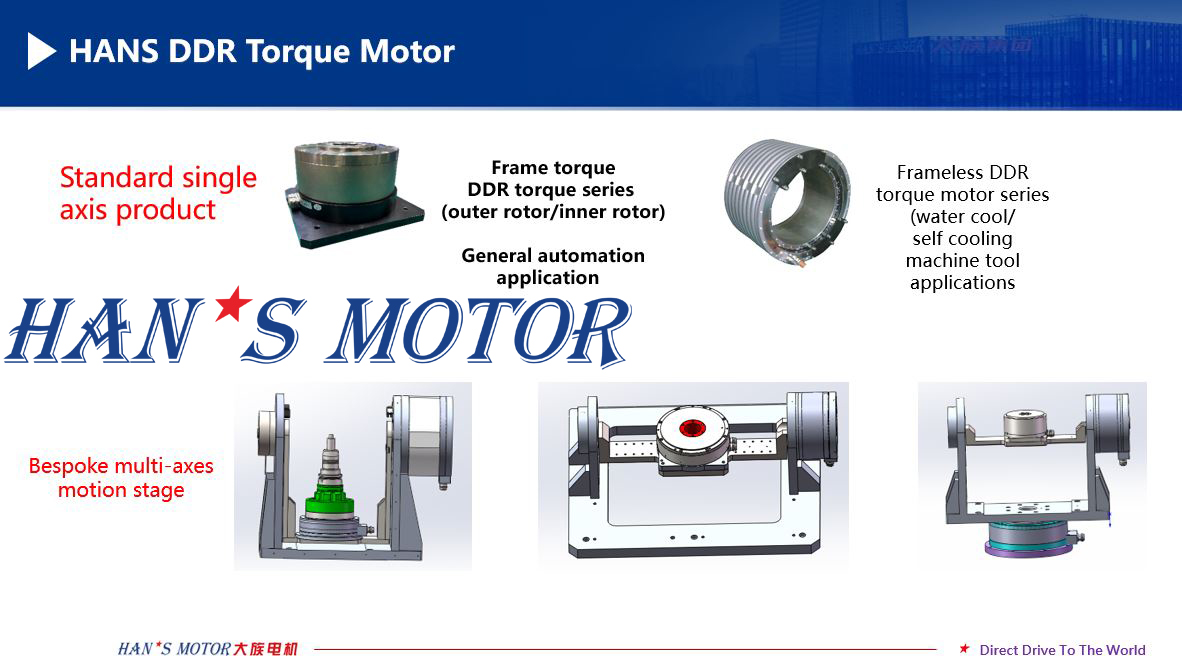

HAN’S MOTOR DDR Torque Motor Products Series.:
Why choose us?
1. Torque motor applications have a wide range of dynamic performance requirements.
Depending on the specifics of system’s duty cycle, the peak torque, continuous torque, or both will drive the selection of a motor.
2. Advanced technology design.: which have been designed specifically for direct drive applications provide excellent control loop quality ensuring optimum stiffness, smooth motion, and excellent velocity control with low torque ripple.
3. Han’s Motor is a global supplier in direct drive technology, ranging from linear motors, torque motors, servo drives, robots to customized motors and other industrial automation solutions.
4. Founded in Shenzhen, China in 2005, Han’s Motor has rapidly grown to the leading company in its domestic market, fully equipped with over 300 dedicated people in R&D, production, supply chain, quality, sales, and support functions.

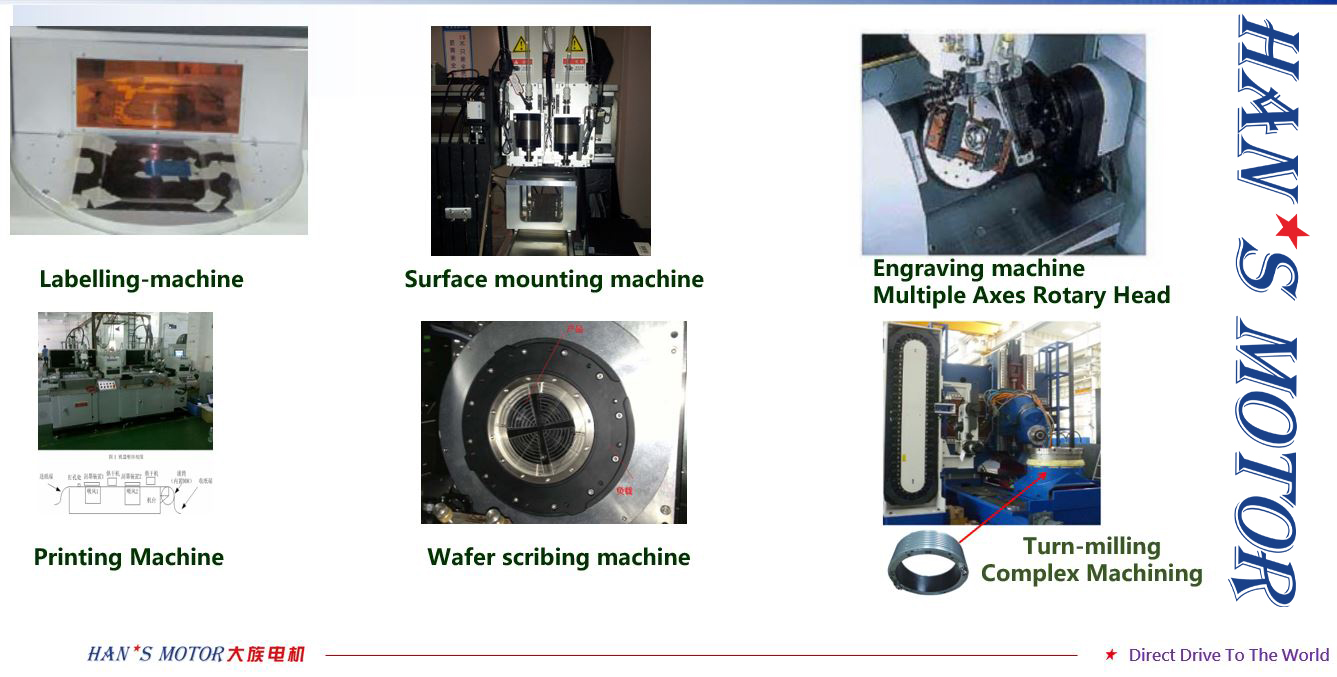

Applications:
Torque motors are used in a wide variety of products,from rotary tables to robotic arms.

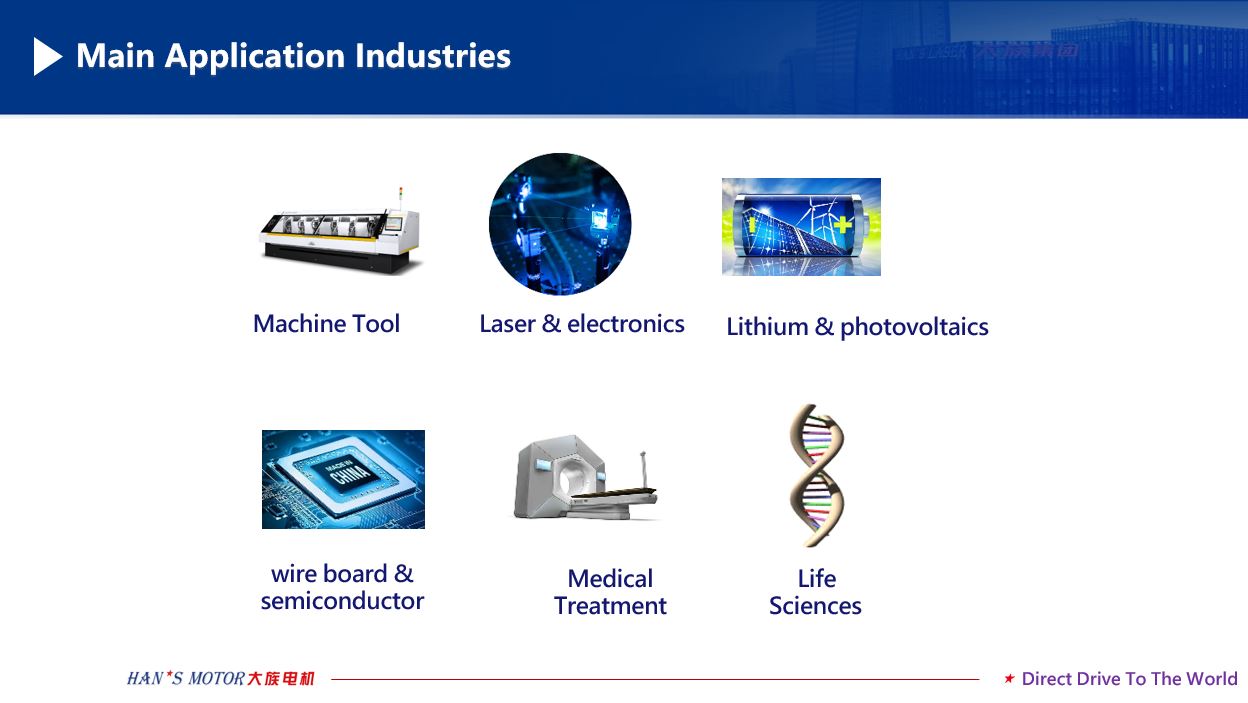

Widely used in Industrial Automation、semiconductor、medical indutries etc.
