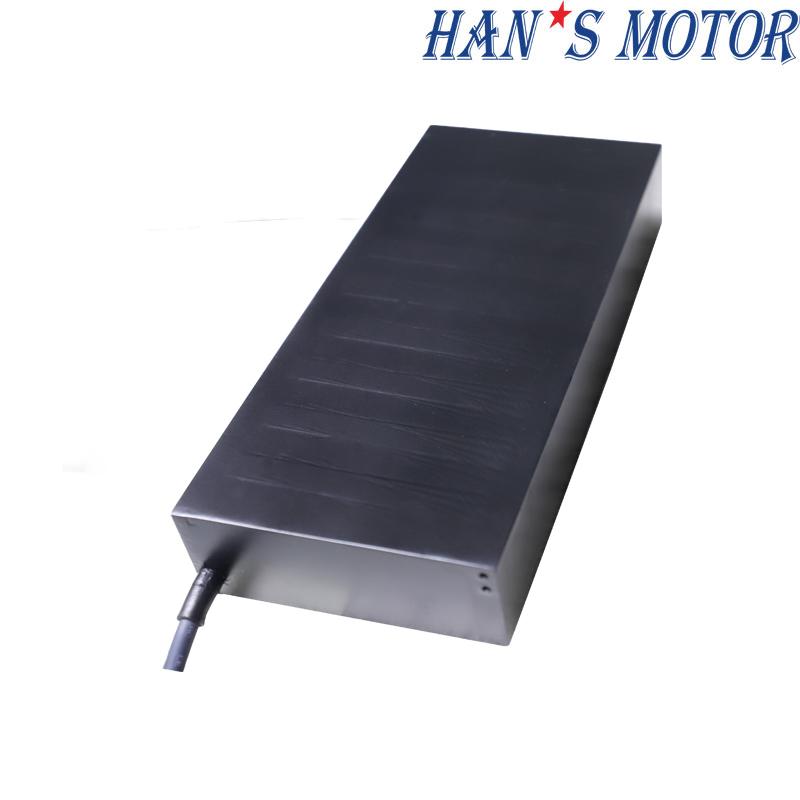

Flat Iron Core Linear Motor
Designed for the PCB industry, the LSMF6-71 flat iron core motor delivers a continuous force of 851N with excellent speed and response time. Its efficient design ensures long service life and thermal balance. Perfect for fast and accurate movement in electronics manufacturing.
Brand:
Order(MOQ):
1
Product Detail
Specifications
| Mover Spec: LSMF610xxxx-x-H-NC-N-C00.5 | 701A-S | 701B-S | 702A-S | 702B-S | 703A-S | 703A-P | 704A-S | 704A-P | ||
| Performance Parameters | Symbol | Units | Series | Series | Series | Series | Series | Parallel | Series | Parallel |
| Continuous Force (Tmax） | Fc | N | 109 | 109 | 226 | 212 | 468 | 468 | 361 | 362 |
| Peak Force | Fp | N | 259 | 259 | 532 | 500 | 1090 | 1090 | 830 | 834 |
| Motor Constant (25℃) | Km25 | N/Sqrt(W) | 15.6 | 16.1 | 23.6 | 23.4 | 34.5 | 35.6 | 25.4 | 30.2 |
| Max.Continuous Power Dissipation | Pc | W | 67 | 63 | 126 | 113 | 252 | 237 | 276 | 198 |
| Continuous Current (Tmax） | Ic | Arms | 6.0 | 2.8 | 6.0 | 4.5 | 6.0 | 12.0 | 3.7 | 8.0 |
| Peak Current (1S) | Ip | Arms | 18.0 | 8.4 | 18.0 | 13.5 | 18.0 | 36.0 | 11.1 | 24.0 |
| Force Constant (25℃，±5%） | Kf | N/Arms | 18.3 | 38.7 | 37.5 | 47.1 | 78.0 | 39.0 | 97.5 | 75.3 |
| Back EMF Constant (25℃，±5%） | Ke | Vrms/m/s | 6.1 | 12.9 | 12.5 | 15.7 | 26.0 | 13.0 | 32.5 | 15.1 |
| Resistance(25℃，±5%）P-P | R | Ω | 0.9 | 3.9 | 1.7 | 2.7 | 3.4 | 0.8 | 9.8 | 1.5 |
| Inductance(25℃，±20%）P-P | L | mH | 11.8 | 53 | 23.6 | 37.4 | 47.2 | 11.8 | 85.0 | 18.2 |
| Max Coil Temperature | Tmax | ℃ | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | 2τ | mm | 42 | 42 | 42 | 42 | 42 | 42 | 42 | 42 |
| Magnetic Attraction | Fa | kN | 0.5 | 0.5 | 1.0 | 1.0 | 2.0 | 2.0 | 1.5 | 1.5 |
| Max.DC Bus Voltage | Ubus | V | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 |
| Vmax,Fc@Vbus=310Vdc | m/s | 15.1 | 7.0 | 7.3 | 5.9 | 3.4 | 7.1 | 2.5 | 6.3 | |
| Vmax,Fp@Vbus=310Vdc | m/s | 7.1 | 3.2 | 3.4 | 2.7 | 1.4 | 3.3 | 0.9 | 3.1 | |
| Vmax,0@Vbus=310Vdc | m/s | 20.5 | 9.7 | 10.0 | 7.9 | 4.8 | 9.6 | 3.8 | 8.3 | |
| Vmax,Fc@Vbus=537Vdc | m/s | 26.6 | 12.4 | 12.9 | 10.5 | 6.1 | 12.7 | 4.9 | 11.3 | |
| Vmax,Fp@Vbus=537Vdc | m/s | 12.5 | 5.8 | 6.1 | 5.0 | 2.8 | 6.1 | 2.2 | 5.7 | |
| Vmax,0@Vbus=537Vdc | m/s | 35.7 | 16.9 | 17.4 | 13.9 | 8.3 | 16.7 | 6.7 | 14.4 | |
| Mover Mass | Mp | Kg | 1.3 | 1.3 | 2.6 | 2.6 | 4.9 | 4.9 | 3.8 | 3.8 |
| Stator Mass within unit length | Ms | Kg/m | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 |
Dimension
| Mover Length | ||||
| Mover model | Mover length L | M | Mover mounting hole A | K |
| LSMF610701A-S-H-NC-N-C00.5 | 101 | 1 | 4 | 22.5 |
| LSMF610702A-S-H-NC-N-C00.5 | 200 | 3 | 8 | 16 |
| LSMF610702B-S-H-NC-N-C00.5 | 200 | 3 | 12 | 16 |
| LSMF610703A-S-H-NC-N-C00.5 | 368 | 6 | 14 | 16 |
| LSMF610703A-P-H-NC-N-C00.5 | 368 | 6 | 14 | 16 |
| LSMF610704A-S-H-NC-N-C00.5 | 278 | 4 | 10 | 27 |
| LSMF610704A-P-H-NC-N-C00.5 | 278 | 4 | 10 | 27 |
Remarks: 1. Standard cable length is 0.5m (with aviation plug), Continuous current Ic≤10A/10＜Ic≤12A/ 12＜Ic≤16A maximum outer diameter of used cable is 7.5mm/8.0mm/9.0mm, the fixed laying minimum bending radius is 3*dmm, the moving minimum bending radius of chain is 5*dmm the cable length and terminal can be customized if there are special requirements.
2. Optional temperature sensor.
| Stator Length | |||
| Stator model | Stator length TL | N | Stator mounting hole B |
| LSMF6201E | 168 | 3 | 8 |
| LSMF6202E | 252 | 5 | 12 |
| LSMF6203E | 420 | 9 | 20 |
Suitable for any mover of this series.
Application case：New Energy Car industry
With the rapid development of linear motor technology, it has penetrated into the various processes of automobile intelligent manufacturing. The stamping equipment supported by linear motor is used for automobile body stamping, welding equipment supported by linear motor is used for auto parts welding, spraying equipment supported by linear motor is used for automobile weight painting,In addition, the laser marking equipment supported by the linear motor is widely used in the marking of automobile keys. The linear motor also has practical application cases in the lithium battery stacking process of new energy vehicles.
Industry Applications:
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
Sample
Contact Us
Experience our expert support, tailored solutions, and reliable global delivery.
Related Products
Features
Semiconductor ironless lienar motor is also called carbon fiber board motor with feature high speed, high acceleration, high thrust density and efficient heat dissipation, enabling stable high-performance operation in semiconductor applications.
Features
FE3 Series Torque motors are designed with industrial-grade quality, optimized for mass production and robust operation in demanding environments. Featuring high torque density, direct-drive architecture, and low maintenance, these motors deliver reliable, precise, and stable performance for industrial automation, robotics, machine tools, and semiconductor equipment. The design supports continuous operation under high load, making it ideal for large-scale industrial applications.
Features
FI Series Torque motors are designed with industrial-grade quality, optimized for mass production and robust operation in demanding environments. Featuring high torque density, direct-drive architecture, and low maintenance, these motors deliver reliable, precise, and stable performance for industrial automation, robotics, machine tools, and semiconductor equipment. The design supports continuous operation under high load, making it ideal for large-scale industrial applications.
Features
FI Series Torque motors are designed with industrial-grade quality, optimized for mass production and robust operation in demanding environments. Featuring high torque density, direct-drive architecture, and low maintenance, these motors deliver reliable, precise, and stable performance for industrial automation, robotics, machine tools, and semiconductor equipment. The design supports continuous operation under high load, making it ideal for large-scale industrial applications.
Features
This linear motor is specially designed for semiconductor packaging equipment, featuring high precision, fast response, and stable performance to meet the demanding requirements of advanced packaging processes.
Features

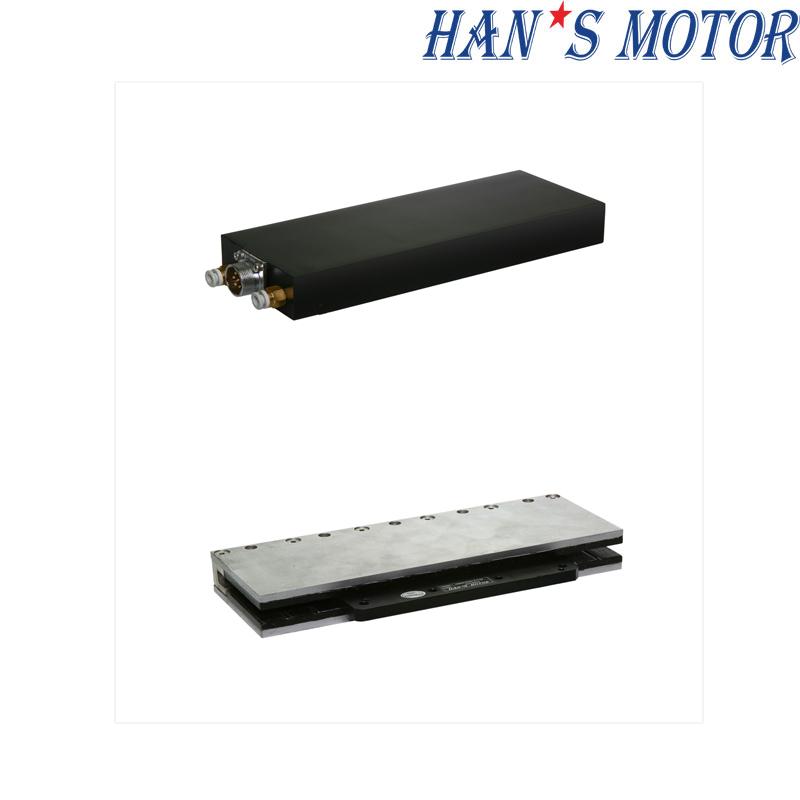

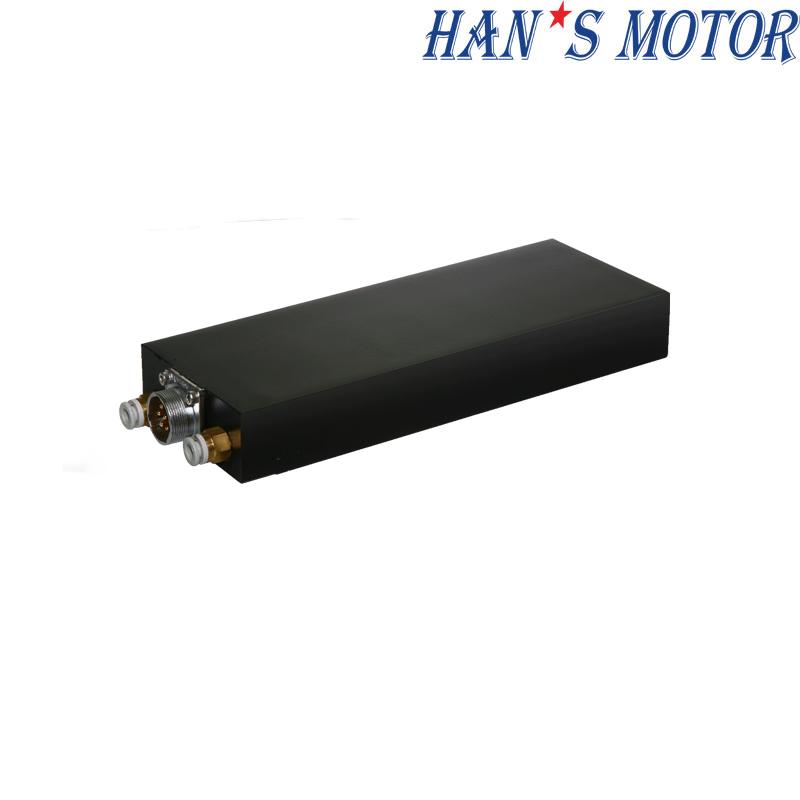

LSMFK series Water-Cooled Ironcore Linear Motors feature high thrust density 10000Nm and efficient heat dissipation, enabling stable high-performance operation in demanding applications.
