Flat Iron Core Linear Motor
The LSMFJ-125 model features a flat iron core linear motor with high positioning accuracy and smooth motion. Designed for automation requiring stable speed and high reliability. Its robust build supports heavy loads and high-speed movement. Suitable for advanced printing and inspection equipment.
Brand:
Order(MOQ):
1
Product Detail
Specifications
| Mover Spec: LSMFJ10xxxx-x-H-NC-N-D00.5 | 104A-S | 204A-P | ||
| Performance Parameters | Symbol | Units | Series | Parallel |
| Continuous Force (Tmax） | Fc | N | 217 | 416 |
| Peak Force | Fp | N | 742 | 1662 |
| Motor Constant (25℃) | Km25 | N/Sqrt(W) | 23.9 | 33.5 |
| Max.Continuous Power Dissipation | Pc | W | 113 | 211 |
| Continuous Current (Tmax） | Ic | Arms | 2.3 | 4.4 |
| Peak Current (1S) | Ip | Arms | 9.0 | 18.0 |
| Force Constant (25℃，±5%） | Kf | N/Arms | 94.5 | 94.5 |
| Back EMF Constant (25℃，±5%） | Ke | Vrms/m/s | 31.5 | 31.5 |
| Resistance(25℃，±5%）P-P | R | Ω | 10.4 | 5.3 |
| Inductance(25℃，±20%）P-P | L | mH | 37.2 | 16.8 |
| Max Coil Temperature | Tmax | ℃ | 120 | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | 2τ | mm | 20 | 20 |
| Magnetic Attraction | Fa | kN | 1.2 | 2.4 |
| Max.DC Bus Voltage | Ubus | V | 600 | 600 |
| Vmax,Fc@Vbus=310Vdc | m/s | 3.2 | 3.2 | |
| Vmax,Fp@Vbus=310Vdc | m/s | 1.2 | 1.2 | |
| Vmax,0@Vbus=310Vdc | m/s | 3.9 | 3.9 | |
| Vmax,Fc@Vbus=537Vdc | m/s | 5.9 | 5.9 | |
| Vmax,Fp@Vbus=537Vdc | m/s | 2.8 | 2.8 | |
| Vmax,0@Vbus=537Vdc | m/s | 6.9 | 6.9 | |
| Mover Mass | Mp | Kg | 1.6 | 3.0 |
| Stator Mass within unit length | Ms | Kg/m | 8.8 | 8.8 |

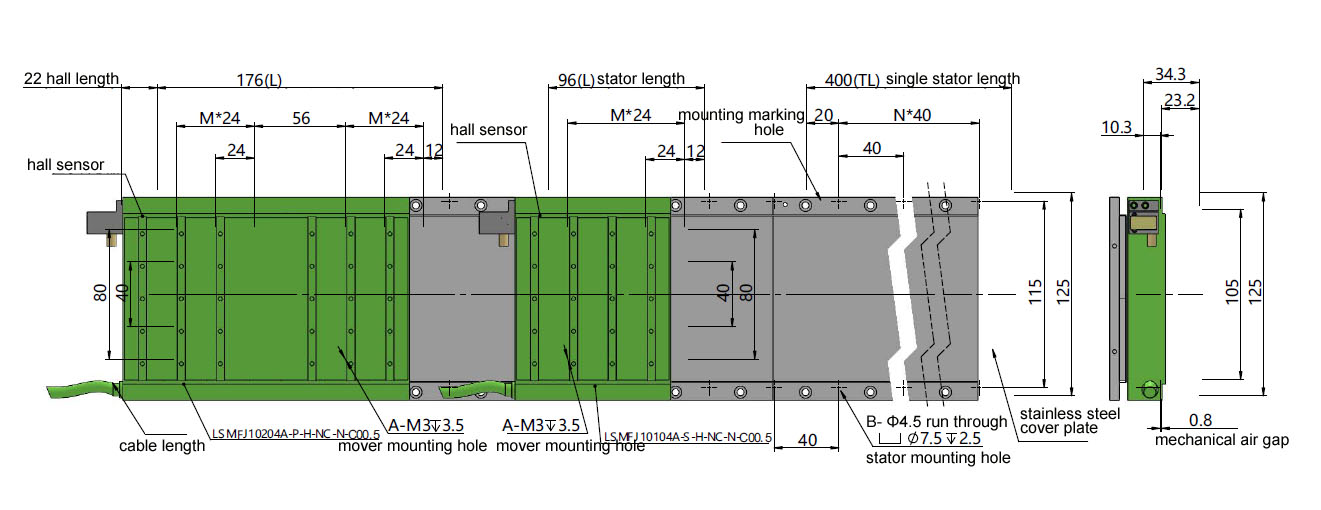

Dimension
| Mover Length | |||
| Mover model | Mover length L | M | Mover mounting hole A |
| LSMFJ10104A-S-H-NC-N-C00.5 | 96 | 3 | 20 |
| LSMFJ10204A-P-H-NC-N-C00.5 | 176 | 2 | 30 |
Remarks: 1. Standard cable length is 0.5m (with aviation plug), Continuous current Ic≤10A/10＜Ic≤12A/ 12＜Ic≤16A maximum outer diameter of used cable is 7.5mm/8.0mm/9.0mm, the fixed laying minimum bending radius is 3*dmm, the moving minimum bending radius of chain is 5*dmm the cable length and terminal can be customized if there are special requirements.
2. Optional temperature sensor.
| Stator Length | |||
| Stator model | Stator length TL | N | Stator mounting hole B |
| LSMFJ2A-W125-L40 | 40 | 0 | 2 |
| LSMFJ2A-W125-L80 | 80 | 1 | 4 |
| LSMFJ2A-W125-L200 | 200 | 4 | 10 |
| LSMFJ2A-W125-L320 | 320 | 7 | 16 |
| LSMFJ2A-W125-L400 | 400 | 9 | 20 |
Suitable for any mover of this series.
Advantages：
1. Direct drive
direct use of rigid connection between motor and the driven workpiece, without screw, gear, reducer and other intermediate links, to the greatest extent to avoid the drive screw drive system exists in reverse clearance, inertia, friction and lack of rigidity.
2. High speed
The normal peak speed can reach 5-10m/s; while the speed of ball screw is generally limited to 1m/s, the wear is also high.
3. High acceleration
Because no contact friction between mover and stator, linear motor can achieve higher acceleration. The larger linear motor has the ability to achieve acceleration of 3-5G, and the smaller linear motor can achieve more than 30-50g.
4. High precision
Due to the use of direct drive technology, the error caused by the intermediate mechanical drive system is greatly reduced. Using high-precision grating detection to position, improve the accuracy of system, can make the repeated positioning accuracy within 1um, meet the application of ultra-precision occasions.
5. Wide range of motion speed
The speed of linear motor can be realized at least 1um/s and at most 10m/s to meet the needs of various occasions.
Industry Applications:
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
Sample
Contact Us
Experience our expert support, tailored solutions, and reliable global delivery.
Related Products
Features
Semiconductor ironless lienar motor is also called carbon fiber board motor with feature high speed, high acceleration, high thrust density and efficient heat dissipation, enabling stable high-performance operation in semiconductor applications.
Features
FE3 Series Torque motors are designed with industrial-grade quality, optimized for mass production and robust operation in demanding environments. Featuring high torque density, direct-drive architecture, and low maintenance, these motors deliver reliable, precise, and stable performance for industrial automation, robotics, machine tools, and semiconductor equipment. The design supports continuous operation under high load, making it ideal for large-scale industrial applications.
Features
FI Series Torque motors are designed with industrial-grade quality, optimized for mass production and robust operation in demanding environments. Featuring high torque density, direct-drive architecture, and low maintenance, these motors deliver reliable, precise, and stable performance for industrial automation, robotics, machine tools, and semiconductor equipment. The design supports continuous operation under high load, making it ideal for large-scale industrial applications.
Features
FI Series Torque motors are designed with industrial-grade quality, optimized for mass production and robust operation in demanding environments. Featuring high torque density, direct-drive architecture, and low maintenance, these motors deliver reliable, precise, and stable performance for industrial automation, robotics, machine tools, and semiconductor equipment. The design supports continuous operation under high load, making it ideal for large-scale industrial applications.
Features
This linear motor is specially designed for semiconductor packaging equipment, featuring high precision, fast response, and stable performance to meet the demanding requirements of advanced packaging processes.
Features

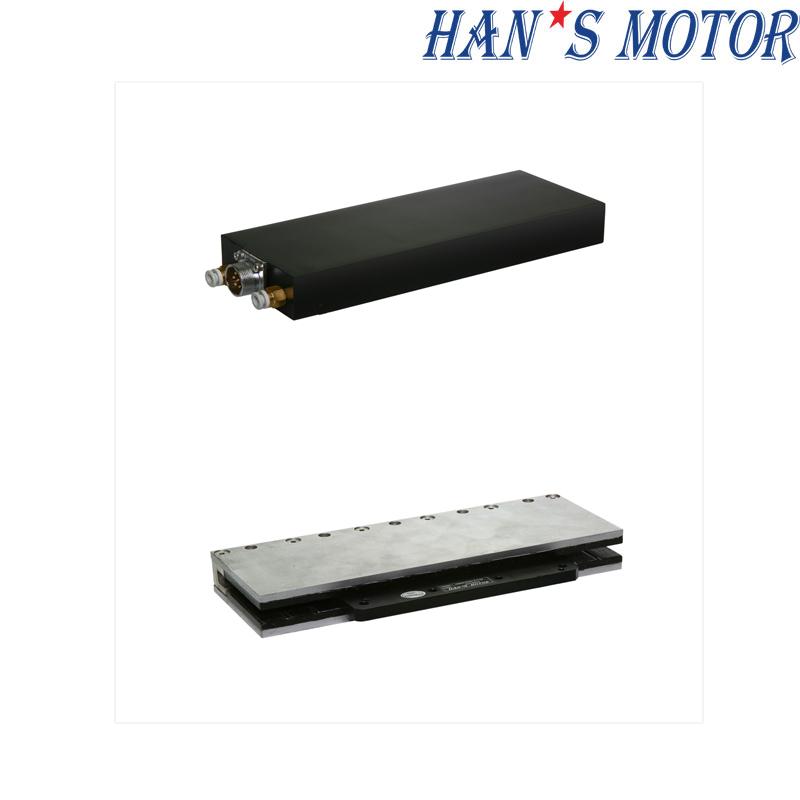

LSMFK series Water-Cooled Ironcore Linear Motors feature high thrust density 10000Nm and efficient heat dissipation, enabling stable high-performance operation in demanding applications.
Features

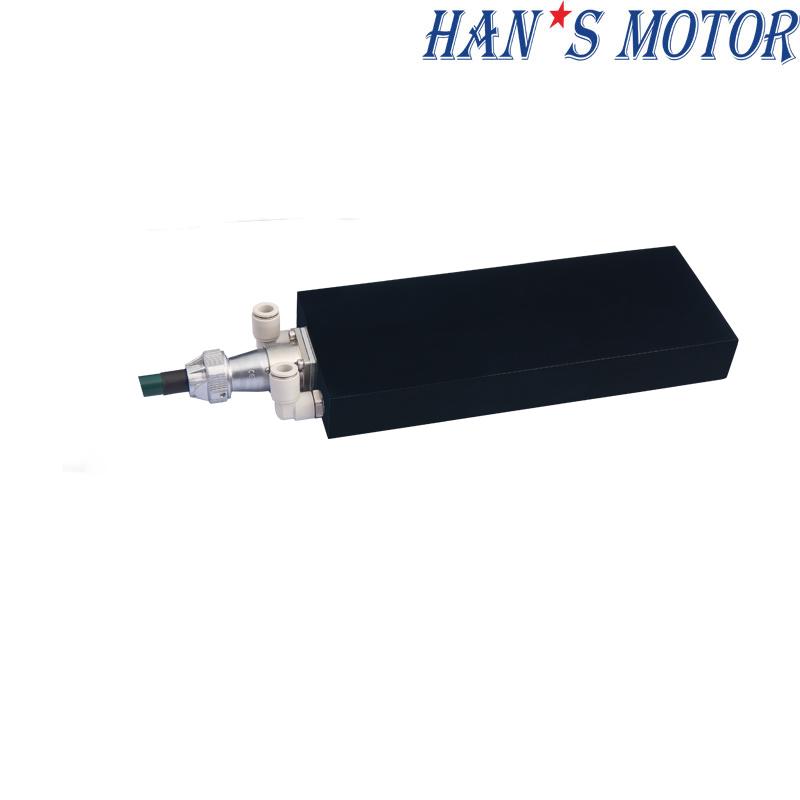

Water-Cooled Ironcore Linear Motors feature high thrust density and efficient heat dissipation, enabling stable high-performance operation in demanding applications.
