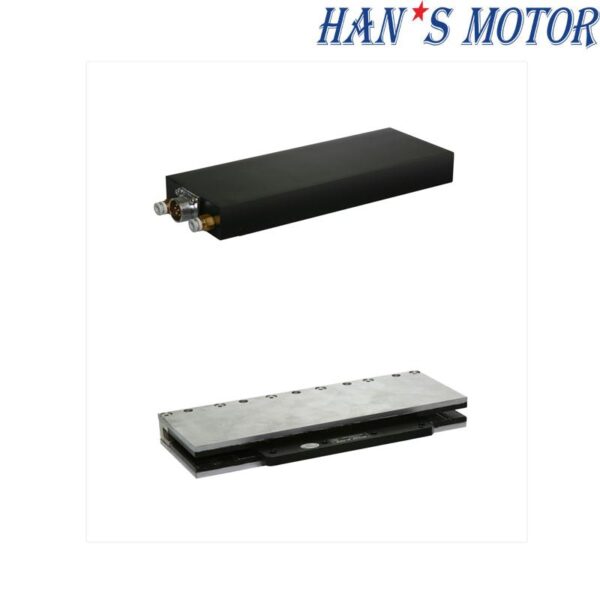

Flat Iron Core Linear Motor
Designed for PCB drilling machines, the LSMFJ-75 flat iron core motor offers strong thrust and natural cooling. It delivers high precision and fast response in continuous production environments. Low-profile design enables easy integration into compact systems. Ideal for electronics manufacturing lines.
Brand:
Order(MOQ):
1
Product Detail
Specifications
| Mover Spec: LSMFJ10xxxx-x-H-NC-N-D00.5 | 101A-S | 202A-S | 202A-P | ||
| Performance Parameters | Symbol | Units | Series | Series | Parallel |
| Continuous Force (Tmax） | Fc | N | 109 | 208 | 208 |
| Peak Force | Fp | N | 378 | 831 | 831 |
| Motor Constant (25℃) | Km25 | N/Sqrt(W) | 16.1 | 22.7 | 22.7 |
| Max.Continuous Power Dissipation | Pc | W | 63 | 116 | 116 |
| Continuous Current (Tmax） | Ic | Arms | 2.3 | 2.2 | 4.4 |
| Peak Current (1S) | Ip | Arms | 9.0 | 9.0 | 18.0 |
| Force Constant (25℃，±5%） | Kf | N/Arms | 47.4 | 94.8 | 47.4 |
| Back EMF Constant (25℃，±5%） | Ke | Vrms/m/s | 15.8 | 31.6 | 15.8 |
| Resistance(25℃，±5%）P-P | R | Ω | 5.8 | 11.6 | 2.9 |
| Inductance(25℃，±20%）P-P | L | mH | 21.0 | 40.0 | 10.5 |
| Max Coil Temperature | Tmax | ℃ | 120 | 120 | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | 2τ | mm | 20 | 20 | 20 |
| Magnetic Attraction | Fa | kN | 0.7 | 1.2 | 1.2 |
| Max.DC Bus Voltage | Ubus | V | 600 | 600 | 600 |
| Vmax,Fc@Vbus=310Vdc | m/s | 6.6 | 3.1 | 6.7 | |
| Vmax,Fp@Vbus=310Vdc | m/s | 3.0 | 1.1 | 3.0 | |
| Vmax,0@Vbus=310Vdc | m/s | 7.9 | 3.9 | 7.9 | |
| Vmax,Fc@Vbus=537Vdc | m/s | 11.9 | 5.8 | 12.0 | |
| Vmax,Fp@Vbus=537Vdc | m/s | 5.9 | 2.6 | 5.9 | |
| Vmax,0@Vbus=537Vdc | m/s | 13.8 | 6.9 | 13.8 | |
| Mover Mass | Mp | Kg | 0.9 | 1.7 | 1.7 |
| Stator Mass within unit length | Ms | Kg/m | 5.0 | 5.0 | 5.0 |

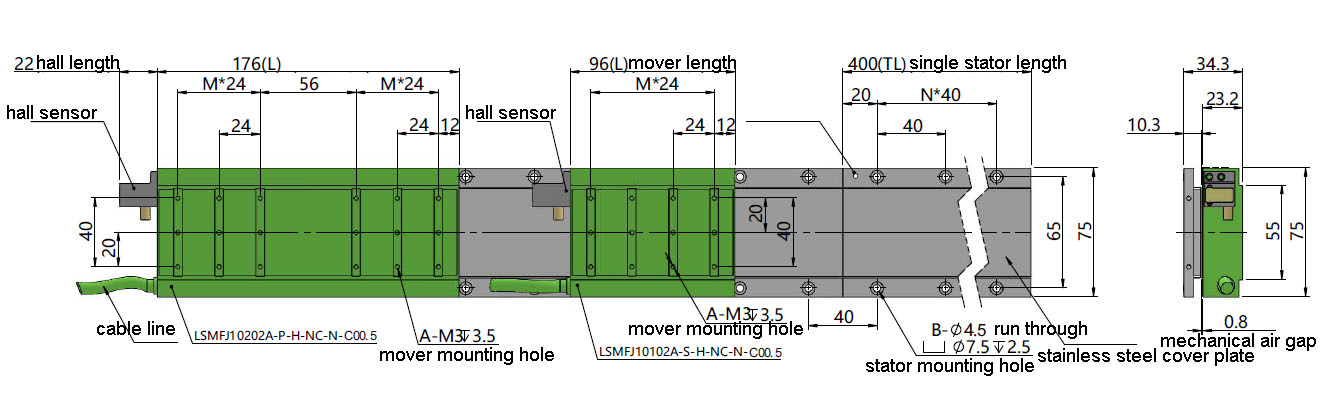

Dimension
| Mover Length | |||
| Mover model | Mover length L | M | Mover mounting hole A |
| LSMFJ10102A-S-H-NC-N-C00.5 | 96 | 3 | 12 |
| LSMFJ10202A-S-H-NC-N-C00.5 | 176 | 2 | 18 |
| LSMFJ10202A-P-H-NC-N-C00.5 | 176 | 2 | 18 |
Remarks: 1. Standard cable length is 0.5m (with aviation plug), Continuous current Ic≤10A/10＜Ic≤12A/ 12＜Ic≤16A maximum outer diameter of used cable is 7.5mm/8.0mm/9.0mm, the fixed laying minimum bending radius is 3*dmm, the moving minimum bending radius of chain is 5*dmm the cable length and terminal can be customized if there are special requirements.
2. Optional temperature sensor.
| Stator Length | |||
| Stator model | Stator length TL | N | Stator mounting hole B |
| LSMFJ2A-W75-L40 | 40 | 0 | 2 |
| LSMFJ2A-W75-L80 | 80 | 1 | 4 |
| LSMFJ2A-W75-L200 | 200 | 4 | 10 |
| LSMFJ2A-W75-L320 | 320 | 7 | 16 |
| LSMFJ2A-W75-L400 | 400 | 9 | 20 |
Suitable for any mover of this series.

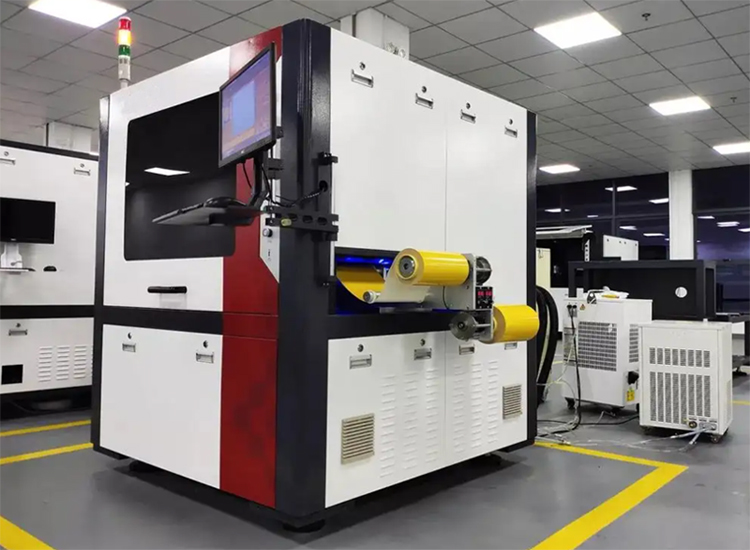

Application Case：Precision laser cutting industry
Linear motor for high-end laser cutting industry has been more common, such as electronic industry PCB board processing. With the development of global intelligence, PCB board processing in electronic industry has put forward higher requirements for processing precision. The combination of linear motor and advanced laser processing technology perfectly solves this problem.
