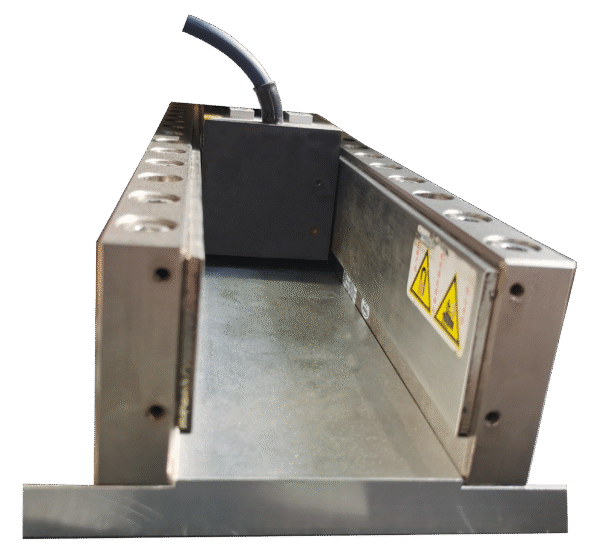

Double-Sided Magnet Ironcore Linear Motor
LSMD2 series double-sided magnet ironcore linear motor adopt gas cooling technology, high thrust with superior acceleration, cogging torque reduction technology, built-in thermal protection, and cancellation of unbalanced electromagnetic forces in demanding applications.
Brand:
Order(MOQ):
1
Product Detail
Feature:
1. High thrust density
Ironcore design delivers large continuous force.
2. Superior cooling performance
Integrated gas cooling techonology significantly reduces temperature rise for stable long-term operation.
3. High dynamic response
Supports high speed, high acceleration, and frequent reciprocating motion.
4. Energy saving and low noise
Equipped with cogging force suppression technology, suitable for cleanroom environments.
5. Wide applicability
Maintains performance even under high power density or high temperature conditions.
Application:
These motors are widely used in semiconductor equipment, high-speed laser cutting machines, precision machine tools, and industrial automation systems, especially in high-speed handling scenarios that demand both stability and efficiency.
Specification:
| Mover Spec.：LSMD210xxxxx-x-H-AC-P-C00.5 | 601A-P2 | ||
| PERFORMANCE PARAMETERS | Symbol | Unit | |
| Continuous Force (Tmax） | Fc | N | 670 |
| Peak Force | Fp | N | 1700 |
| Motor Constant | Km | N/Sqrt(W) | 37.9 |
| Max.Continuous Power Dissipation | Pc | W | 429 |
| Continuous Current (Tmax） | Ic | Arms | 8.2 |
| Peak Current (1S) | Ip | Arms | 24.0 |
| Force Constant (25℃，±5%） | Kf | N/Arms | 81.9 |
| Back EMF Constant (25℃，±5%） | Ke | Vrms/m/s | 27.2 |
| Electrical Resistance(25℃，±5%）P-P | R | Ω | 3.1 |
| Inductance(25℃，±20%）P-P | L | mH | 13.7 |
| Max Coil Temperature | Tmax | ℃ | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | 2τ | mm | 20.0 |
| Magnetic Attraction | Fa | kN | 0.0 |
| Max.DC Bus Voltage | Ubus | V | 600 |
| Vmax,Fc@Vbus=310Vdc | Vmax,Fc | m/s | 3.3 |
| Vmax,Fp@Vbus=310Vdc | Vmax,Fp | m/s | 1.5 |
| Vmax,0@Vbus=310Vdc | Vmax,0 | m/s | 4.6 |
| Vmax,Fc@Vbus=537Vdc | Vmax,Fc | m/s | 6.2 |
| Vmax,Fp@Vbus=537Vdc | Vmax,Fp | m/s | 3.2 |
| Vmax,0@Vbus=537Vdc | Vmax,0 | m/s | 8.0 |
| Mover Mass | Mp | Kg | 4.3 |
| Stator Mass within unit length | Ms | Kg/m | 3.7 |
LSMD2 Dimension drawing
| Mover Dimension | ||
| Mover Model | Mover Length L | Mover mounting hole A |
| LSMD210601A-P2-H-AC-P-C00.5 | 260 | 10 |
Remarks:
1. Standard cable length is 0.5m (with C-type aviation plug), moving minimum bending radius within chain is 37.5; the cable length and terminal can be customized if there are special requirements;
2. Optional temperature sensor.
| Stator Dimension | |||
| Stator Model | Stator Length TL | N | Stator mounting hole B |
| LSMD2B-W45-L80 | 80 | 1 | 2 |
| LSMD2B-W45-L200 | 200 | 4 | 5 |
| LSMD2B-W45-L400 | 400 | 9 | 10 |
Suitable for any mover of this series, and stator installation mode can be selected
