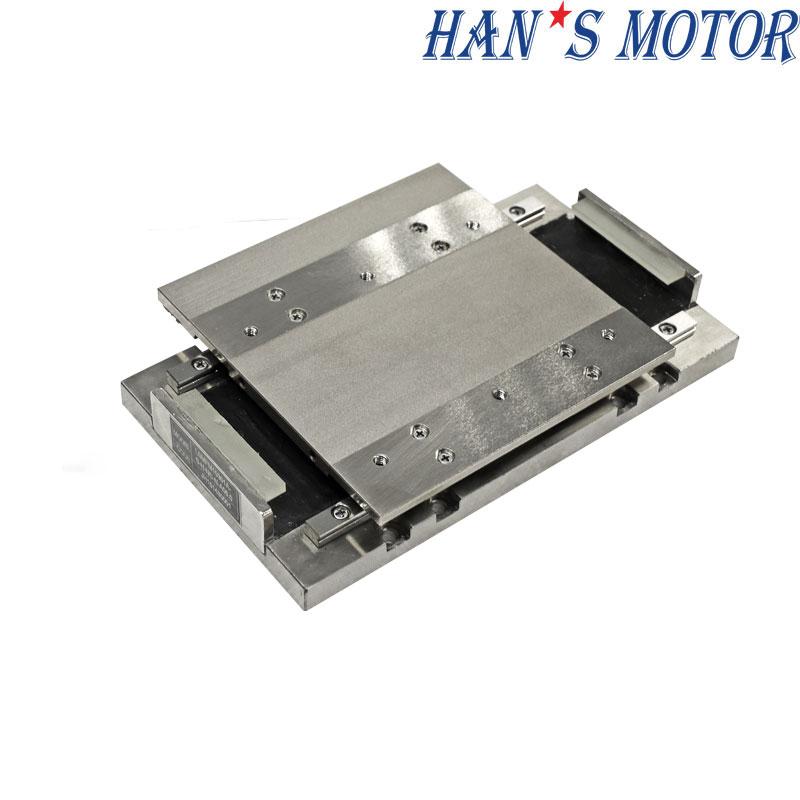

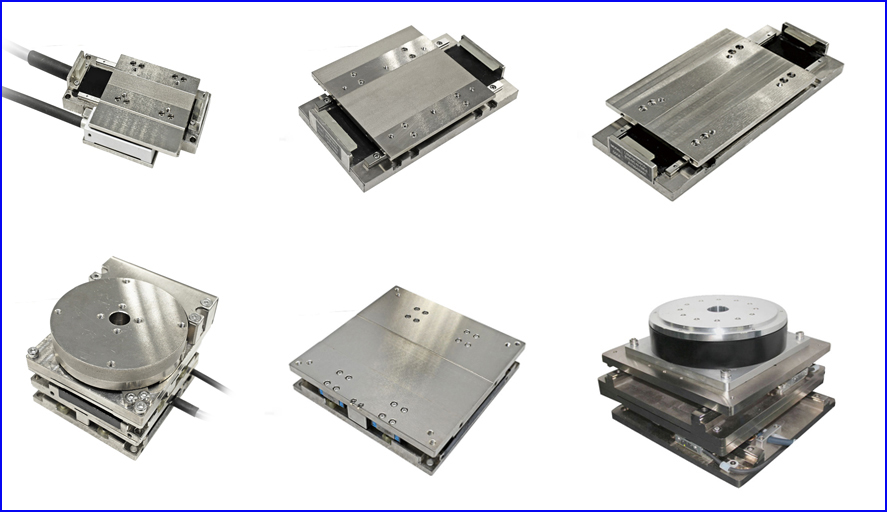

Direct Drive Miniature Linear Stage
This miniature stage offers direct drive operation for short-travel and high-frequency movement. It delivers fast acceleration with low maintenance needs. Ideal for repetitive operations in automated optical or electronic systems. The compact frame reduces system complexity. Suitable for lab research, micro-alignment, and embedded motion control.
Brand:
Order(MOQ):
1
Product Detail
Characteristic:
1. Adopt moving magnet flat linear motor;
2. Repeat accuracy up to ±1um;
3. XY cross stage can be assembled arbitrarily;
4. Built-in grating or magnetic grating, 0.1μm, 0.5μm, 1μm resolutions for selection;
5. Small size and open structure, suitable for light load and high precision occasions;
Motor and Stage Specifications
| Model： | LMA55-25-XXX–A | |
| G01 | Grating feedback, resolution: 0.1μm | |
| G05 | Grating feedback, resolution: 0.5μm | |
| Motor specifications | ||
| Units | Value | |
| Continuous Force (Tmax） | N | 8 |
| Peak Force | N | 32 |
| Motor Constant | N√W | 1.74 |
| Max.Continuous Power Dissipation | W | 21.1 |
| Continuous Current (Tmax） | Arms | 0.8 |
| Peak Current (1S) | Arms | 3.2 |
| Force Constant (25℃，±5%） | N/Arms | 10.0 |
| Back EMF Constant (25℃，±5%） | Vrms/m/s | 3.3 |
| Electrical Resistance(25℃，±5%）P-P | Ω | 15.7 |
| Inductance(25℃，±20%）P-P | μm | 0.43 |
| Max Coil Temperature | ℃ | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | mm | 36 |
| Magnetic Attraction | N | 84 |
| Stage specifications | ||
| Units | Value | |
| Max. Load | kg | 3.5 |
| Effective Stroke | mm | 25 |
| Resolution | μm | 0.1 |
| Max.Speed（1） | mm/s | 700 |
| Repeat accuracy | μm | ±0.5 |
| Weight | kg | 0.5 |
Working environment temperature and humidity | 0-40℃、20-80%RH | |

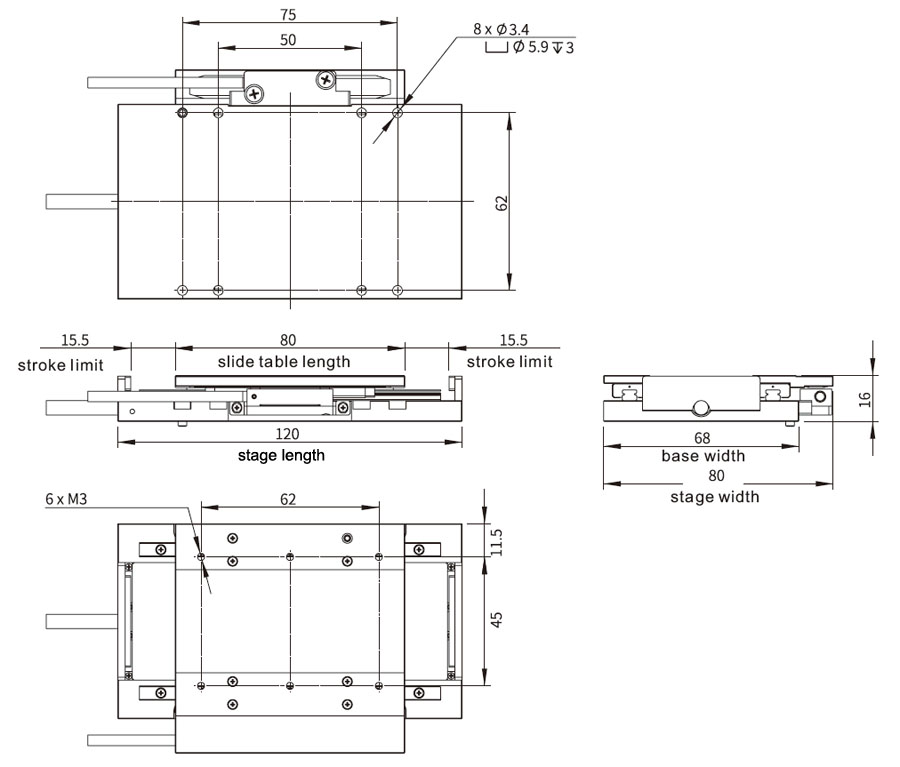

Installation dimensions
