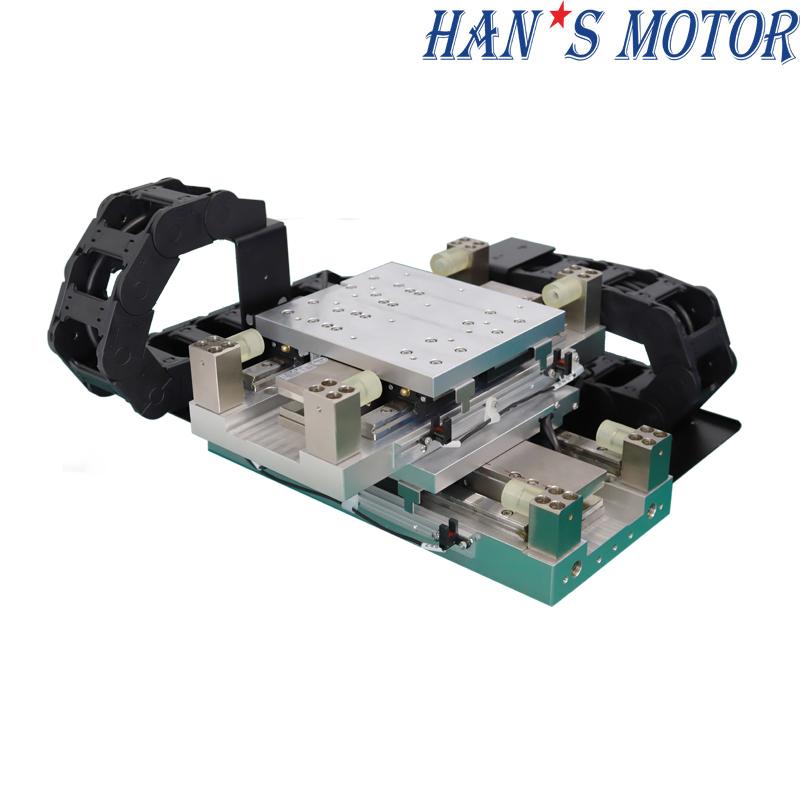

Direct Drive Linear Motion Stage
This direct drive linear stage is built for high-speed motion with low noise and no mechanical transmission. Its integrated structure improves efficiency and accuracy. Widely applied in precision equipment and automated production systems.
Brand:
Order(MOQ):
1
Product Detail
Product Specifications
Motor Model/Parameter
| Motor Parameters | ||
| Performance | Unit | Data |
| Continuous Force (Tmax） | N | 120 |
| Peak Force | N | 900 |
| Max. Load | kg | 90 |
| Effective Stroke | mm | 100-2500 |
| Resolution | μm | 0.5 |
| Max.Speed（1） | mm/s | 2000 |
| Repeat accuracy | μm | ±1 |
| Weight | kg | 4.5 |
| Working environment temperature and humidity | 0-40℃、20-80%RH | |
Performance
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 6 | 8 | 8 | 10 | 10 | 12 | 14 | 14 | 16 | 18 | 18 | 20 |
| N | 2 | 3 | 3 | 4 | 4 | 5 | 6 | 6 | 7 | 8 | 8 | 9 |
| Stage Total Length (mm) | 470 | 570 | 670 | 770 | 870 | 970 | 1070 | 1170 | 1270 | 1370 | 1470 | 1570 |
Note (1): According to the actual load, the maximum speed maybe cannot be reached,
so the specific speed should be communicated with the engineer
Dimension
Characteristics:
1. Speed: Direct drive technology can help maximize the productivity of your machine and meet application requirements.
2. Precision, powerful, excellent performance and reliable quality, the products involved in a wide range of applications, such as packaging, printing, textile, semiconductor production, and assembly industries.
3. Improve Machine Performance positioning accuracy, speed regulation, and reduced energy usage.
Why choose us?
Q1: What’s property of your company?
A: SHENZHEN HAN’S MOTOR S&T CO.,LTD. is manufacturer with own R&D, production and sales, a subsidiary of Han’s Laser (Stock Code: 002008), it becomes the world’s famous laser equipment manufacturer and the flagship of Chinese national laser industry
Q2: How long is your delivery time?
A: 20 working days for general production, shipment would be arranged immediately once payment is received.
Q3: Do you have products in stock?
A2: Some products are available in stock and can be delivered within 10 days.
Q4: which payment method is acceptable?
A4: T/T
Q5: What’s your warranty terms?
A: 12 months on the parts of product, please contact us for more details.
E-mail.: zhangk141204@hanslaser.com

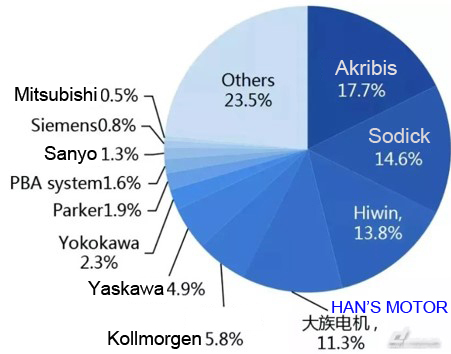

Achievements as national “Specialized Refinement Differential Innovation” Enterprise
for the leader of linear motor market share.
Applications:
Laser cutting machine, laser engraving machine, glue dispenser, solder machine, semiconductor machinery, sliding platform, measuring machine, SMT equipment, printing machinery, paper machinery, textile machinery,
food machinery, medical equipment, high speed-transportation equipment, etc.

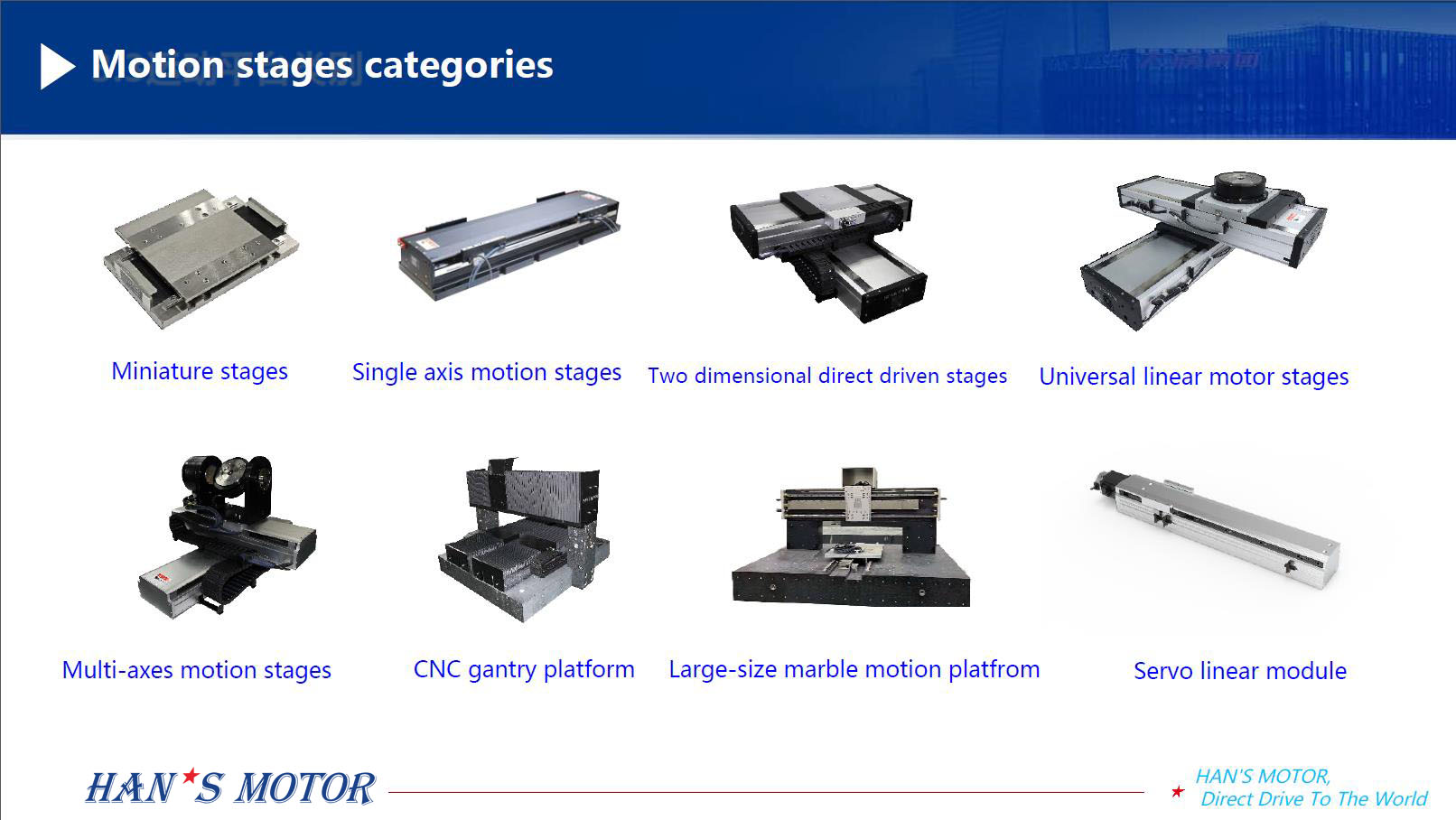

HAN’S Motor Motion Stages Products Series:
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
Sample
