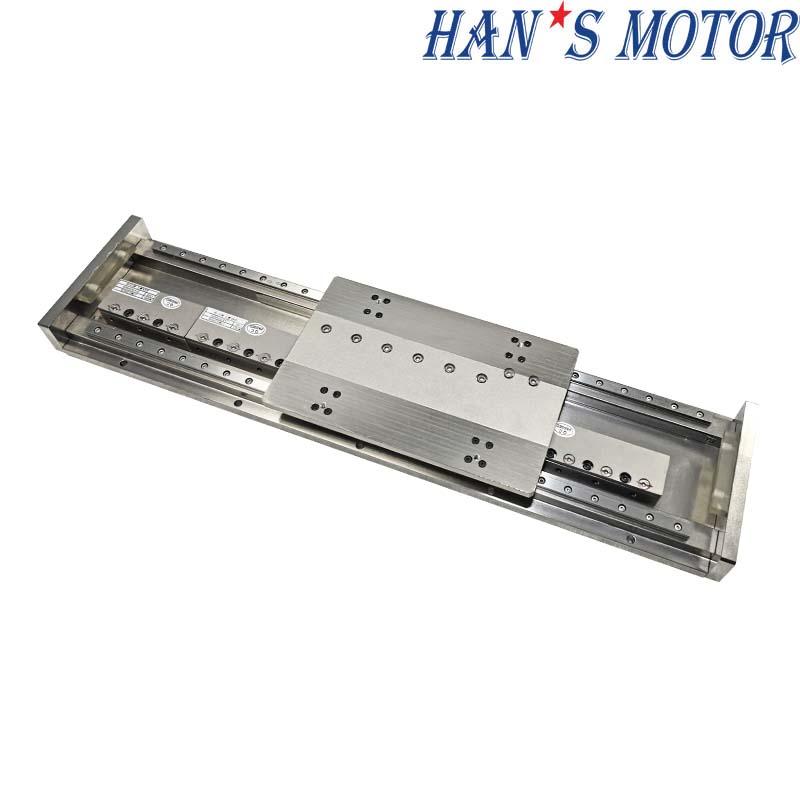

Direct Drive CNC Motorized Platform
This CNC platform features direct drive motors with high-precision linear guides. It is designed for consistent accuracy and long service life. The structure supports high dynamic response and stable load handling. Suitable for machining, testing, and laser cutting platforms. Easily integrates into industrial automation frameworks.
Brand:
Order(MOQ):
1
Product Detail
Product Specifications
Motor Model/Parameter
| Motor Parameters | ||
| Performance | Unit | Data |
| Continuous Force (Tmax） | N | 15 |
| Peak Force | N | 150 |
| Max. Load | kg | 5 |
| Effective Stroke | mm | 200 |
| Resolution | μm | 0.1 |
| Max.Speed | mm/s | 700 |
| Repeat accuracy | μm | ±0.6 |
| Weight | kg | 3.5 |
| Working environment temperature and humidity | 0-40℃、20-80%RH | |
Stage Performance Paramater
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 6 | 10 | 14 | 14 | 18 | 18 | 22 | 26 | 26 | 30 | 34 | 34 |
| N | 1 | 2 | 3 | 3 | 4 | 4 | 5 | 6 | 6 | 7 | 8 | 8 |
| Stage Total Length (mm) | 320 | 420 | 520 | 620 | 720 | 820 | 920 | 1020 | 1120 | 1220 | 1320 | 1420 |
Note (1): According to the actual load, the maximum speed maybe cannot be reached, so the specific speed should be communicated with the engineer

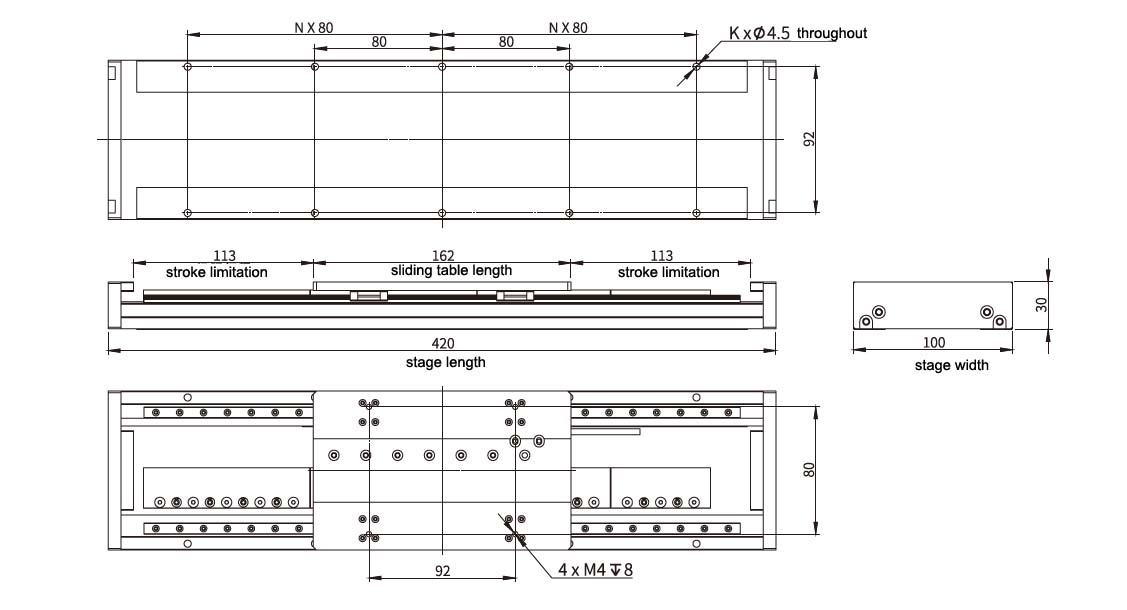

Dimension
Characteristics:
Repeat accuracy up to ±1um;
Small size and simple structure, which is suitable for light load and high precision occasions;
Quickly assemble to XY cross stages;
High precision motion stage, widely used for high precision accuracy movements, which includes linear motion, vertical motion axes, pitch rotation and rotary motion etc.
Why choose us?
Selected Materials
Choosing high-quality materials with strict test according to Quality Management System
Excellent service
Pre-sales call from expert engineer, and confirm the design by drawings with detailed specifications to complete production, debugging and delivery in time.
Quality &Inventory Management
Incoming materials test and defective selections to ensure high-level qualified products.
Sufficient supply of stocks to realize prompt delivery.

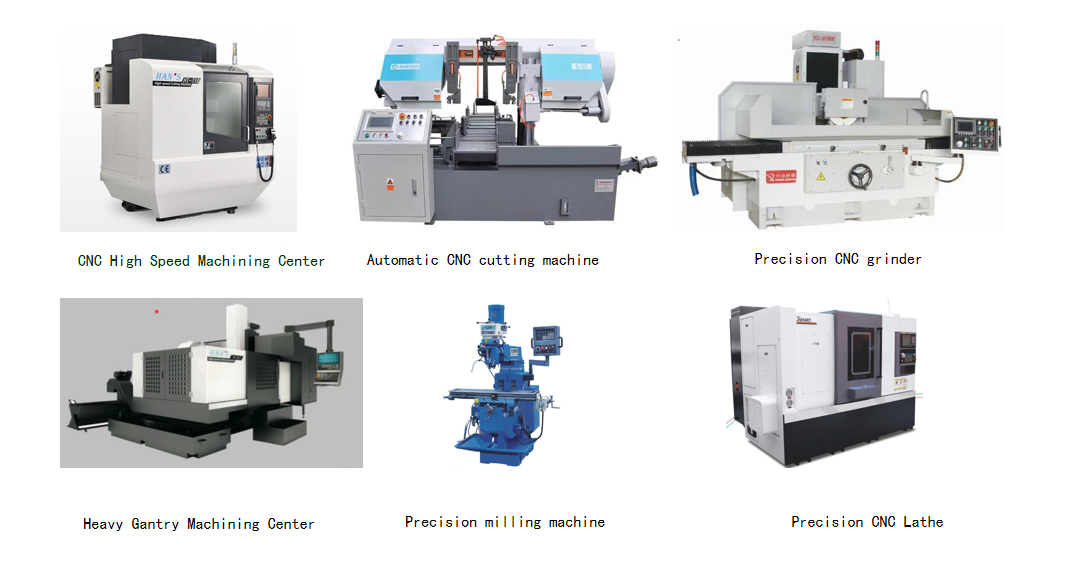

Applications:
Semiconductor equipment, LCD/LED manufacturing equipment, Laser cutting & engraving machines, CNC machining center, Material handling equipment etc….
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
Sample
