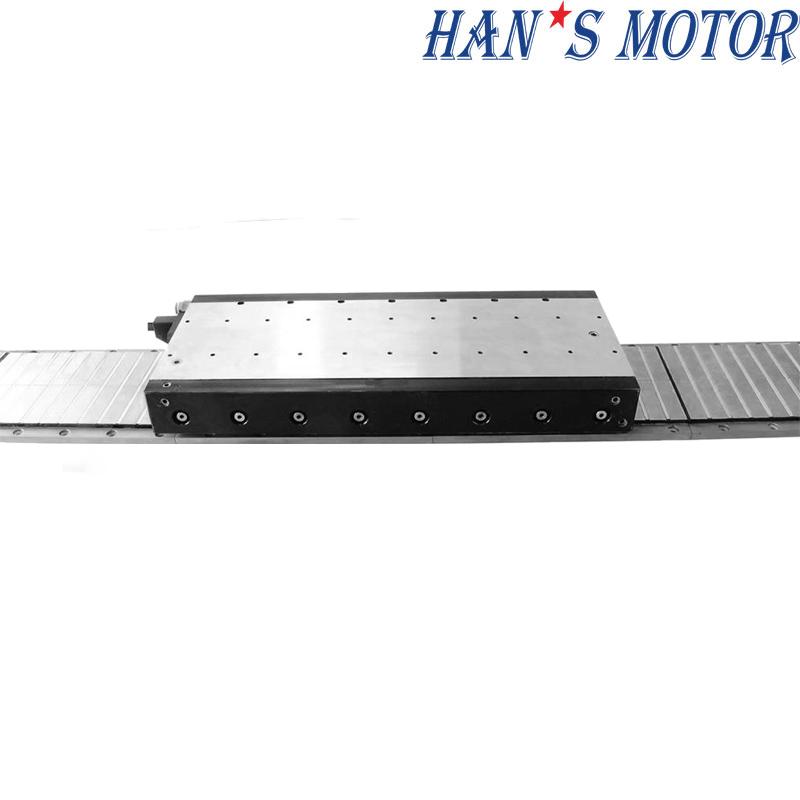

Customizable Iron Core Linear Motor
This iron core linear motor with water cooling can be customized for different force ranges and stroke lengths. It supports smooth operation under high loads with improved heat dissipation. Its modular design allows flexible integration into demanding equipment systems.
Brand:
Order(MOQ):
1
Product Detail
Specifications
| Mover Spec.：LSMH10201A-P-H-WC | |||
| PERFORMANCE PARAMETERS | Symbol | Units | |
| Continuous Force (Tmax） | Fc | N | 3000 |
| Peak Force | Fp | N | 4000 |
| Motor Constant (25℃) | Km25 | N/Sqrt(W) | 74.3 |
| Max.Continuous Power Dissipation | Pc | W | 2238 |
| Continuous Current (Tmax） | Ic | Arms | 19.7 |
| Peak Current (1S) | Ip | Arms | 27.6 |
| Force Constant (25℃，±5%） | Kf | N/Arms | 157.0 |
| Back EMF Constant (25℃，±5%） | Ke | Vrms/m/s | 52.3 |
| Electrical Resistance(25℃，±5%）P-P | R | Ω | 2.8 |
| Inductance(25℃，±20%）P-P | L | mH | 21.0 |
| Max Coil Temperature | Tmax | ℃ | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | 2τ | mm | 32.0 |
| Minimum flow of cold water | Wmin | L/min | 6.5 |
| Temperature difference between inlet and outlet | △T | ℃ | 7.0 |
| Pressure drop (stator loop series) | △P | Bar | 3.0 |
| Magnetic Attraction | Fa | kN | 12.0 |
| Max.DC Bus Voltage | Ubus | V | 600 |
| Vmax,Fc@Vbus=310Vdc | m/s | 2.8 | |
| Vmax,Fp@Vbus=310Vdc | m/s | 2.3 | |
| Vmax,0@Vbus=310Vdc | m/s | 4.1 | |
| Vmax,Fc@Vbus=537Vdc | m/s | 1.6 | |
| Vmax,Fp@Vbus=537Vdc | m/s | 1.2 | |
| Vmax,0@Vbus=537Vdc | m/s | 2.7 | |
| Mover Mass | Mp | Kg | 18.0 |
| Stator Mass within unit length | Ms | Kg/m | 15.0 |

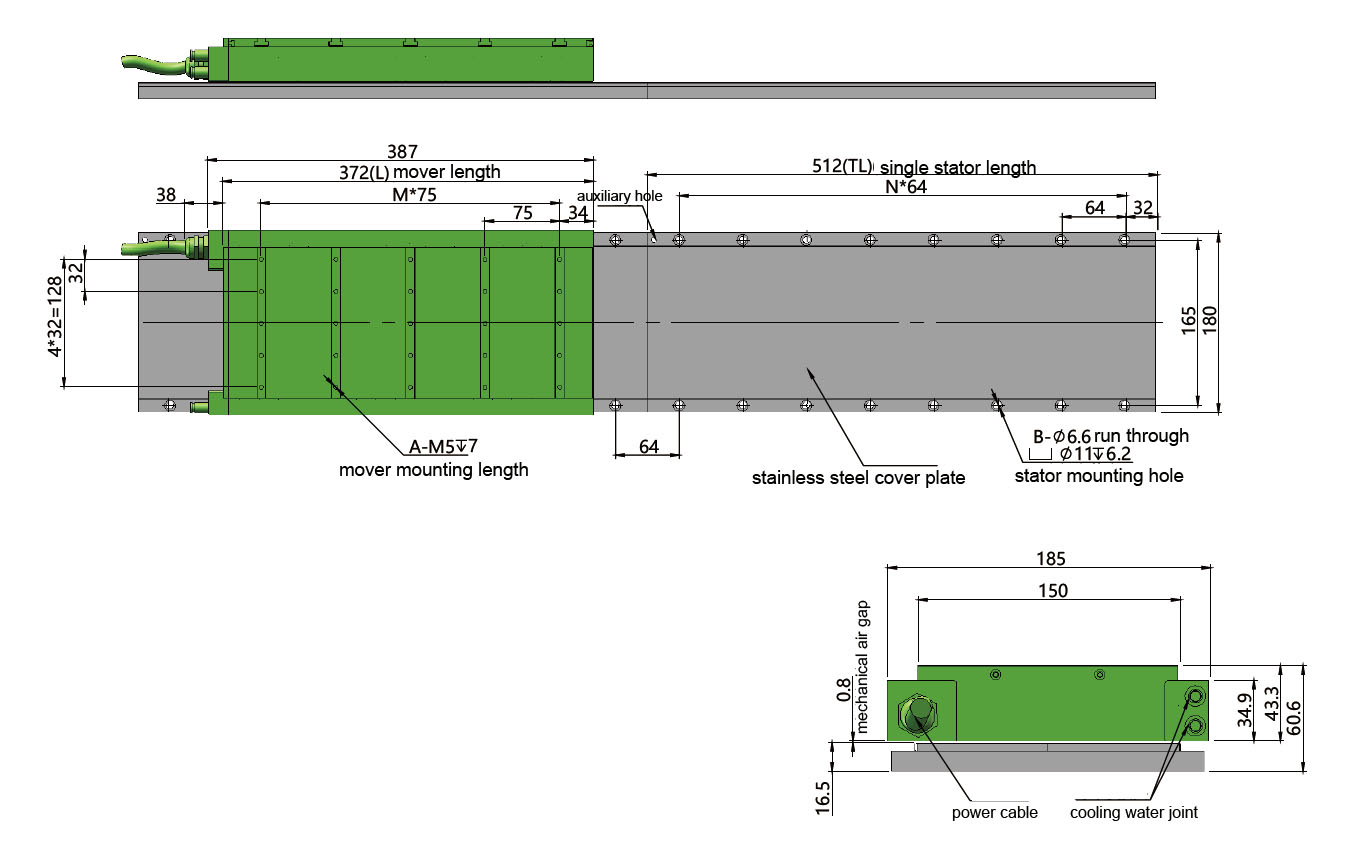

Dimension
| Mover Length | ||||
| Mover model | Mover length L | M | Mover mounting hole A | |
| LSMFH10201A-P-H-WC | 372 | 4 | 25 | |
Remarks: 1. Standard cable length is 7m, maximum outer diameter of motor cable is 14mm, minimum bending radius within chain is 140mm, the length can be customized if there are special requirements.
2. Optional temperature sensor.
| Stator Length | |||
| Stator model | Stator length TL | N | Stator mounting hole B |
| LSMH203A | 64 | 0 | 2 |
| LSMH204A | 256 | 3 | 8 |
| LSMH205A | 512 | 7 | 16 |
Suitable for any mover of this series.

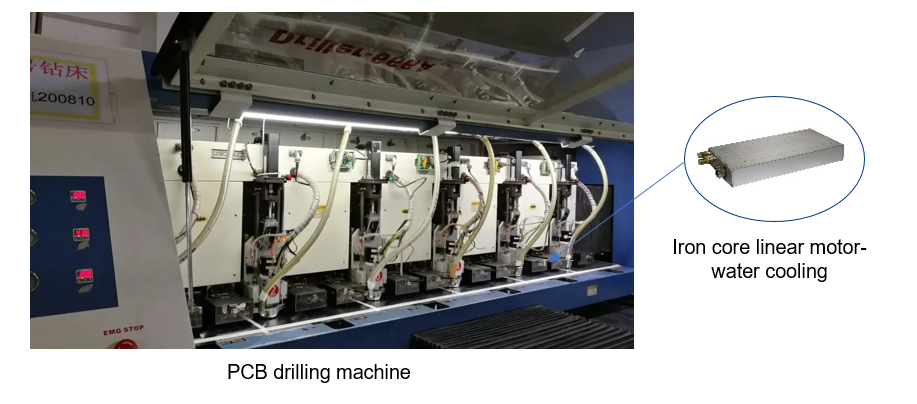

Application Case：PCB Drilling Machine
