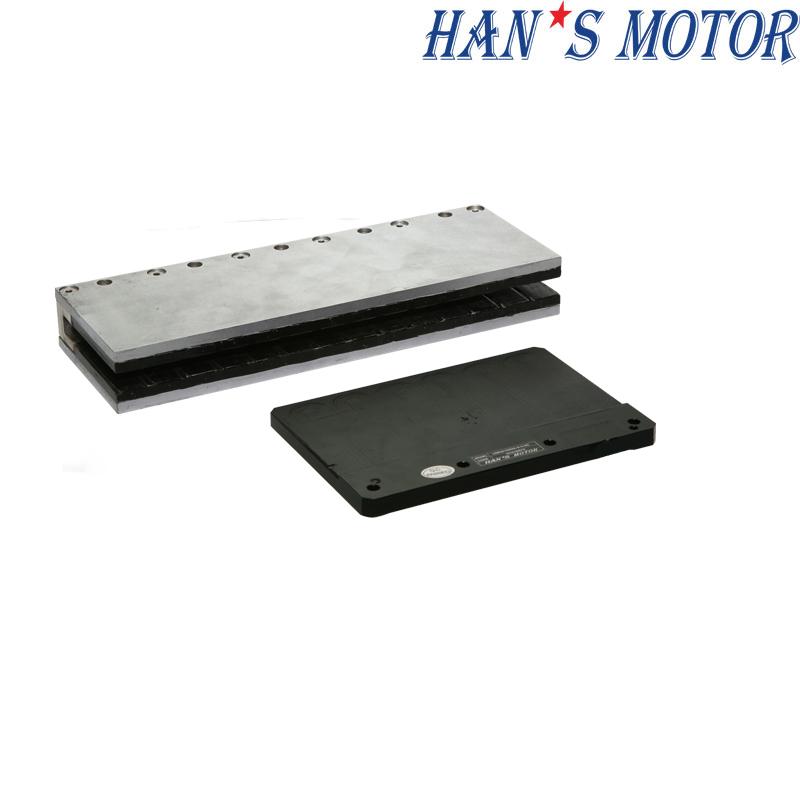

Coreless Linear Motor

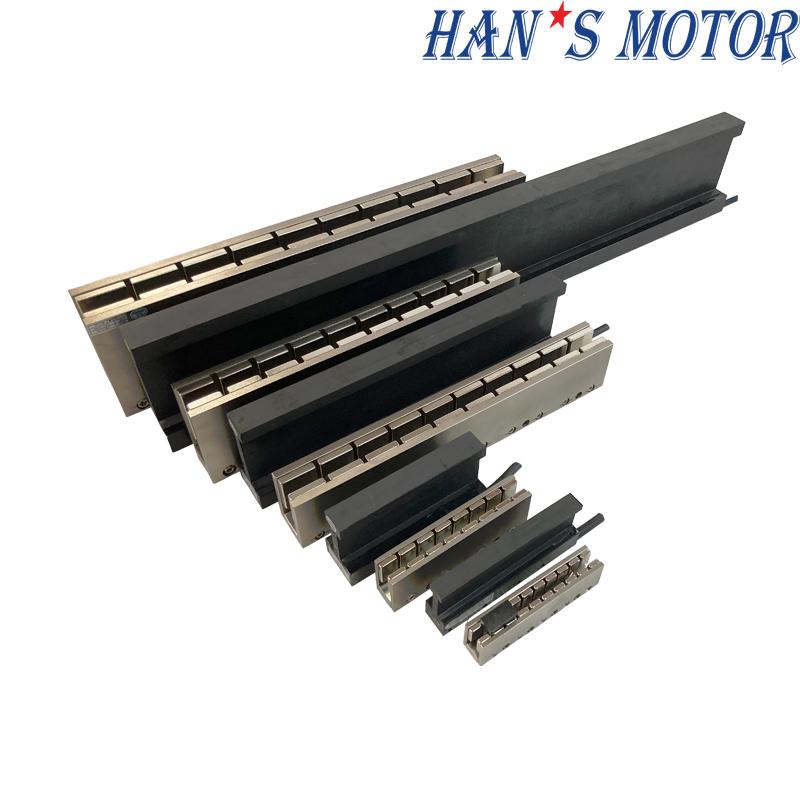

The LSMU6 coreless linear motor delivers high speed and large thrust, ideal for material handling and logistics automation. Its U-channel design ensures efficient heat dissipation and fast dynamic response. The motor provides reliable and smooth motion in demanding industrial environments. Perfect for automated warehouses and high-throughput systems.
Brand:
Order(MOQ):
1
Product Detail
Specifications
| Mover Spec: LSMU610xxxx-x-H-NC-N-D00.5 | 101A-S | 201B-S | 201B- P | 301A-S | 301A- P | 401A-S | 401A- P | 501A-S | 501A- P | 601A- S | 601A-P | 801A- S | 801A- P | ||
| Performance Parameters | Symbol | Unit | Series | Series | Parallel | Series | Parallel | Series | Parallel | Series | Parallel | Series | Parallel | Series | Parallel |
| Continuous Force (Tmax） | Fc | N | 110 | 221 | 221 | 331 | 332 | 442 | 442 | 552 | 552 | 662 | 662 | 883 | 883 |
| Peak Force | Fp | N | 660 | 1326 | 1326 | 1988 | 1989 | 2649 | 2649 | 3311 | 3309 | 3972 | 3972 | 5300 | 5300 |
| Motor Constant | Km25 | N//Sqrt (W) | 16.1 | 22.8 | 23.3 | 27.9 | 28.5 | 32.2 | 32.9 | 36.2 | 36.8 | 39.7 | 40.0 | 45.9 | 46.6 |
| Max.Continuous Power Dissipation | Pc | W | 64 | 129 | 124 | 193 | 185 | 257 | 247 | 319 | 309 | 382 | 376 | 508 | 494 |
| Continuous Current (Tmax） | Ic | Arms | 2.5 | 2.5 | 5.0 | 2.5 | 5.0 | 2.5 | 5.0 | 2.5 | 5.0 | 2.5 | 5.0 | 2.5 | 5.0 |
| Peak Current (1S) | Ip | Arms | 15.0 | 15.0 | 30.0 | 15.0 | 30.0 | 15.0 | 30.0 | 15.0 | 30.0 | 15.0 | 30.0 | 15.0 | 30.0 |
| Force Constant (25℃，±5%） | Kf | N/Arms | 44.0 | 88.4 | 44.2 | 132.5 | 66.3 | 176.6 | 88.3 | 220.7 | 110.3 | 264.8 | 132.4 | 353.3 | 176.7 |
| Back EMF Constant (25℃，±5%） | Ke | Vrm/rad /s | 14.7 | 29.5 | 14.8 | 44.2 | 22.1 | 58.9 | 29.5 | 73.6 | 36.8 | 88.3 | 44.2 | 117.8 | 58.9 |
| Electrical Resistance (25℃，±5%）P-P | R | Ω | 5.0 | 10.0 | 2.4 | 15.0 | 3.6 | 20.0 | 4.8 | 24.8 | 6.0 | 29.7 | 7.3 | 39.5 | 9.6 |
| Inductance (25℃，±20%）P-P | L | mH | 9.5 | 19.0 | 4.8 | 28.5 | 7.1 | 38.0 | 9.5 | 47.5 | 11.9 | 57.0 | 14.3 | 76.0 | 19.0 |
| Max Coil Temperature | Tmax | ℃ | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | 2τ | mm | 84 | 84 | 84 | 84 | 84 | 84 | 84 | 84 | 84 | 84 | 84 | 84 | 84 |
| Magnetic Attraction | Fa | kN | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| Max.DC Bus Voltage | Ubus | V | 330 | 330 | 330 | 330 | 330 | 330 | 330 | 330 | 330 | 330 | 330 | 330 | 330 |
| Vmax,Fc@Vbus=310Vdc | Vmax,Fc | m/s | 7.9 | 3.6 | 7.9 | 2.2 | 5.1 | 1.5 | 3.6 | 1.1 | 2.8 | 0.8 | 2.2 | 0.4 | 1.5 |
| Vmax,Fp@Vbus=310Vdc | Vmax,Fp | m/s | 4.8 | 0.6 | 4.9 | 0.0 | 2.2 | 0.0 | 0.8 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| Vmax,0@Vbus=310Vdc | Vmax,0 | m/s | 8.5 | 4.2 | 8.5 | 2.8 | 5.6 | 2.1 | 4.2 | 1.7 | 3.4 | 1.4 | 2.8 | 1.0 | 2.1 |
| Mover Mass | Mp | Kg | 1.0 | 1.9 | 1.9 | 2.7 | 2.7 | 3.6 | 3.6 | 4.5 | 4.5 | 5.4 | 5.4 | 7.2 | 7.2 |
| Stator Mass within unit length | Ms | Kg/m | 24.0 | 24.0 | 24.0 | 24.0 | 24.0 | 24.0 | 24.0 | 24.0 | 24.0 | 24.0 | 24.0 | 24.0 | 24.0 |

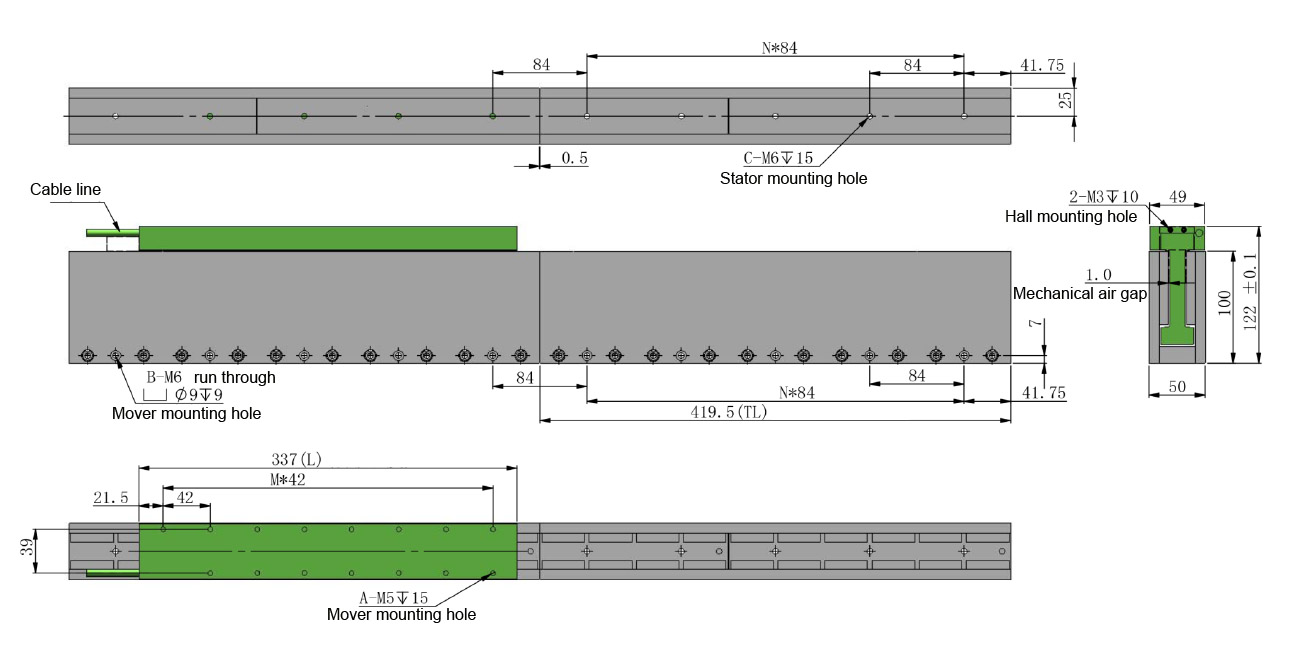

Dimension
| Mover Length | |||
| Mover model | Mover length L | M | Mover mounting hole A |
| LSMU610101A-S-H-NC-N-D00.5 | 85 | 1 | 3 |
| LSMU610201B-S-H-NC-N-D00.5 | 169 | 3 | 7 |
| LSMU610201B-P-H-NC-N-D00.5 | 7 | ||
| LSMU610301A-S-H-NC-N-D00.5 | 253 | 5 | 11 |
| LSMU610301A-P-H-NC-N-D00.5 | 11 | ||
| LSMU610401A-S-H-NC-N-D00.5 | 337 | 7 | 15 |
| LSMU610401A-P-H-NC-N-D00.5 | 15 | ||
| LSMU610501A-S-H-NC-N-D00.5 | 421 | 9 | 19 |
| LSMU610501A-P-H-NC-N-D00.5 | 19 | ||
| LSMU610601A-S-H-NC-N-D00.5 | 505 | 11 | 23 |
| LSMU610601A-P-H-NC-N-D00.5 | 23 | ||
| LSMU610801A-S-H-NC-N-D00.5 | 673 | 15 | 31 |
| LSMU610801A-P-H-NC-N-D00.5 | 31 | ||
Remark: 1. standard cable length is 0.5m with D-type aviation plug, maximum outer diameter of cable is 7.0mm, minimum bending radius of fixed laying is 3*d, minimum bending radius of dragging chain movement is 5*d, cable length and terminal can be customized.
2. optional temperature sensor.
| Stator Length | ||||
| Stator model | Stator length TL | N | Stator mounting hole B | Stator mounting hole C |

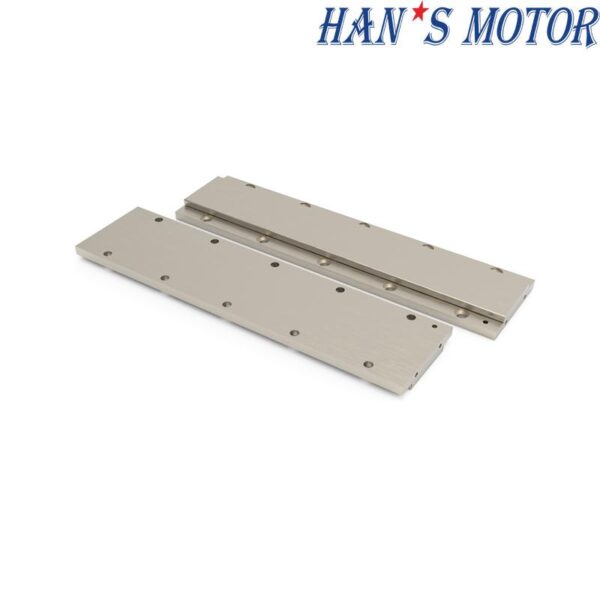

| LSMU6202A | 167.5 | 1 | 2 | 2 |
| LSMU6203A | 251.5 | 2 | 3 | 3 |
| LSMU6204A | 419.5 | 4 | 5 | 5 |
Suitable for any mover of this series, stator installation mode can be selected.
Advantages:
1. High speed,
2. high positioning accuracy
3. Simple structure, maintenance
4. Safe and reliable work, long life
Application Case：Medical Industry

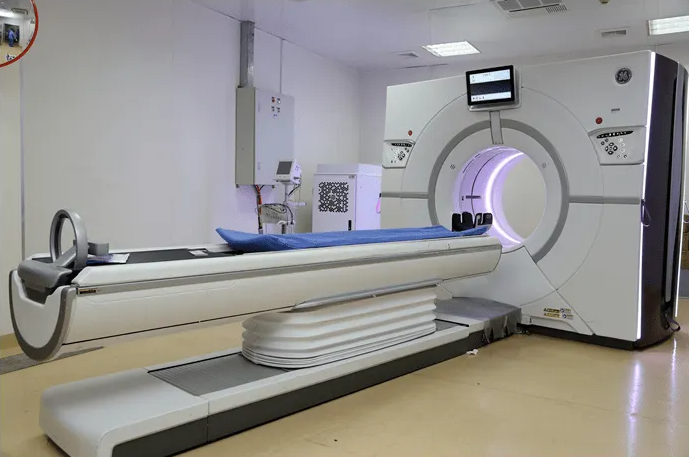

CT and MRI devices require very high precision. Need to bear a high inertia loads at very high speeds.The use of linear motor can achieve accurate and smooth control of the scanning table can improve the accuracy of diagnostic images and patient comfort.
