Bilateral Iron Core Linear Motor
This bilateral forcer iron core motor is engineered for high-speed SMT machines. The dual forcer structure offers improved force balance and stability. Ideal for electronics production environments requiring high throughput. Model LSMF6 provides precise positioning with reduced vibration.
Brand:
Order(MOQ):
1
Product Detail
Specifications
| Mover Spec.：LSMD110xxxxx-x-H-NC-N-C0.05 | 201A-P | 301A-P | 301B-P | ||
| PERFORMANCE PARAMETERS | Symbol | Units | P2 | P1 | P3 |
| Continuous Force (Tmax） | Fc | N | 590 | 880 | 880 |
| Peak Force | Fp | N | 1545 | 2600 | 2318 |
| Motor Constant (25℃) | Km25 | N/Sqrt(W) | 52.8 | 64.4 | 65.3 |
| Max.Continuous Power Dissipation | Pc | W | 171 | 256 | 249 |
| Continuous Current (Tmax） | Ic | Arms | 8.0 | 7.7 | 12.0 |
| Peak Current (1S) | Ip | Arms | 24.0 | 23.0 | 36.0 |
| Force Constant (25℃，±5%） | Kf | N/Arms | 73.6 | 114.6 | 73.6 |
| Back EMF Constant (25℃，±5%） | Ke | Vrms/m/s | 24.5 | 38.2 | 24.5 |
| Electrical Resistance(25℃，±5%）P-P | R | Ω | 1.3 | 2.1 | 0.8 |
| Inductance(25℃，±20%）P-P | L | mH | 12.9 | 21.0 | 8.6 |
| Max Coil Temperature | Tmax | ℃ | 120 | 120 | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | 2τ | mm | 32.0 | 32.0 | 32.0 |
| Magnetic Attraction | Fa | kN | 0.0 | 0.0 | 0.0 |
| Max.DC Bus Voltage | Ubus | V | 600 | 600 | 600 |
| Vmax,Fc@Vbus=310Vdc | m/s | 4.4 | 2.7 | 4.4 | |
| Vmax,Fp@Vbus=310Vdc | m/s | 2.8 | 1.6 | 2.8 | |
| Vmax,0@Vbus=310Vdc | m/s | 5.1 | 3.2 | 5.1 | |
| Vmax,Fc@Vbus=537Vdc | m/s | 7.2 | 4.5 | 7.1 | |
| Vmax,Fp@Vbus=537Vdc | m/s | 4.6 | 2.8 | 4.7 | |
| Vmax,0@Vbus=537Vdc | m/s | 8.0 | 5.1 | 8.0 | |
| Mover Mass | Mp | Kg | 6.1 | 8.8 | 8.8 |
| Stator Mass within unit length | Ms | Kg/m | 10.1 | 10.1 | 10.1 |

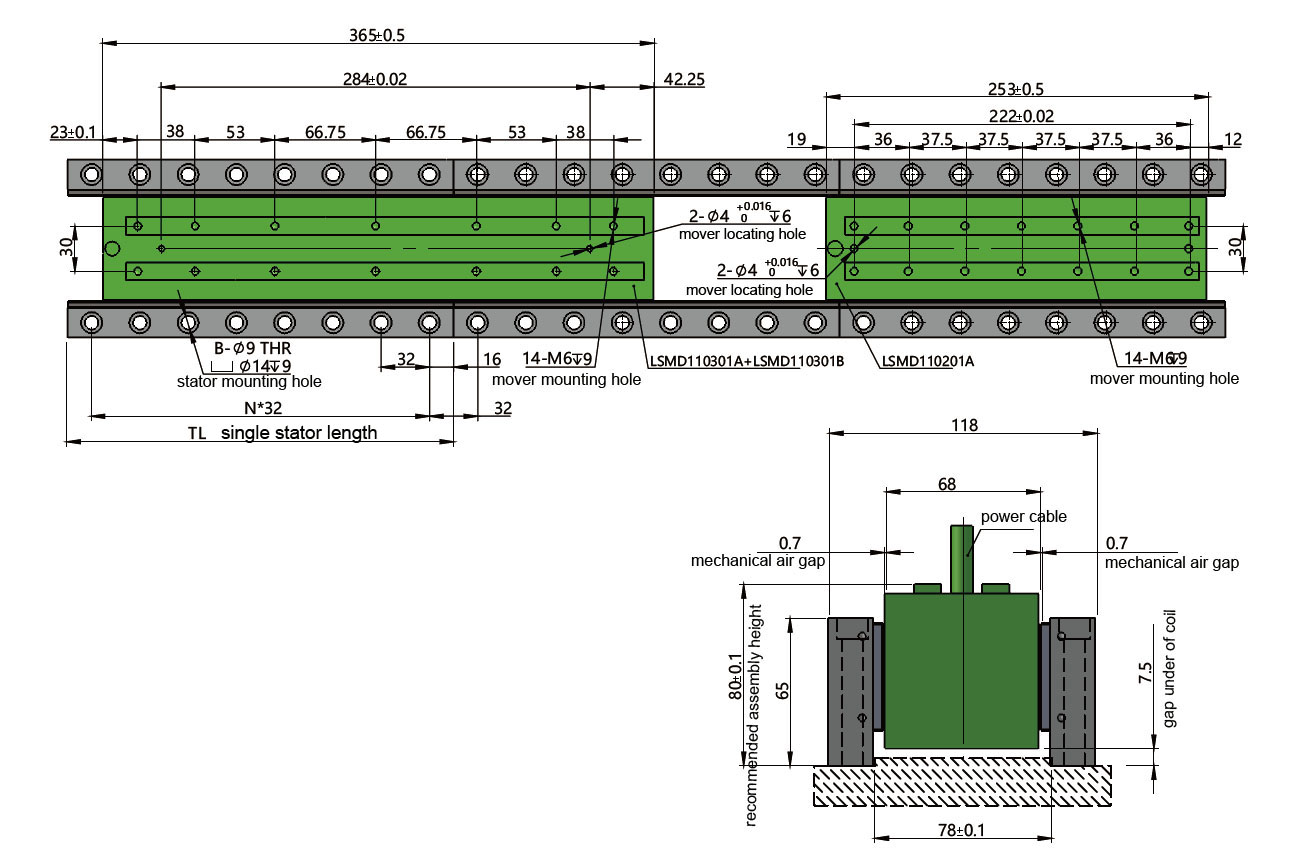

Dimension
| Mover Length | ||
| Mover model | Mover length L | Mover mounting hole A |
| LSMD110201A-P-H-NC-N-C00.5 | 253 | 14 |
| LSMD110301A-P-H-NC-N-C00.5 | 365 | 14 |
| LSMD110301B-P-H-NC-N-C00.5 | 365 | 14 |
Remarks: 1. Standard cable length is 0.5m (with C-type aviation plug), Continuous Current Ic≤10A/ 10＜Ic≤12A /12＜Ic≤16A maximum outer diameter (d)of motor cable is 7.5mm/ 8.0mm/9.0mm, fixed minimum bending radius is 3*d, moving minimum bending radius within chain is 5*d; the cable length and terminal can be customized if there are special requirements.
2. Optional temperature sensor.
| Stator Length | |||
| Stator model | Stator length TL | N | Stator mounting hole B |
| LSMD1201A | 64 | 1 | 2 |
| LSMD1202A | 128 | 3 | 4 |
| LSMD1203A | 256 | 7 | 8 |
| LSMD1204A | 512 | 15 | 16 |
Suitable for any mover of this series.
Industry Applications:

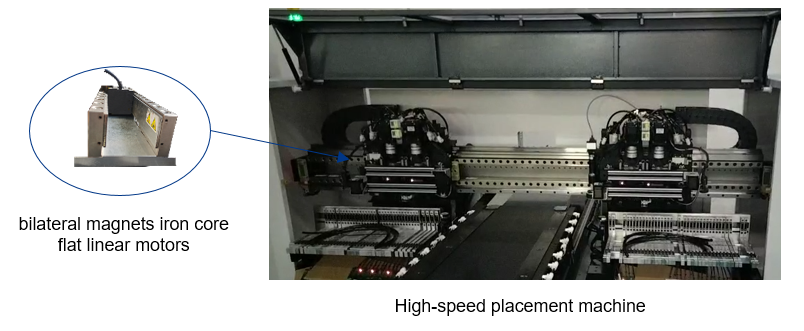

Application Case：
Requirements: high speed (3.5m/s), high acceleration (4.7G)
Advantages: Adopt bilateral magnets iron core falt linear motor, large thrust, acceleration performance, adopt cogging force suppression technology, bulit-in overheat protection, the electromagnetic attraction forces offsetting each other, reducing the wearing of guide rail.
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
