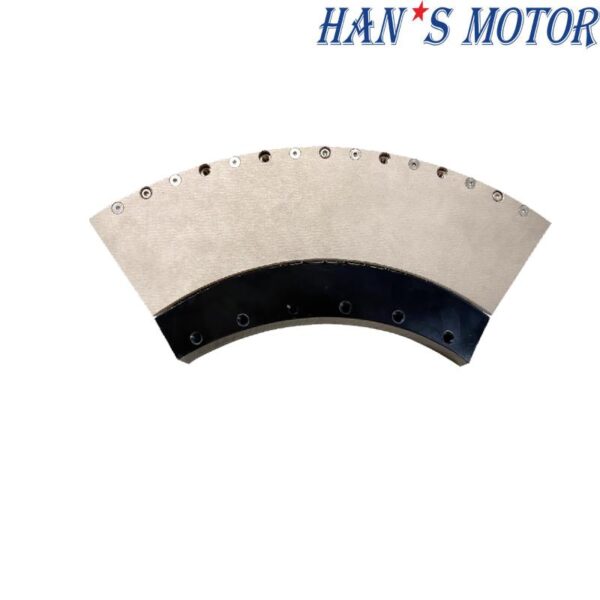

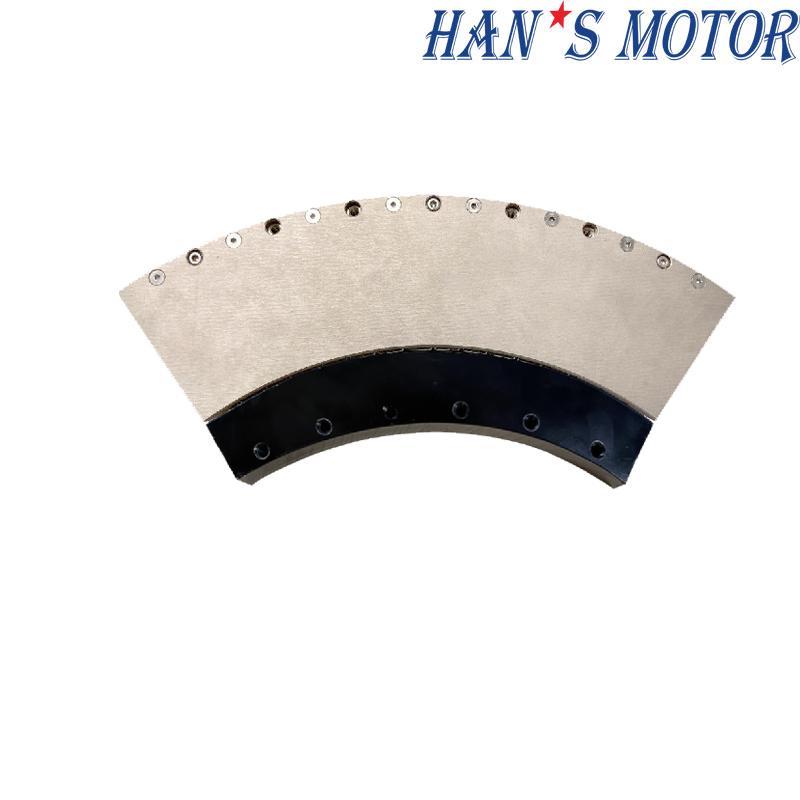

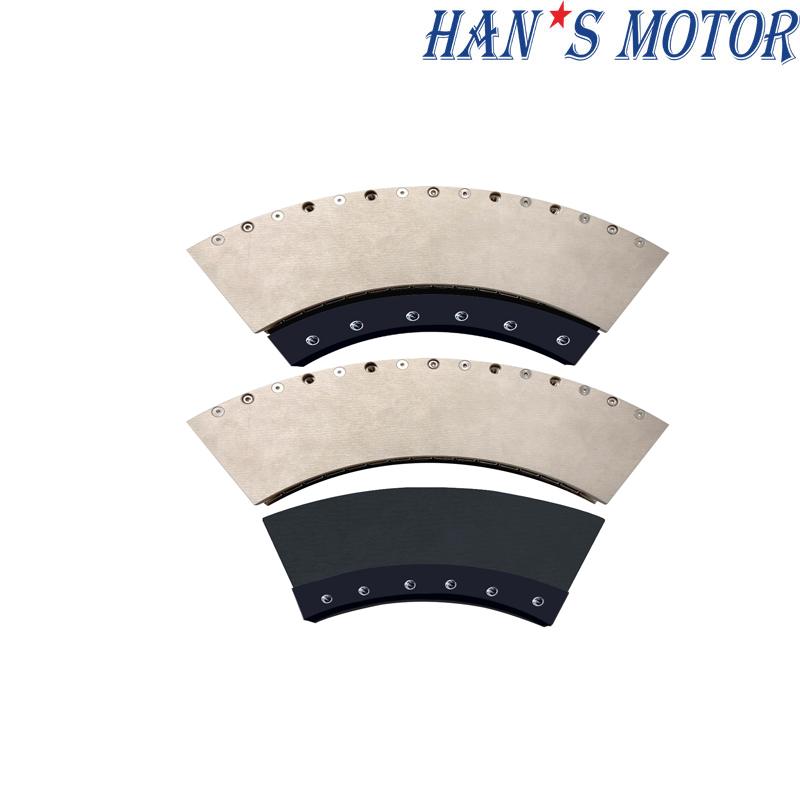

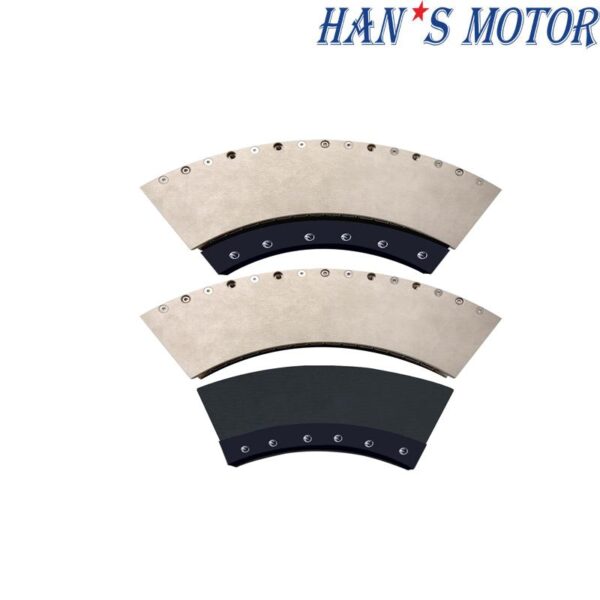

Arc Ironless Linear Motor
This ironless arc linear motor provides silent, cog-free motion for high-precision applications. Its curved profile supports smooth force transmission along an arc trajectory. Ideal for compact setups requiring minimal vibration and clean operation.
Brand:
Order(MOQ):
1
Product Detail
Specifications
| Motor model: ASMU1-R230B-xx-S | 01 | 02 | 03 | 04 | ||
| Performance Parameters | Symbol | Unit | Series | Series | Series | Series |
| Continuous Force (Tmax） | Fc | N | 8.7 | 17.3 | 26.0 | 34.7 |
| Peak Force | Fp | N | 34.8 | 69.2 | 104.0 | 138.8 |
| Continuous Current | Ic | Arms | 1.0 | 1.0 | 1.0 | 1.0 |
| Peak Current (1S) | Ip | Arms | 4.0 | 4.0 | 4.0 | 4.0 |
| Force Constant (25℃，±5%） | Kf | N/Arms | 8.7 | 17.3 | 26.0 | 34.7 |
| Back EMF Constant (25℃，±5%） | Ke | Vrms/rad/s | 2.9 | 5.8 | 8.7 | 11.6 |
| Back EMF constant (25℃，±5%） | Ke | Vrms/rpm | 0.3 | 0.6 | 0.91 | 1.21 |
| Resistance(25℃，±5%）P-P | R | Ω | 11.0 | 21.8 | 32.6 | 43.4 |
| Inductance(25℃，±20%）P-P | L | mH | 6.0 | 12.0 | 18.0 | 24.0 |
| Max Coil Temperature | Tmax | ℃ | 120 | 120 | 120 | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | 2τ | degree | 9 | 9 | 9 | 9 |
| Magnetic Attraction | Fa | KN | 0 | 0 | 0 | 0 |
| Mover Mass | Mp | kg | 0.25 | 0.5 | 0.75 | 1.0 |
| Stator Mass | Ms | Kg/m | 3.8 | 3.8 | 3.8 | 4.6 |
| Mover Moment of Inertia | Jm | Kg*㎡ | 0.013 | 0.025 | 0.037 | 0.049 |
| Rotor Moment of Inertia | Jm | Kg*㎡ | 0.22 | 0.22 | 0.22 | 0.22 |
| Mover Spec. | ASMU1-R230B-01-S-NC-N-C00.5 | ASMU1-R230B-02-S-NC-N-C00.5 | ASMU1-R230B-03-S-NC-N-C00.5 | ASMU1-R230B-04-S-NC-N-C00.5 | ||
| Rotor Spec. | ASMU1-R230A-TR72 | |||||
Dimension
| Mover Size | ||
| Mover model | Angle | Mover mounting hole A |
| ASMU1-R230B-01-S-NC-N-C00.5 | 19° | 2 |
| ASMU1-R230B-02-S-NC-N-C00.5 | 37° | 4 |
| ASMU1-R230B-03-S-NC-N-C00.5 | 55° | 6 |
| ASMU1-R230B-04-S-NC-N-C00.5 | 73° | 8 |
Remarks:
1. Standard cable length is 0.5m (with aviation plug), maximum outer diameter of motor cable is 7.5mm, minimum bending radius of drag chain is 37.5mm, the cable length and terminal can be customized if there are special requirements;
2. Optional temperature sensor and hall.
| Stator Size | ||
| Stator model | Angle | Stator mounting hole B |
| ASMU1-R230A-TR72 | 72° | 7 |
Application Case:
Advantages: light and thin, center hole, high torque, without cogging, development, 270° angle or 360° to operate
Industry Applications:
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
