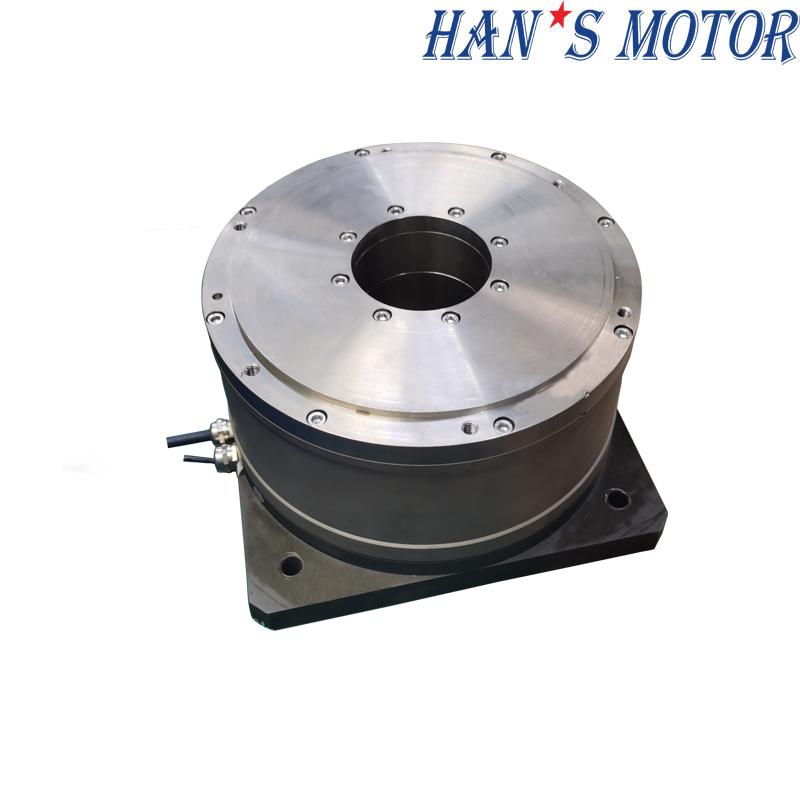

23-Bit Encoder Torque Motor
Equipped with a high-resolution 23-bit encoder, this torque motor provides ultra-precise positioning and real-time feedback. It supports high torque output in a compact outer rotor design, ideal for automation scenarios where precision and responsiveness are critical.
Brand:
Order(MOQ):
1
Product Detail
Product Specifications
| Frame Outer Rotor Torque Motor HANS-D Series Specification | ||||||
| Motor Model No.：HANS-D-xxx-Dxxx-Hxxx-T85-X-C | D-035 | D-050 | D-065 | D-100 | ||
| Performance Parameters | Symbol | Unit | ||||
| Cable Outlet | 1 | 1 | 1 | 1 | ||
| Outer Diameter | D1 | mm | 264 | 264 | 264 | 264 |
| Center Hole | D2 | mm | 85 | 85 | 85 | 85 |
| Installation Height | H | mm | 98 | 106 | 113 | 138 |
| Continuous torque (Tmax) | Tc | Nm | 35 | 50 | 65 | 110 |
| Peak torque | Tp | Nm | 105 | 150 | 195 | 328 |
| Vmax,Tc@Vbus=310Vdc | Nmax,Tc | Rpm | 380 | 260 | 200 | 100 |
| Vmax,Tp@Vbus=310Vdc | Nmax,Tp | Rpm | 230 | 160 | 120 | 45 |
| Vmax,0@Vbus=310Vdc | Nmax,0 | Rpm | 450 | 300 | 240 | 130 |
| Encoder (BISS-C) | P/rev | 23bits | 23bits | 23bits | 23bits | |
| Positioning Accuracy | arc sec | ±10/±5 | ±10/±5 | ±10/±5 | ±10/±5 | |
| Repeat Accuracy | arc sec | ±1.5 | ±1.5 | ±1.5 | ±1.5 | |
| Maximum axial load (recommend) | Fa | N | 3000 | 3000 | 3000 | 3000 |
| Maximum torque load (recommend) | T | Nm | 200 | 200 | 200 | 200 |
| Motor outlet | M | 0.3 | 0.3 | 0.3 | 0.3 | |
| Cable bending radius (within drag chain） | mm | 37.5 | 37.5 | 37.5 | 37.5 | |
| Continuous current (Tmax) | Ic | Arms | 4.5 | 4.5 | 4.5 | 4.2 |
| Peak Current (1s) | Ip | Arms | 13.5 | 13.5 | 13.5 | 12.5 |
| Torque Constant (within 25℃±5℃） | Tf | Nm/Arms | 7.8 | 11.2 | 14.4 | 26.2 |
| Electromotive constant (within 25℃±5℃） | Te | Vrms/rad/s | 2.60 | 3.75 | 4.80 | 8.73 |
| Resistance (within 25℃±5℃） | R | Ω(p-p) | 4.0 | 4.7 | 5.2 | 8.0 |
| Inductance (within 25℃±5℃） | L | mH(p-p) | 24.4 | 30.5 | 39.0 | 58.0 |
| Pole pairs | p | 16 | 16 | 16 | 16 | |
| Max.coil temperature | Tmax | ℃ | 120 | 120 | 120 | 120 |
| Motor Mass | KG | 28.0 | 29.5 | 31.5 | 37.5 | |
| Mover Mass | Mc | KG | 10.2 | 10.6 | 11.0 | 12.4 |
| Rotor Moment of Inertia | Jm | Kg*m2 | 0.0890 | 0.0930 | 0.1000 | 0.1199 |
| Axial Runout | mm | 0.03 | 0.04 | 0.05 | 0.05 | |
| Radial Runout | mm | 0.05 | 0.05 | 0.05 | 0.05 | |

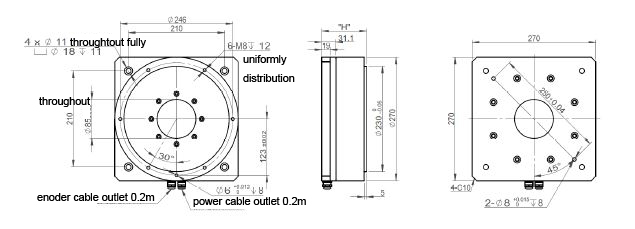

Dimension
| Model | Center Hole(mm) | Outer Diameter (mm) | Height (mm) | Repeatability Accuracy (Arc sec) | Spec. | Continuous torque /Nm | Peak torque /Nm |
| HANS-D | 85 | 270 | 98 | ±1.5 | HANS-D-035-D264-H098-T85-2-C | 35 | 105 |
| 106 | HANS-D-050-D264-H106-T85-2-C | 50 | 150 | ||||
| 113 | HANS-D-065-D264-H113-T85-2-C | 65 | 195 | ||||
| 138 | HANS-D-100-D264-H138-T85-2-C | 110 | 328 |
