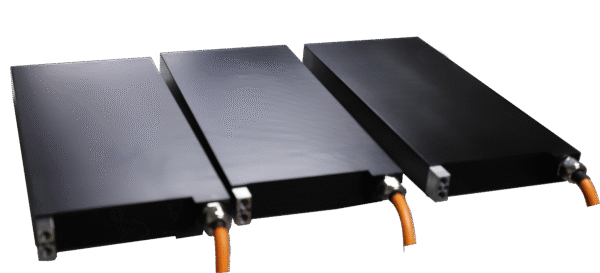

10000Nm Water-Cooled Ironcore Linear Motor
LSMFK series Water-Cooled Ironcore Linear Motors feature high thrust density 10000Nm and efficient heat dissipation, enabling stable high-performance operation in demanding applications.
Brand:
Order(MOQ):
1
Product Detail
Feature:
1. High thrust density
Ironcore design delivers large continuous force 8000Nm and peak force 10000Nm.
2. Superior cooling performance
Integrated water-cooling significantly reduces temperature rise for stable long-term operation.
3. High dynamic response
Supports high speed, high acceleration, and frequent reciprocating motion.
4. Energy saving and low noise
Compared with air cooling, water cooling is more efficient and quieter, suitable for cleanroom environments.
5. Wide applicability
Maintains performance even under high power density or high temperature conditions.
Application:
These motors are widely used in semiconductor equipment, high-speed laser cutting machines, precision machine tools, and industrial automation systems, especially in high-speed handling scenarios that demand both stability and efficiency.
LMSFK-50 Specification
| Mover Spec.：LSMFK1xxxxxx-xx-H-WC-P-A06.5 | 11030A-S1 | 22030A-S1 | 22030A-P2 | 33030A-S1 | 33030A-P3 | 44030A-S1 | 44030A-P2 | 44030A-P4 | ||
| PERFORMANCE PARAMETERS | Symbol | Units | ||||||||
| Continuous Force (Tmax） | Fc | N | 293 | 608 | 608 | 890 | 890 | 1178 | 1178 | 1178 |
| Peak Force | Fp | N | 385 | 818 | 818 | 1175 | 1175 | 1570 | 1570 | 1570 |
| Motor Constant (25℃) | Km25 | N/Sqrt(W) | 17.9 | 27.9 | 23.9 | 33.8 | 27.5 | 38.8 | 36.6 | 29.3 |
| Max.Continuous Power Dissipation | Pc | W | 368 | 653 | 888 | 949 | 1434 | 1266 | 1424 | 2215 |
| Continuous Current (Tmax） | Ic | Arms | 9.7 | 9.8 | 19.8 | 9.8 | 29.5 | 9.8 | 19.6 | 39.2 |
| Peak Current (1S) | Ip | Arms | 13.8 | 13.8 | 27.6 | 13.8 | 41.4 | 13.8 | 27.6 | 55.2 |
| Force Constant (25℃，±5%） | Kf | N/Arms | 30.2 | 62.0 | 30.7 | 90.8 | 30.2 | 120.2 | 60.1 | 30.1 |
| Back EMF Constant (25℃，±5%） | Ke | Vrms/m/s | 10.1 | 20.7 | 10.2 | 30.3 | 10.1 | 40.1 | 20.0 | 10 |
| Electrical Resistance(25℃，±5%）P-P | R | Ω | 1.9 | 3.3 | 1.1 | 4.8 | 0.8 | 6.4 | 1.8 | 0.7 |
| Inductance(25℃，±20%）P-P | L | mH | 8.2 | 16.4 | 4.1 | 24.6 | 2.8 | 32.8 | 8.2 | 2.1 |
| Max Coil Temperature | Tmax | ℃ | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Maximum Outer Diameter of Power Cable | mm | 12.0 | 12.0 | 14.0 | 12.0 | 15.0 | 12.0 | 14.0 | 16.5 | |
| Min. Bend Radius (Drag Chain, Power Cable) | mm | 120.0 | 120.0 | 140.0 | 120.0 | 150.0 | 120.0 | 140.0 | 165.0 | |
| Polar Distance (N-N) (360℃ Electrical cycle) | 2τ | mm | 32.0 | 32.0 | 32.0 | 32.0 | 32.0 | 32.0 | 32.0 | 32.0 |
| Magnetic Attraction | Fa | kN | 1.0 | 2.0 | 2.0 | 3.0 | 3.0 | 4.0 | 4.0 | 4.0 |
| Max.DC Bus Voltage | Ubus | V | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 |
| Maximum Acceleration at Rated Thrust (Ubus = 537V) | Vmax,Fc | m/s | 16.3 | 7.6 | 15.8 | 4.9 | 15.8 | 3.5 | 7.7 | 15.7 |
| Maximum Speed at Peak Thrust (Ubus = 537V) | Vmax,Fp | m/s | 13.7 | 6.4 | 13.4 | 4.0 | 13.3 | 2.8 | 6.4 | 13.1 |
| Acceleration at No Load (Ubus = 537V) | Vmax,F=0 | m/s | 21.7 | 10.5 | 21.3 | 7.2 | 21.7 | 5.4 | 10.8 | 21.7 |
| Mover Mass | Mp | Kg | 2.2 | 4.1 | 4.1 | 6.2 | 6.2 | 8.2 | 8.2 | 8.2 |
| Stator Mass within unit length | Ms | Kg/m | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 |
| Mover Dimension | |||||
| Mover Model | Mover Length L | M | Mover mounting hole A | K | Remark |
| LSMFK111030-WC | 194 | 2 | 18 | 19 | Single Water Circuit |
| LSMFK122030-WC | 370 | 4 | 30 | 32 | Single Water Circuit |
| LSMFK133030-WC | 552 | 6 | 42 | 51 | Dual Water Circuit |
| LSMFK144030-WC | 728 | 9 | 60 | 26.5 | Dual Water Circuit |
Remarks:
1. Standard cable length is 6.5m, maximum outer diameter (d)of motor cable is d= 14mm , minimum bending radius within chain is 140mm, the length can be customized if there are special requirements;
2. Optional temperature sensor;
| Stator Dimension | |||
| Stator Model | Stator Length TL | N | Stator mounting hole B |
| LSMFK2030064A | 64 | 0 | 2 |
| LSMFK2030128A | 128 | 1 | 4 |
| LSMFK2030256A | 256 | 3 | 8 |
| LSMFK2030512A | 512 | 7 | 16 |
Suitable for any mover of this series, and stator installation mode can be selected
LMSFK-200 Specification
| Mover Spec.：LSMFK1xxxxxx-xx-H-WC-P-A06.5 | 11200A-S1 | 22200A-S1 | 22200A-P2 | 33200A-S1 | 33200A-P3 | 44200A-S1 | 44200A-P2 | 44200A-P4 | ||
| PERFORMANCE PARAMETERS | Symbol | Units | ||||||||
| Continuous Force (Tmax） | Fc | N | 1956 | 4057 | 4057 | 5937 | 5937 | 7854 | 7854 | 7854 |
| Peak Force | Fp | N | 2566 | 5483 | 5483 | 7831 | 7831 | 10430 | 10430 | 10430 |
| Motor Constant (25℃) | Km25 | N/Sqrt(W) | 63.6 | 89 | 87 | 111.2 | 106.1 | 128.6 | 126.4 | 125.5 |
| Max.Continuous Power Dissipation | Pc | W | 1298 | 2806 | 2987 | 3916 | 4301 | 5123 | 5301 | 5380 |
| Continuous Current (Tmax） | Ic | Arms | 9.7 | 9.9 | 19.8 | 9.8 | 29.5 | 9.8 | 19.6 | 39.2 |
| Peak Current (1S) | Ip | Arms | 13.8 | 13.8 | 27.6 | 13.8 | 41.4 | 13.8 | 27.6 | 55.2 |
| Force Constant (25℃，±5%） | Kf | N/Arms | 201.6 | 409.8 | 204.9 | 605.8 | 201.3 | 801.4 | 400.7 | 200.4 |
| Back EMF Constant (25℃，±5%） | Ke | Vrms/m/s | 67.2 | 136.6 | 68.3 | 201.9 | 67.1 | 267.1 | 133.6 | 66.8 |
| Electrical Resistance(25℃，±5%）P-P | R | Ω | 6.7 | 13.9 | 3.7 | 19.8 | 2.4 | 25.9 | 6.7 | 1.7 |
| Inductance(25℃，±20%）P-P | L | mH | 54.8 | 109.6 | 27.4 | 164.4 | 18.3 | 219.2 | 54.8 | 13.7 |
| Max Coil Temperature | Tmax | ℃ | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Maximum Outer Diameter of Power Cable | mm | 12.0 | 12.0 | 14.0 | 12.0 | 15.0 | 12.0 | 14.0 | 16.5 | |
| Min. Bend Radius (Drag Chain, Power Cable) | mm | 120.0 | 120.0 | 140.0 | 120.0 | 150.0 | 120.0 | 140.0 | 165.0 | |
| Polar Distance (N-N) (360℃ Electrical cycle) | 2τ | mm | 32.0 | 32.0 | 32.0 | 32.0 | 32.0 | 32.0 | 32.0 | 32.0 |
| Magnetic Attraction | Fa | kN | 6.7 | 13.3 | 13.3 | 20.0 | 20.0 | 20.7 | 20.7 | 20.7 |
| Max.DC Bus Voltage | Ubus | V | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 |
| Maximum Acceleration at Rated Thrust (Ubus = 537V) | Vmax,Fc | m/s | 2.1 | 0.7 | 2 | 0.3 | 2 | 0.1 | 0.8 | 2.1 |
| Maximum Speed at Peak Thrust (Ubus = 537V) | Vmax,Fp | m/s | 1.6 | 0.5 | 1.6 | 0.1 | 1.6 | 0 | 0.5 | 1.6 |
| Acceleration at No Load (Ubus = 537V) | Vmax,F=0 | m/s | 3.2 | 1.5 | 3.1 | 1 | 3.2 | 0.8 | 1.6 | 3.2 |
| Mover Mass | Mp | Kg | 10.5 | 20.2 | 20.2 | 32.2 | 32.2 | 42.7 | 42.7 | 42.7 |
| Stator Mass within unit length | Ms | Kg/m | 26.0 | 26.0 | 26.0 | 26.0 | 26.0 | 26.0 | 26.0 | 26.0 |
| Mover Dimension | |||||
| Mover Model | Mover Length L | M | Mover mounting hole A | K | Remark |
| LSMFK111200-WC | 194 | 2 | 18 | 19 | Single Water Circuit |
| LSMFK122200-WC | 370 | 4 | 30 | 32 | Single Water Circuit |
| LSMFK133200-WC | 552 | 6 | 42 | 51 | Dual Water Circuit |
| LSMFK144200-WC | 728 | 9 | 60 | 26.5 | Dual Water Circuit |
Remarks:
1. Standard cable length is 6.5m, maximum outer diameter (d)of motor cable is d= 14mm , minimum bending radius within chain is 140mm, the length can be customized if there are special requirements;
2. Optional temperature sensor;
| Stator Dimension | |||
| Stator Model | Stator Length TL | N | Stator mounting hole B |
| LSMFK2200064A | 64 | 0 | 2 |
| LSMFK2200128A | 128 | 1 | 4 |
| LSMFK2200256A | 256 | 3 | 8 |
| LSMFK2200512A | 512 | 7 | 16 |
Suitable for any mover of this series, and stator installation mode can be selected
LMSFK-200 Dimension

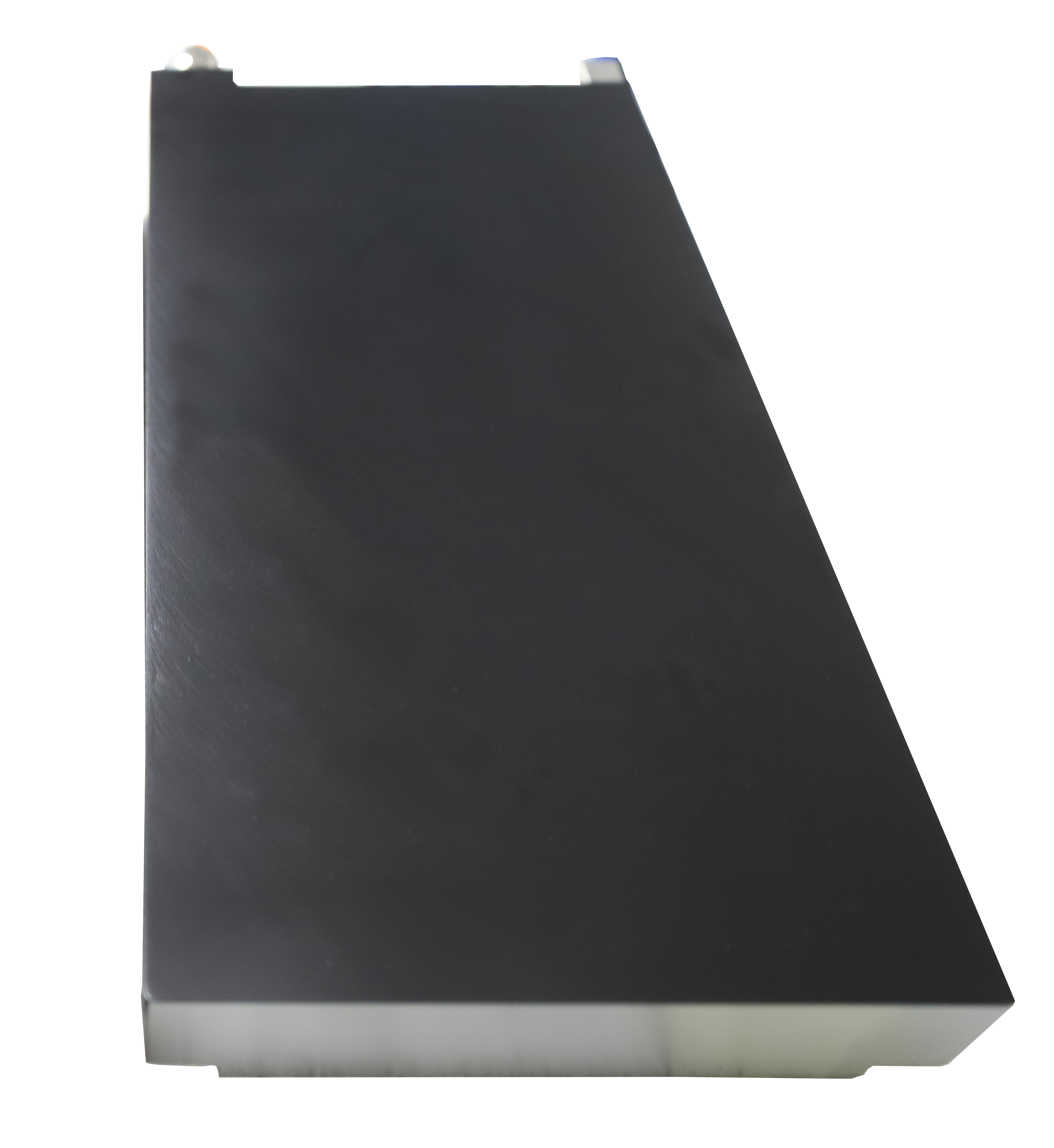

Sample
